Schneider Electric NSYCW65

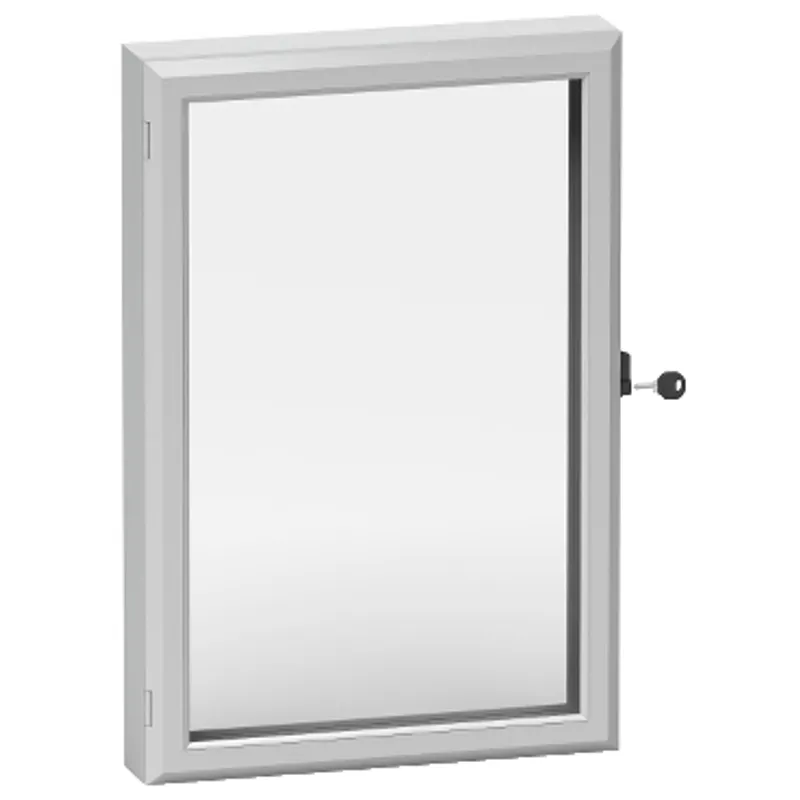

Control window with aluminum frame and 3 mm acrylic window 600 x 500 mm
- MPN
- NSYCW65
- EAN
- 3606480724541
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCW65?
Transparent acrylic and aluminium control window for installation on door or panel in PanelSeT S3D and PanelSeT CRN enclosures Opening width is 500mm, height is 600mm and depth is 77mm The kit is made up of 2 hinges, 1 lock, 1 fixings and drilling template and 1 frame with window Locked by a n° 2233X lock to prevent accidental operation of the control units by any unauthorised person Locked by a n° 2233X lock to prevent accidental operation of the control units by any unauthorised person
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Installation accessory |
| Product or component type | Window |
| For enclosure nominal dimensions | - |
| Range compatibility | PanelSeT S3D, PanelSeT CRN |
| Mounting location | Installation on door or panel |
| Device composition | 2 hinge, 1 lock, 1 fixings and drilling template, 1 frame with window |
| Material | Transparent acrylic, aluminium |
| Lock type | Closure by lock |
| Number of locks | 1 |
| Key number | 2233X |
| Height | 600 mm |
| Width | 500 mm |
| Depth | 77 mm |
| Type of installation | Indoor installation |
Packaging
| Package 1 | 1 PCE, 12.000 cm × 53.000 cm × 65.000 cm (L × W × H), 4.910 kg |
| Package 2 | 15 PAM, 120.000 cm × 100.000 cm × 155.000 cm (L × W × H), 85.650 kg |
