Schneider Electric NSYCUSP005DG
Fan kit for Connected Cooling Unit, Climasys CU
- MPN
- NSYCUSP005DG
- Category
- ClimaSys CU
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCUSP005DG?

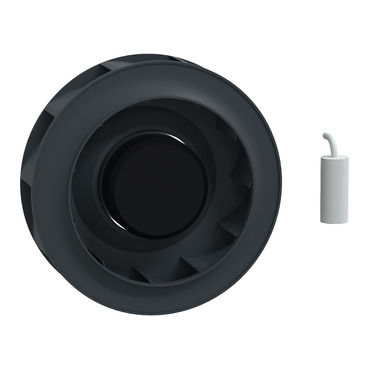

This Connected Cooling Unit Spare part is composed with 1 Centrifugal fan & 1 capacitor. Its fan power is 150W, with a nominal voltage of 230V. Its air flow is 1200m3/h. Its dimensions (HxWxD) are 110 mmx225 mmx225 mm.
Specifications
Specifications
| Range of product | ClimaSys |
| Product name | CU |
| Product or component type | Condenser fan kit, Evaporator fan kit |
| Product destination | Fan for side/top cooling unit 1250 W, Ue = 230 V, Side/top cooling unit 1650 W, Side/top cooling unit 2000 W |
| Offer type | Spare part |
| Mounting location | Internal |
| fixing mode | By screw |
| Device composition | 1 fan: inside, 1 capacitor: inside |
| Operational power in W | 150 W |
| Air flow | 1200 m3/h |
| Material | Polyamide 6 with 30 % fibre glass |
| Colour | Black |
| Height | 110 mm |
| Width | 225 mm |
| Depth | 225 mm |
| Product certifications | CE, UL |
| Quantity per set | 1 |
Packaging
| Package 1 | 1 PCE, 33.000 cm × 28.000 cm × 15.000 cm (L × W × H), 3.000 kg |
| Package 2 | 4 PAL, 120.000 cm × 45.000 cm × 29.000 cm (L × W × H), 12.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCUSP005DG: frequently asked questions
When can NSYCUSP005DG be shipped?
NSYCUSP005DG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCUSP005DG in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCUSP005DG and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCUSP005DG, subject to availability and destination.
