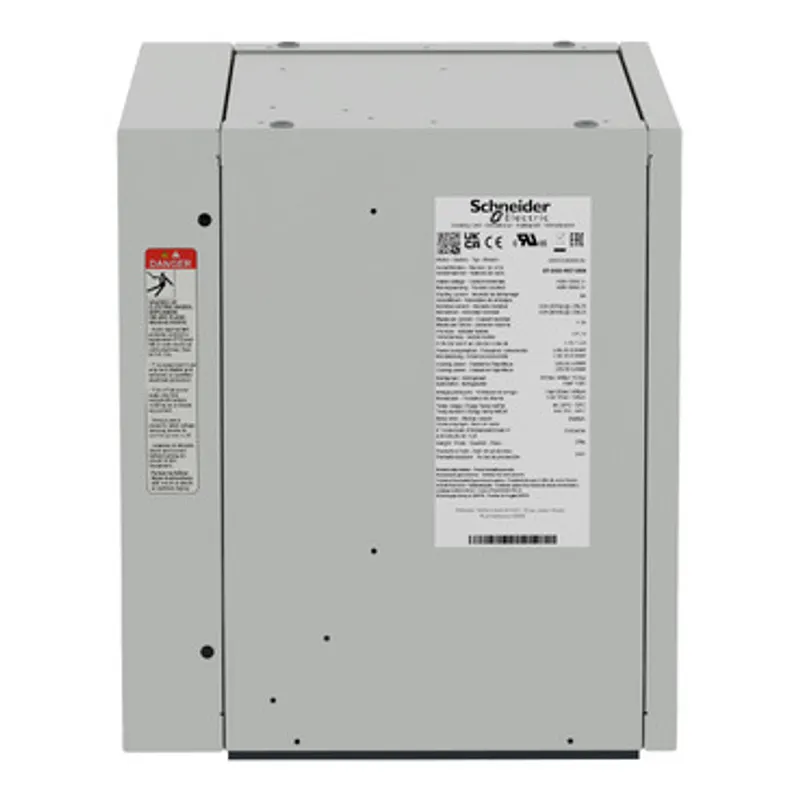

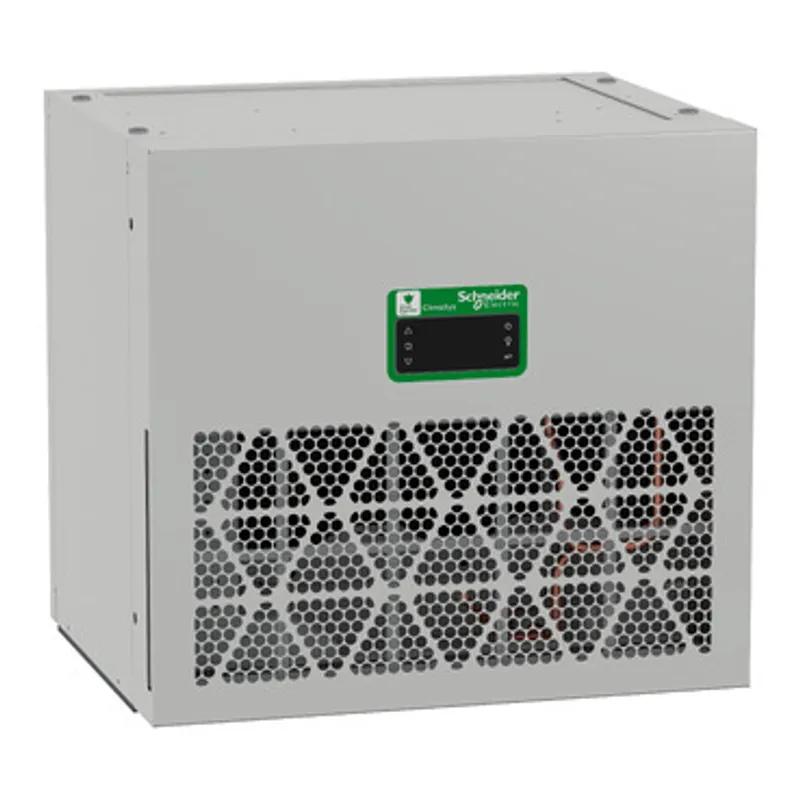

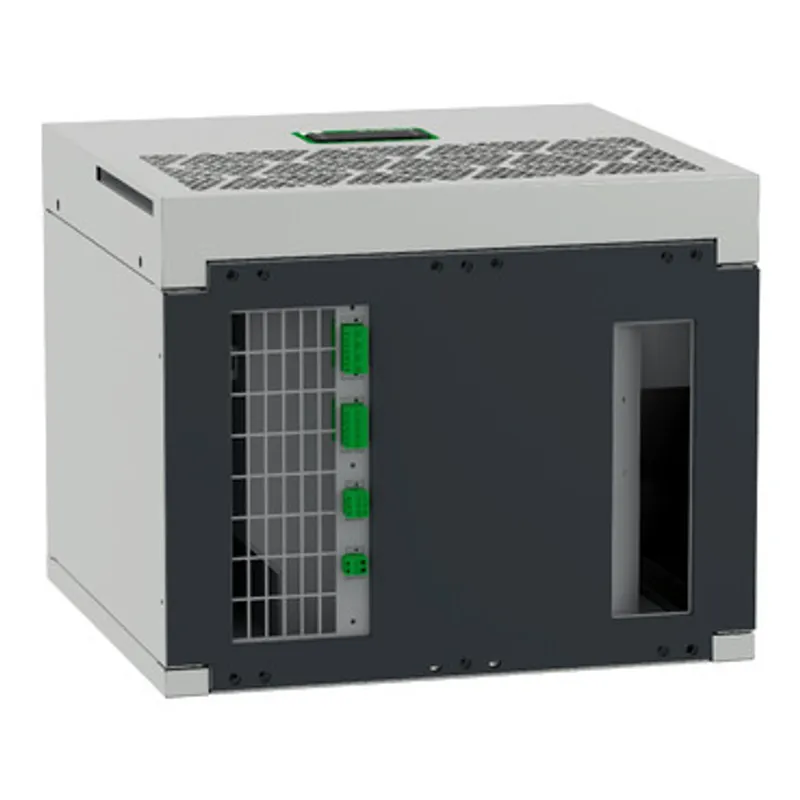

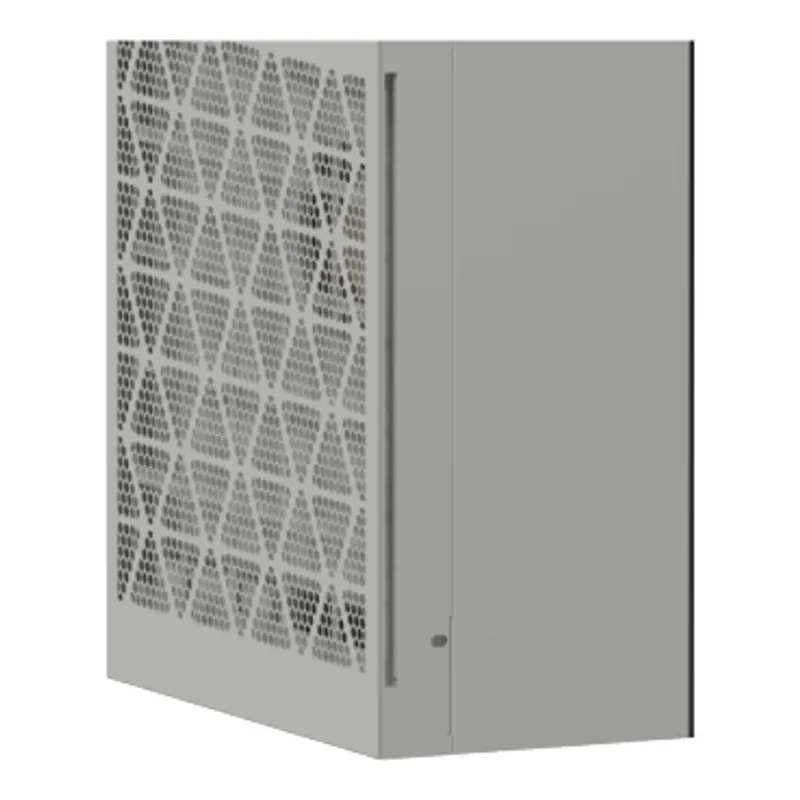

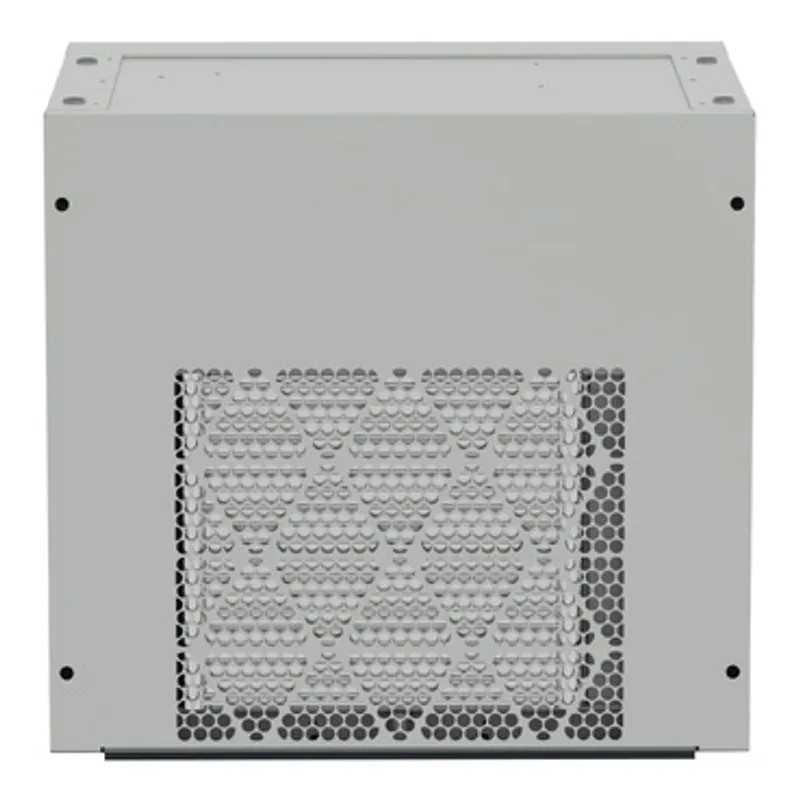

Roof Connected Cooling Unit, Climasys CU, 600W, 230V, 50/60Hz, IP54
"This new Roof Connected Cooling Unit, designed by Schneider Electric, is perfectly adapted for Automation & Control and Electrical distribution panels, installed in office and industrial indoor environments." "It’s smart, compact, and reliable." "For international business purpose, it’s compliant to IEC14511 and UL60335-1 & UL60335-2-40." "This cooling device is made by Steel, offering an internal IP54. Its cooling capacity L35-35 is 650W according to EN 14511. Its power voltage is 230V, 50/60Hz, 1 phase." "Its native Modbus connectivity is 100% compatible with any Scada system." "Remote alarms and operation data makes manufacturing process more dependable with fewer downtimes, with quicker and easier problem fixing, and electrical components expended lifespan." "The new Connected Cooling Units are also associated with Software’s and Services, like ProClima Web or IGE XAO suits." "By using these tools, in only few minutes, it’s possible to select and optimize one Thermal management solution, and to design one panel (with its enclosures, devices and Thermal solution), with 3D and 2D drawings." "Also, the Schneider Electric EcoStruxure Apps and analytics facilitates process supervision with real life data and action recommendations for more efficient operation and maintenance (preventive and predictive)."
| Range | ClimaSys |
| Product name | CU |
| mounting type | Roof of enclosure |
| Product or component type | Cooling unit |
| Installation | Indoor roof |
| Product destination | For enclosure |
| Mounting mode | By screws |
| Supply Voltage | 220...240 V 1 phase 50 Hz EN/IEC, 230 V +/- 6 % 1 phase 60 Hz UL |
| Rated Power | 650 W |
| Cooling power | 650 W 50/60 Hz L35-L35, 580 W 50/60 Hz L35-L50 |

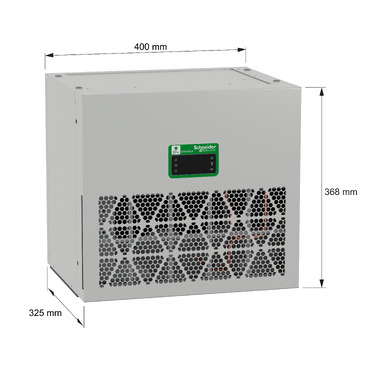

| Height | 368 mm |
| Width | 400 mm |
| Depth | 325 mm |
| [In] rated current | 2.2 A |
| Inrush current | 6 A |
| Power consumption in W | 340 W at 50/60 Hz, L35-L35, 390 W at 50/60 Hz, L35-L50 |
| Energy efficiency ratio | 1.9 |
| Control type | Electronic controller |
| Temperature setting range | 20…50 °C at 50/60 Hz |
| Ambient air temperature for operation | 20…50 °C at 50/60 Hz inside the enclosure:, 5…55 °C at 50/60 Hz outside the enclosure: |
| Noise level | 55 dB |
| Pressure | 28 bar |
| Flow rate | Internal circuit: 180 m3/h at 50/60 Hz, External circuit: 408 m3/h at 50/60 Hz |
| Net weight | 16.8 kg |
| Cooling gas type | R134a (0.120 kg) |
| Type of filter | Optional external circuit filter |

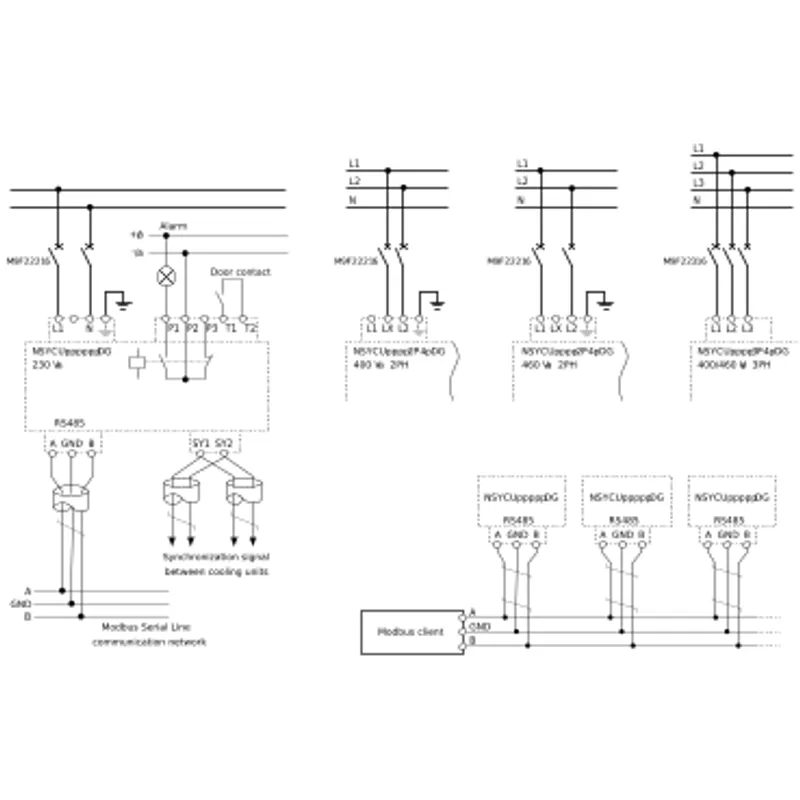

| Recommended circuit breaker protection | M9F23116 |
| Thermal protection Recommended (fuse) | 15 A (T) |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Product certifications | UL, IEC, EN |
| Directives | 2006/42/EC - machinery, 2014/30/EU - electromagnetic compatibility, 2011/65/EU - RoHS |
| Standards | EN/ISO 12100, EN 60335-1, EN 60335-2-40, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-6-3, EN/IEC 63000:2018, EN 14511 |
| IP degree of protection | IP54 conforming to IEC 60529 (on the internal circuit), IP24 conforming to IEC 60529 (on the external circuit) |
| Package 1 | 1 PCE, 48.000 cm × 41.500 cm × 35.500 cm (L × W × H), 20.000 kg |
| Package 2 | 8 P12, 120.000 cm × 80.000 cm × 100.000 cm (L × W × H), 178.000 kg |
