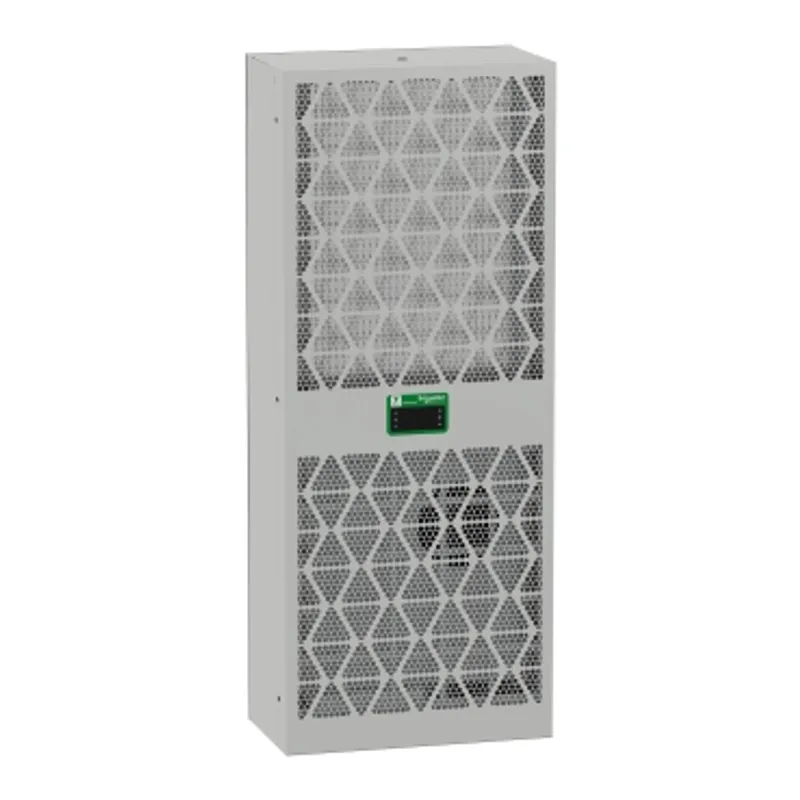

Schneider Electric NSYCU2K3P4DG

Side Connected Cooling Unit, Climasys CU, 2kW, 3 poles, 380/460V, 50/60Hz, IP55

MPN
NSYCU2K3P4DG
EAN
3606486055175
Category
ClimaSys CU
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCU2K3P4DG?

"This new Side Connected Cooling Unit, designed by Schneider Electric, is perfectly adapted for Automation & Control and Electrical distribution panels, installed in office and industrial indoor environments." "It’s smart, compact, and reliable. It can be mounted full / half-flush or surface depending on the space available in the panel or in the room." "For international business purpose, it’s compliant to IEC14511 and UL60335-1 & UL60335-2-40." "This cooling device is made by Steel, offering an internal IP55. Its cooling capacity L35-35 is 2000W according to EN 14511. Its power voltage is 380/460V, 50/60Hz, 3 phases." "Its native Modbus connectivity is 100% compatible with any Scada system." "Remote alarms and operation data makes manufacturing process more dependable with fewer downtimes, with quicker and easier problem fixing, and electrical components expended lifespan." "The new Connected Cooling Units are also associated with Software’s and Services, like ProClima Web or IGE XAO suits." "By using these tools, in only few minutes, it’s possible to select and optimize one Thermal management solution, and to design one panel (with its enclosures, devices and Thermal solution), with 3D and 2D drawings." "Also, the Schneider Electric EcoStruxure Apps and analytics facilitates process supervision with real life data and action recommendations for more efficient operation and maintenance (preventive and predictive)."

Specifications

Specifications

RangeClimaSys
Product nameCU
mounting typeSide
Product or component typeCooling unit
InstallationIndoor side
Product destinationFor enclosure
Mounting modeBy screws
Supply Voltage380...415 V 3 phases 50 Hz EN/IEC, 400/460 V +/- 6 % 3 phases 60 Hz UL
Rated Power2000 W
Cooling power2000 W 50/60 Hz L35-L35, 1900 W 50/60 Hz L35-L50
Height1000 mm
Width405 mm
Depth225 mm
[In] rated current2.5 A
Inrush current13 A
Power consumption in W900 W at 50/60 Hz, L35-L35, 1000 W at 50/60 Hz, L35-L50
Energy efficiency ratio2.2
Control typeElectronic controller
Temperature setting range20…50 °C at 50/60 Hz
Ambient air temperature for operation20…50 °C at 50/60 Hz inside the enclosure:, 5…55 °C at 50/60 Hz outside the enclosure:
Noise level72 dB
Pressure30 bar
Flow rateInternal circuit: 850 m3/h at 50/60 Hz, External circuit: 1200 m3/h at 50/60 Hz
Net weight40.4 kg
Cooling gas typeR134a (0.390 kg)
Type of filterOptional external circuit filter
Recommended circuit breaker protectionM9F23316
Thermal protection Recommended (fuse)3 phases 15 A (T)
MaterialSteel
ColourGrey (RAL 7035)
Product certificationsUL, IEC, EN
Directives2006/42/EC - machinery, 2014/30/EU - electromagnetic compatibility, 2011/65/EU - RoHS
StandardsEN/ISO 12100, EN 60335-1, EN 60335-2-40, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-6-3, EN/IEC 63000:2018, EN 14511
IP degree of protectionIP55 conforming to IEC 60529 (on the internal circuit), IP24 conforming to IEC 60529 (on the external circuit)

Packaging

Package 11 PCE, 108.000 cm × 47.500 cm × 25.500 cm (L × W × H), 46.200 kg
Package 26 P12, 120.000 cm × 80.000 cm × 122.000 cm (L × W × H), 302.200 kg
