Schneider Electric NSYCRN66200P

PanelSeT CRN plain door with mount.plate. H600xW600xD200 IP66 IK10 RAL7035

MPN
NSYCRN66200P
Category
PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

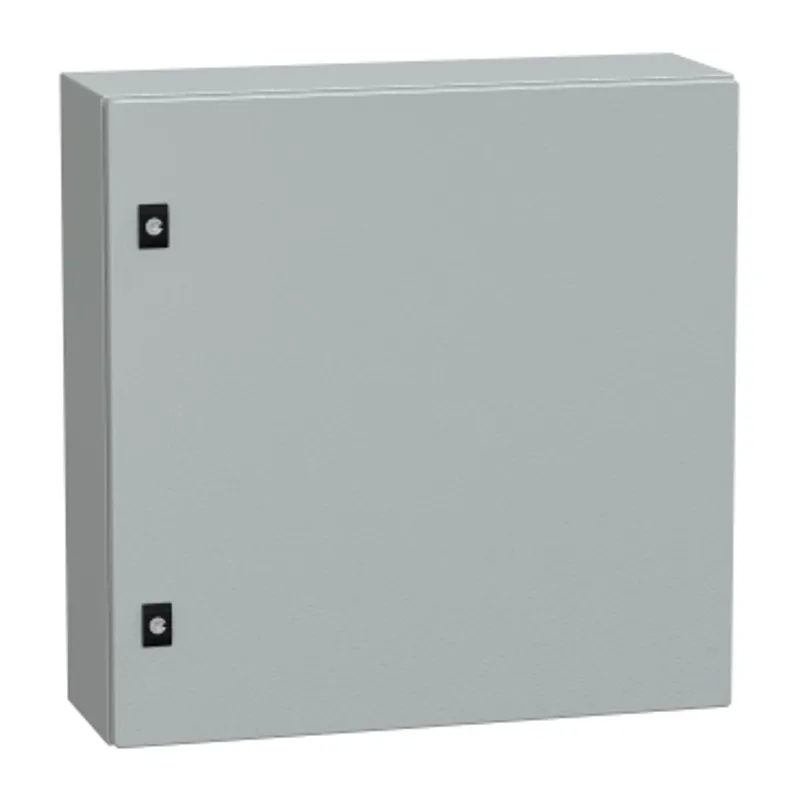

What is the Schneider Electric NSYCRN66200P?

Spacial CRN is a multi-purpose wall-mounting enclosure designed for use in harsh environments It is certified by UL, cUL, and DNV-GL, and has an IK10 (IEC62262) rating and an IP66 (IEC60529) rating, making it highly resistant to dust, water, and high impact The enclosure has a nominal height, width, and depth of 600mm, 600mm, and 200mm respectively The enclosure is made of steel and is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a cable gland plate, a plain door with a lock, and a mounting plate It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes, as well as the mounting plate by a fixing element The net weight of the enclosure is 17,939kg This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.

Specifications

Specifications

RangePanelSeT
Product namePanelSeT CRN
ApplicationMulti-purpose
CategoryCompact enclosure

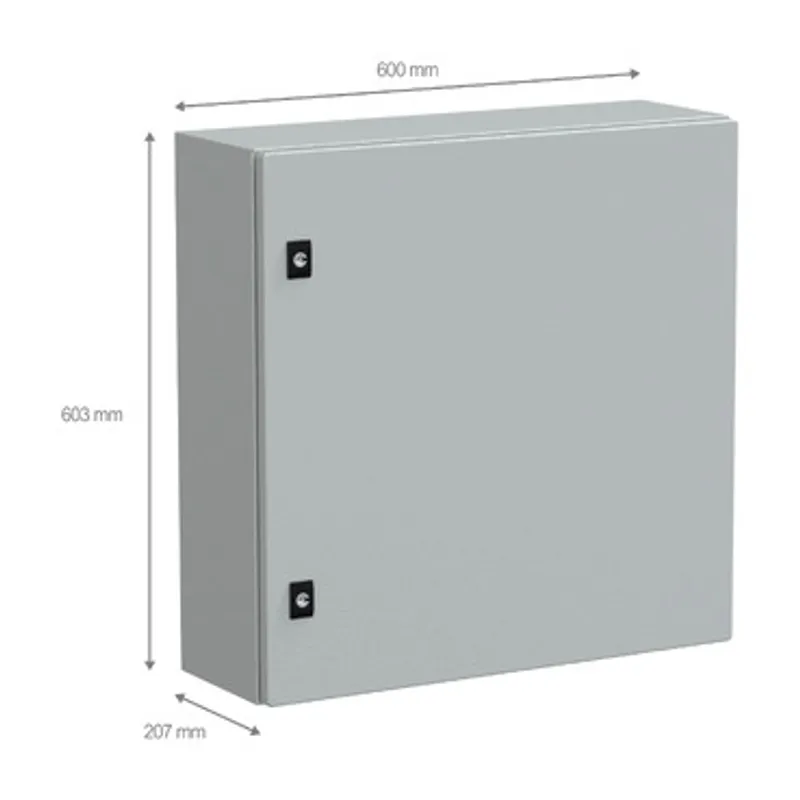

Enclosure nominal height600 mm
Enclosure nominal width600 mm
Enclosure nominal depth200 mm
Installation accessory typeWall-mounting
Device composition1 body, 1 cable gland plate, 1 door with lock, 1 mounting plate
Door typePlain
Mounting plate descriptionPlain
body typeBack welded with double profile forming a protected sealed area, Sides made from a single folded section
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 mm double-bar lock
Type of gland plateStandard
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws, Mounting plate by fixing element
MaterialEnclosure: steel, Mounting plate: galvanised steel
Surface finishEnclosure: epoxy-polyester powder
ColourEnclosure: grey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationsUL, cUL, DNV-GL
Net weight17.939 kg
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK10 conforming to IEC 62262
CoverageCore product

Packaging

Package 11 PCE, 61.500 cm × 61.000 cm × 22.000 cm (L × W × H), 18.100 kg
Package 221 PAM, 120.000 cm × 100.000 cm × 197.000 cm (L × W × H), 393.000 kg
