Schneider Electric NSYCRN65200

PanelSeT CRN plain door w/o mount.plate. H600xW500xD200 IP66 IK10 RAL7035..

MPN
NSYCRN65200
Category
PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCRN65200?

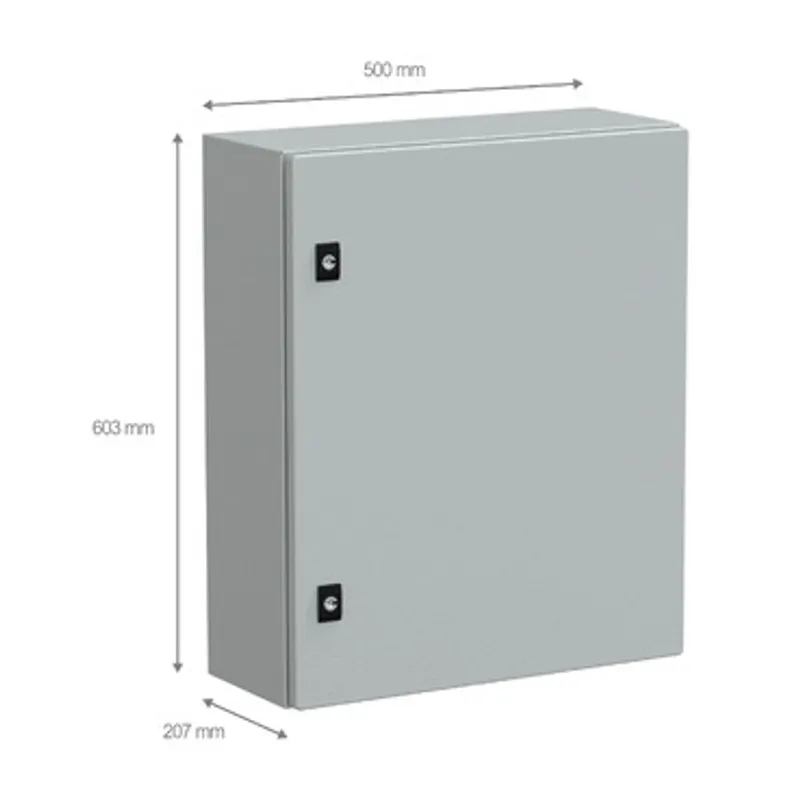

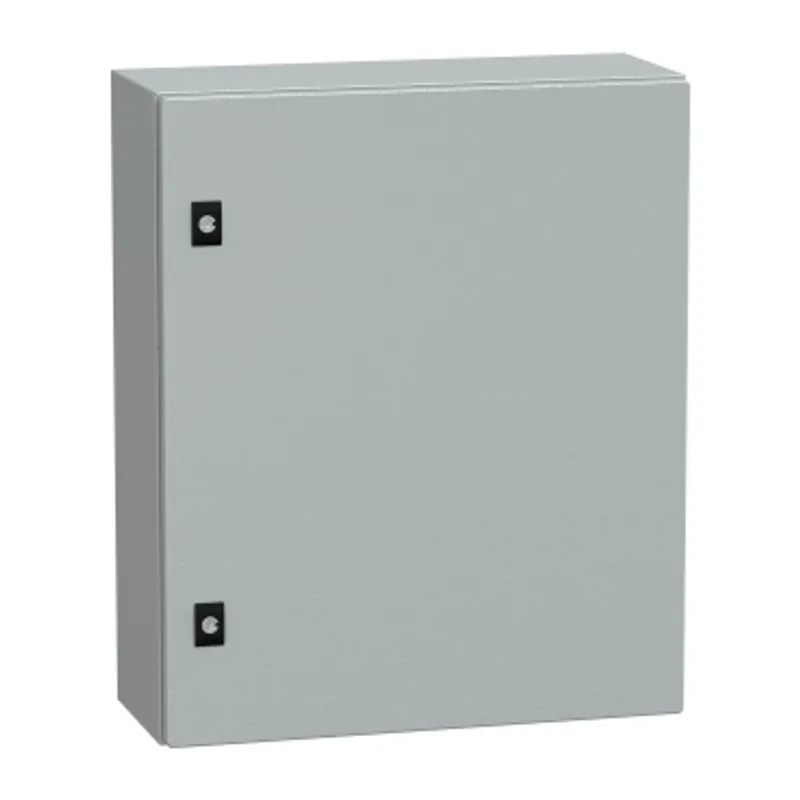

Spacial CRN steel wall-mounting enclosure is a multi-purpose enclosure designed for use in harsh environments It is certified to UL, cUL, and DNV-GL standards, and has an IK10 rating (IEC 62262) and IP66 rating (IEC 60529), making it highly impact-resistant and dust and water-resistant The enclosure has a nominal height, width, and depth of 600mm, 500mm, and 200mm, respectively It has a grey (RAL 7035) colour with an epoxy-polyester powder surface finish The enclosure consists of a body, a cable gland plate, a plain door, and a lock The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 11,182kg

Specifications

Specifications

RangePanelSeT
Product namePanelSeT CRN
ApplicationMulti-purpose
CategoryCompact enclosure
Enclosure nominal height600 mm
Enclosure nominal width500 mm
Enclosure nominal depth200 mm
Installation accessory typeWall-mounting
Device composition1 body, 1 cable gland plate, 1 door, 1 lock
Door typePlain
Mounting plate descriptionWithout mounting plate
body typeSides made from a single folded section, Back welded with double profile forming a protected sealed area
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 mm double-bar lock
Type of gland plateStandard
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws
MaterialBody: steel
Surface finishEpoxy-polyester powder
ColourGrey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationscUL, UL, DNV-GL
Net weight11.182 kg
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK10 conforming to IEC 62262
CoverageCore product

Packaging

Package 11 PCE, 50.500 cm × 21.500 cm × 61.000 cm (L × W × H), 11.182 kg
Package 230 PAM, 120.000 cm × 100.000 cm × 196.000 cm (L × W × H), 348.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYCRN65200: frequently asked questions

When can NSYCRN65200 be shipped?

NSYCRN65200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYCRN65200 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYCRN65200 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRN65200, subject to availability and destination.
