Schneider Electric NSYCRN54150P

PanelSeT CRN plain door with mount.plate. H500xW400xD150 IP66 IK10 RAL7035..

MPN
NSYCRN54150P
Category
PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCRN54150P?

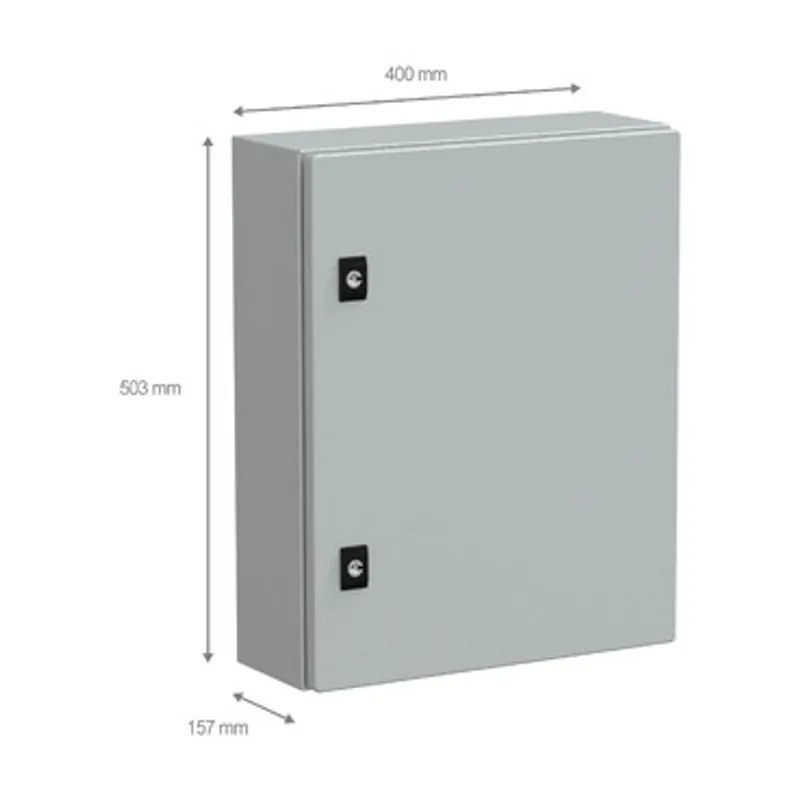

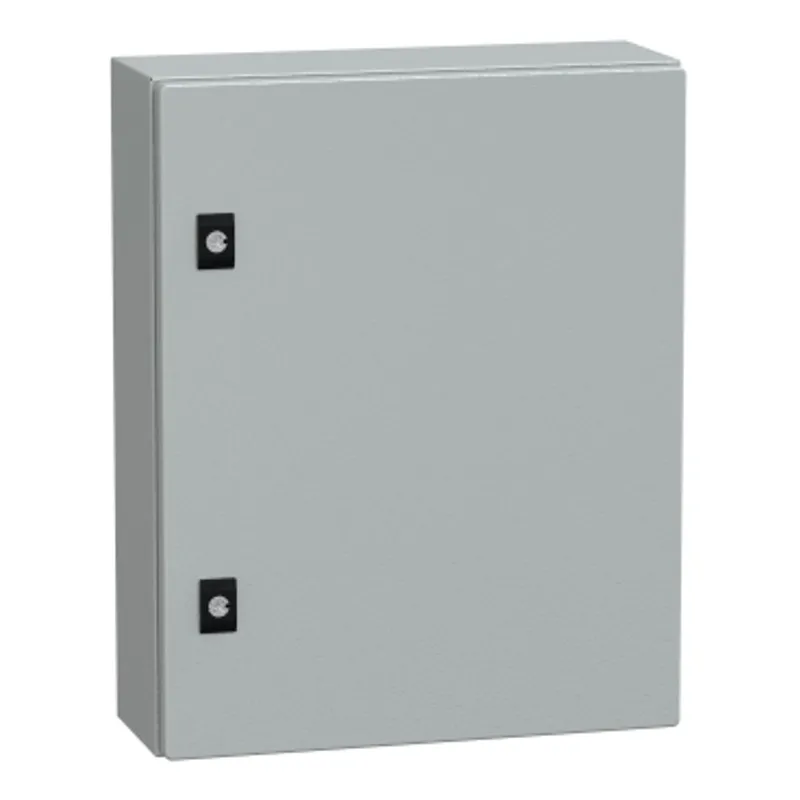

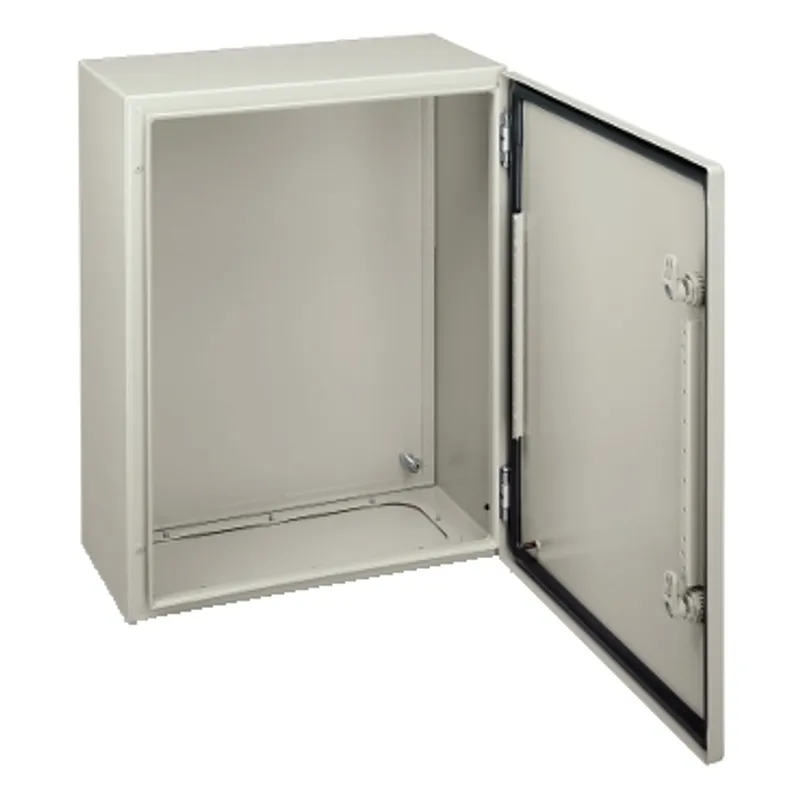

Spacial CRN is a multi-purpose wall-mounting steel enclosure designed for use in harsh environments It has an IK10 (IEC 62262) and IP66 (IEC 60529) rating, providing high resistance to impacts and dust and water This enclosure has a nominal height, width, and depth of 500mm, 400mm, and 150mm, respectively It is grey-coloured (RAL 7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a cable gland plate, a plain door with a 3mm double-bar lock, and a mounting plate made of galvanised steel It is possible to change the opening side of the door (reversible) The door, the cable gland plate, and the mounting plate can be removed for maintenance purposes The net weight of the enclosure is 9,914kg The back of the enclosure is welded with a double profile forming a protected sealed area, while the sides are made from a single folded section The enclosure is certified by UL, cUL, and DNV-GL This compact enclosure is c.UL certified.

Specifications

Specifications

RangePanelSeT
Product namePanelSeT CRN
ApplicationMulti-purpose
CategoryCompact enclosure
Enclosure nominal height500 mm
Enclosure nominal width400 mm
Enclosure nominal depth150 mm
Installation accessory typeWall-mounting
Device composition1 body, 1 cable gland plate, 1 door with lock, 1 mounting plate
Door typePlain
Mounting plate descriptionPlain
body typeBack welded with double profile forming a protected sealed area, Sides made from a single folded section
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 mm double-bar lock
Type of gland plateStandard
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws, Mounting plate by fixing element
MaterialEnclosure: steel, Mounting plate: galvanised steel
Surface finishEnclosure: epoxy-polyester powder
ColourEnclosure: grey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationsUL, cUL, DNV-GL
Net weight9.914 kg
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK10 conforming to IEC 62262
CoverageCore product

Packaging

Package 11 PCE, 41.000 cm × 16.500 cm × 51.000 cm (L × W × H), 9.914 kg
Package 256 PAM, 120.000 cm × 100.000 cm × 178.500 cm (L × W × H), 568.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYCRN54150P: frequently asked questions

When can NSYCRN54150P be shipped?

NSYCRN54150P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYCRN54150P in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYCRN54150P and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRN54150P, subject to availability and destination.
