Schneider Electric NSYCRN33200

PanelSeT CRN plain door w/o mount.plate. H300xW300xD200 IP66 IK10 RAL7035..

MPN
NSYCRN33200
Category
PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

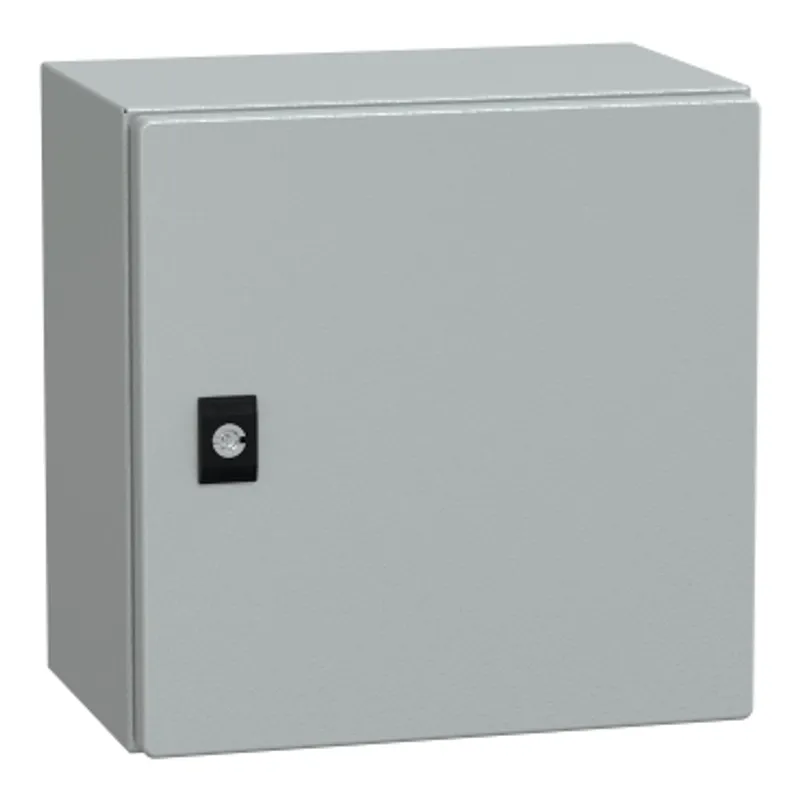

What is the Schneider Electric NSYCRN33200?

Spacial CRN steel wall-mounting enclosure is designed for multi-purpose applications, offering high impact protection with IK10 (IEC62262) and dust and water resistance with an IP66 rating (IEC60529) This enclosure has a nominal height, width, and depth of 300mm, 300mm, and 200mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a cable gland plate, a plain door, and a lock The door can be opened up to 120°, allowing easy access to the equipment inside The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 4,873kg This variant is designed with a back welded with double profile forming a protected sealed area and sides made from a single folded section The enclosure is accessible for operation from the front This compact enclosure is c.UL certified.

Specifications

Specifications

RangePanelSeT
Product namePanelSeT CRN
ApplicationMulti-purpose
CategoryCompact enclosure

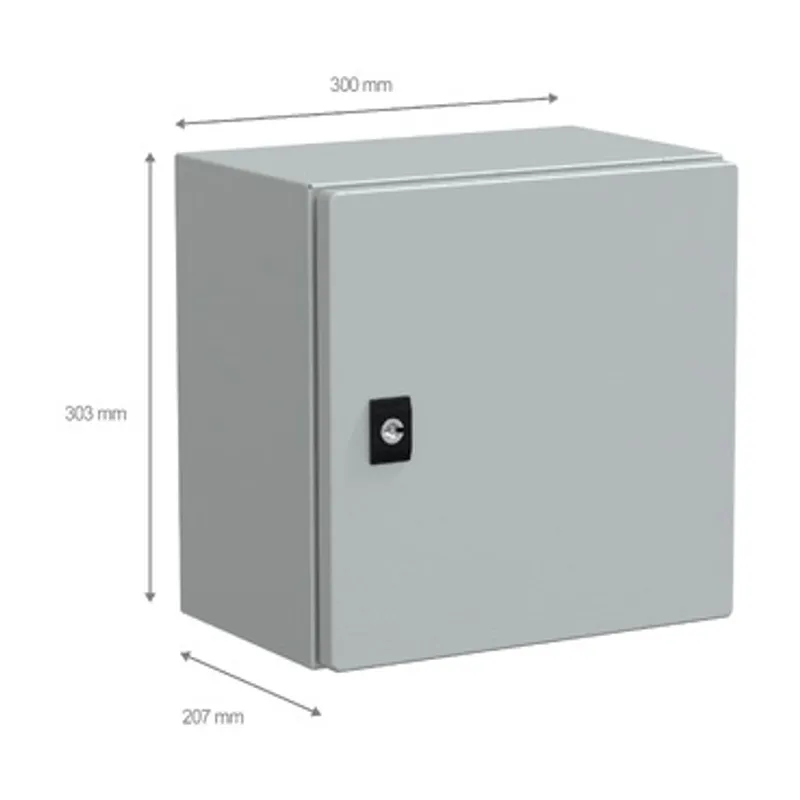

Enclosure nominal height300 mm
Enclosure nominal width300 mm
Enclosure nominal depth200 mm
Installation accessory typeWall-mounting
Device composition1 body, 1 cable gland plate, 1 door, 1 lock
Door typePlain
Mounting plate descriptionWithout mounting plate
body typeBack welded with double profile forming a protected sealed area, Sides made from a single folded section
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 mm double-bar lock
Type of gland plateStandard
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws
MaterialBody: steel
Surface finishEpoxy-polyester powder
ColourGrey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationscUL, UL, DNV-GL
Net weight4.873 kg
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK10 conforming to IEC 62262
CoverageCore product

Packaging

Package 11 PCE, 21.000 cm × 31.000 cm × 32.000 cm (L × W × H), 4.730 kg
Package 296 PAM, 120.000 cm × 100.000 cm × 208.000 cm (L × W × H), 470.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYCRN33200: frequently asked questions

When can NSYCRN33200 be shipped?

NSYCRN33200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYCRN33200 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYCRN33200 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRN33200, subject to availability and destination.

More Schneider Electric parts

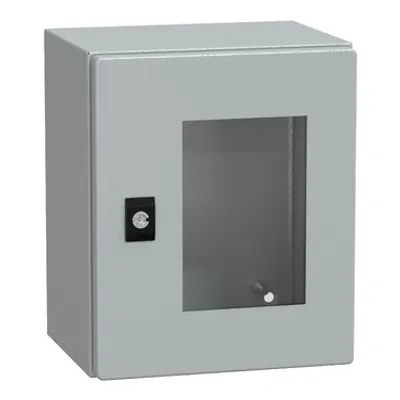

Schneider Electric NSYCRN325200T – PanelSeT CRN tspt door w/o mount.plate. H300xW250xD200 IP66 IK08 RAL7035..
Schneider Electric
NSYCRN325200T

PanelSeT CRN tspt door w/o mount.plate. H300xW250xD200 IP66 IK08 RAL7035..

Schneider Electric NSYCRN33150 – PanelSeT CRN plain door w/o mount.plate. H300xW300xD150 IP66 IK10 RAL7035..
Schneider Electric
NSYCRN33150

PanelSeT CRN plain door w/o mount.plate. H300xW300xD150 IP66 IK10 RAL7035..

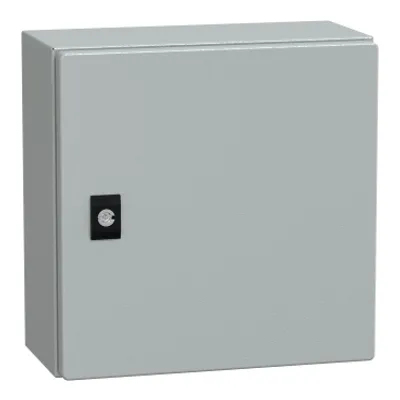

Schneider Electric NSYCRN33150P – PanelSeT CRN plain door with mount.plate. H300xW300xD150 IP66 IK10 RAL7035..
Schneider Electric
NSYCRN33150P

PanelSeT CRN plain door with mount.plate. H300xW300xD150 IP66 IK10 RAL7035..

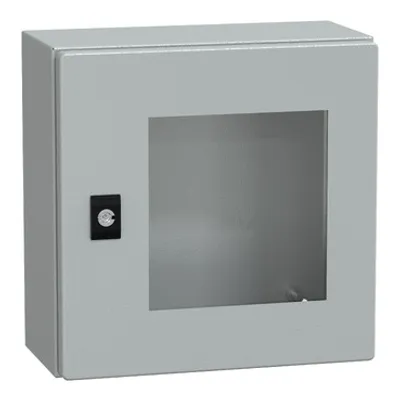

Schneider Electric NSYCRN33150T – PanelSeT CRN tspt door w/o mount.plate. H300xW300xD150 IP66 IK08 RAL7035..
Schneider Electric
NSYCRN33150T

PanelSeT CRN tspt door w/o mount.plate. H300xW300xD150 IP66 IK08 RAL7035..

Schneider Electric NSYCRN33200P – PanelSeT CRN plain door with mount.plate. H300xW300xD200 IP66 IK10 RAL7035..
Schneider Electric
NSYCRN33200P

PanelSeT CRN plain door with mount.plate. H300xW300xD200 IP66 IK10 RAL7035..

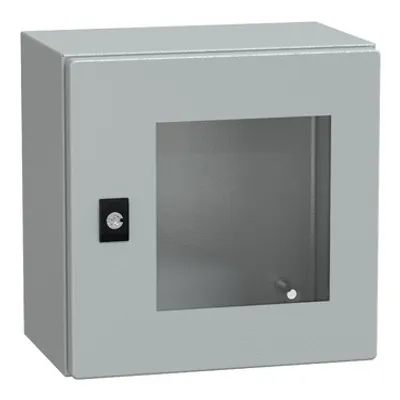

Schneider Electric NSYCRN33200T – PanelSeT CRN tspt door w/o mount.plate. H300xW300xD200 IP66 IK08 RAL7035..
Schneider Electric
NSYCRN33200T

PanelSeT CRN tspt door w/o mount.plate. H300xW300xD200 IP66 IK08 RAL7035..

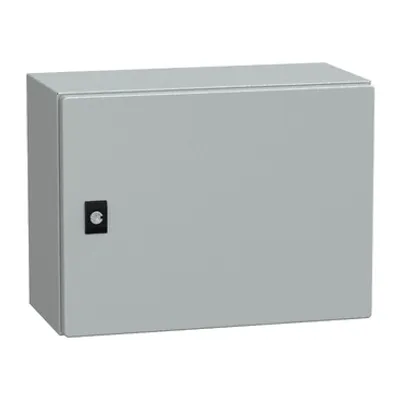

Schneider Electric NSYCRN34200 – PanelSeT CRN plain door w/o mount.plate. H300xW400xD200 IP66 IK10 RAL7035..
Schneider Electric
NSYCRN34200

PanelSeT CRN plain door w/o mount.plate. H300xW400xD200 IP66 IK10 RAL7035..

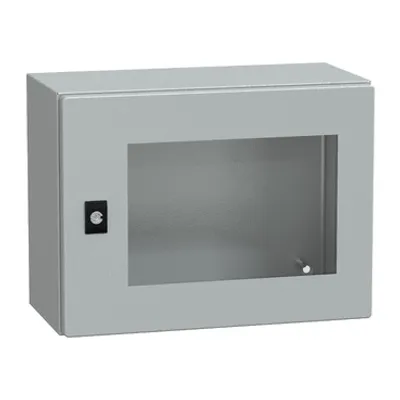

Schneider Electric NSYCRN34200T – PanelSeT CRN tspt door w/o mount.plate. H300xW400xD200 IP66 IK08 RAL7035..
