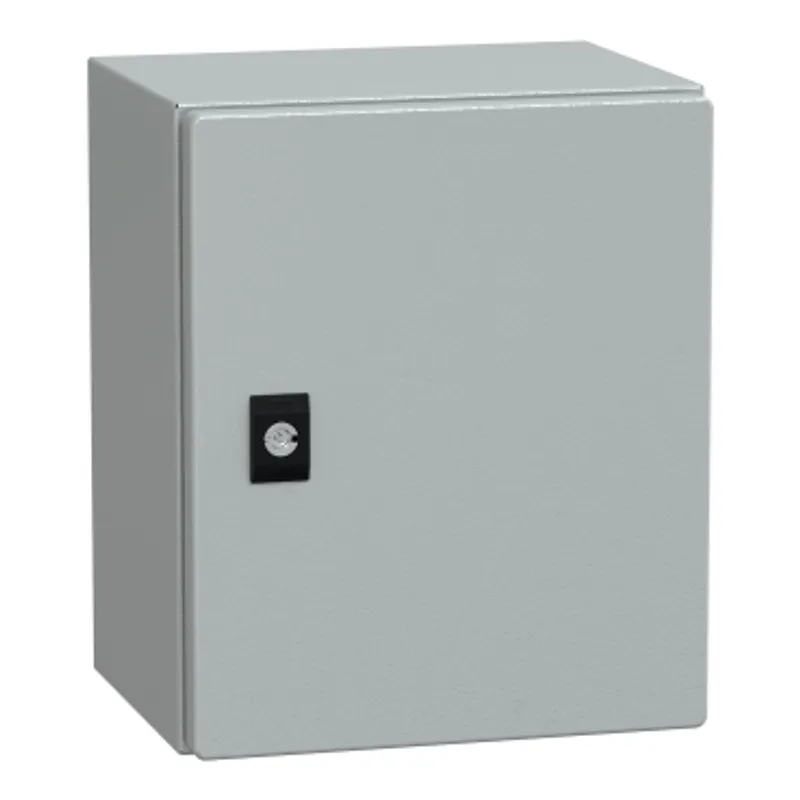

PanelSeT CRN plain door with mount.plate. H300xW250xD200 IP66 IK10 RAL7035..
Spacial CRN steel wall-mounting enclosure is designed for multi-purpose applications and is suitable for use in harsh environments It has an IK10 (IEC 62262) rating and an IP66 rating (IEC 60529) for high impact resistance and protection against dust and water The enclosure has a nominal height, width, and depth of 300mm, 250mm, and 200mm, respectively The enclosure is grey-coloured (RAL 7035) with an epoxy-polyester powder surface finish It consists of a body, a cable gland plate, a plain door with a 3mm double-bar lock, and a mounting plate It is possible to change the opening side of the door (reversible) The door, cable gland plate, and mounting plate can be removed for maintenance purposes The mounting plate is made of galvanised steel The net weight of the enclosure is 5,13kg This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
| Range | PanelSeT |
| Product name | PanelSeT CRN |
| Application | Multi-purpose |
| Category | Compact enclosure |

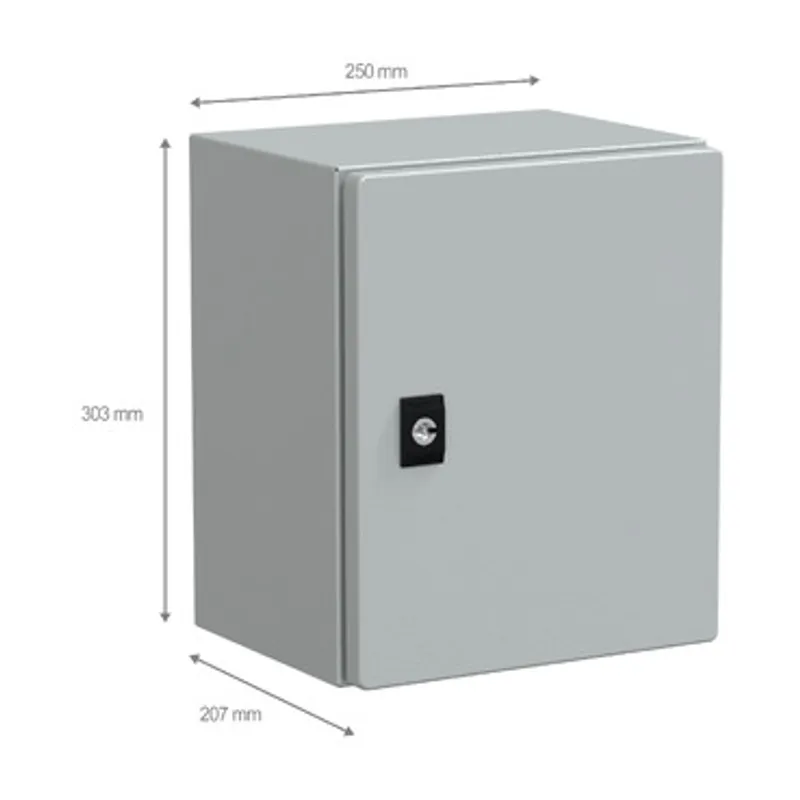

| Enclosure nominal height | 300 mm |
| Enclosure nominal width | 250 mm |
| Enclosure nominal depth | 200 mm |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 cable gland plate, 1 door with lock, 1 mounting plate |
| Door type | Plain |
| Mounting plate description | Plain |
| body type | Sides made from a single folded section, Back welded with double profile forming a protected sealed area |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Type of gland plate | Standard |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws, Mounting plate by fixing element |
| Material | Enclosure: steel, Mounting plate: galvanised steel |
| Surface finish | Enclosure: epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | cUL, UL, DNV-GL |
| Net weight | 5.13 kg |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Coverage | Core product |
| Package 1 | 1 PCE, 22.000 cm × 26.500 cm × 32.500 cm (L × W × H), 5.054 kg |
| Package 2 | 48 PAM, 120.000 cm × 100.000 cm × 93.000 cm (L × W × H), 257.600 kg |
