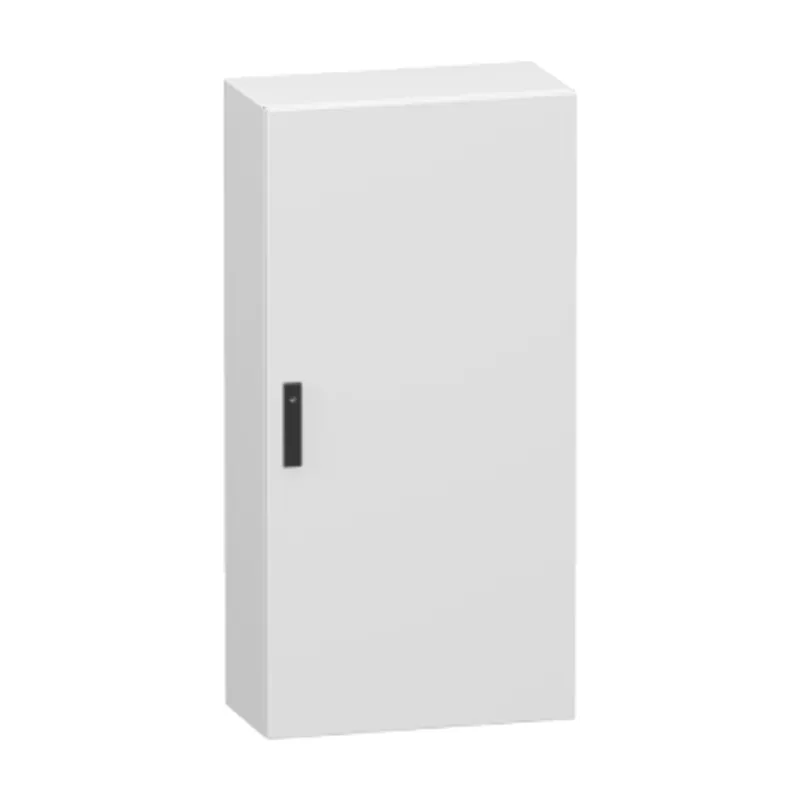

Schneider Electric NSYCRN126300

Plain steel door, PanelSeT CRN, without mounting plate, 1200x600x300mm, IP66, IK10, RAL7035

MPN
NSYCRN126300
Category
PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCRN126300?

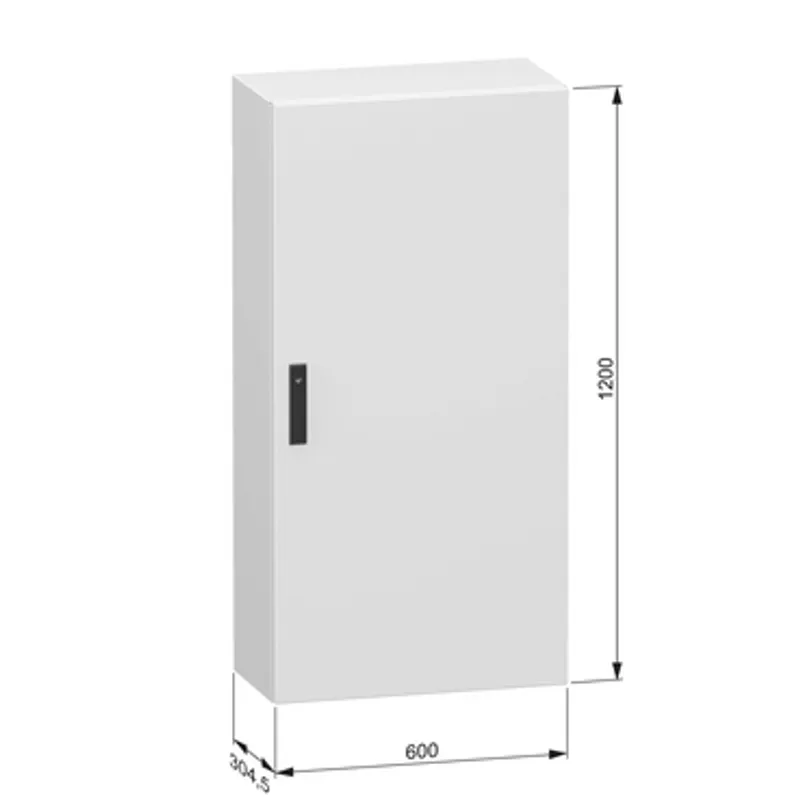

This PanelSeT CRN is a wall-mounting enclosure that is suitable for multi-purpose applications. It has a nominal height, width, and depth of 1200 mm, 600 mm and 300 mm, respectively. The body of the enclosure are made of galvanized steel for durability. The door is made of steel sheets, has an aperture up to 120 degrees and is reversible, meaning it can be opened from either side. It has a 3-mm standard double-bar lock. An epoxy-polyester powder finish provides a smooth appearance. The enclosure has a grey (RAL 7035) color. The enclosure has IP66 and UL Types 1, 2, 3, 3R, 5, 12 and 13 rating, which makes it resistant to dust, water and oil ingress. The enclosure has IP66 and UL Types 1, 2, 3, 3R, 5, 12 and 13 rating, which makes it resistant to dust, water and oil ingress.

Specifications

Specifications

RangePanelSeT
Product namePanelSeT CRN
ApplicationMulti-purpose
CategoryCompact enclosure
Enclosure nominal height1200 mm
Enclosure nominal width600 mm
Enclosure nominal depth300 mm
Installation accessory typeWall-mounting
Device composition1 body, 1 cable gland plate, 1 door, 1 lock
Door typePlain
Mounting plate descriptionWithout mounting plate
body typeSingle piece body
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 points lock, 5 mm double-bar
Type of gland plateStandard
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws
MaterialBody: steel
Surface finishEpoxy-polyester powder
ColourGrey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationsUL, cUL
Net weight37.5 kg
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK10 conforming to IEC 62262
CoverageCore product

Packaging

Package 11 PCE, 121.500 cm × 61.500 cm × 31.500 cm (L × W × H), 35.100 kg
Package 26 PAM, 120.000 cm × 100.000 cm × 136.000 cm (L × W × H), 227.500 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYCRN126300: frequently asked questions

When can NSYCRN126300 be shipped?

NSYCRN126300 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYCRN126300 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYCRN126300 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRN126300, subject to availability and destination.

More Schneider Electric parts

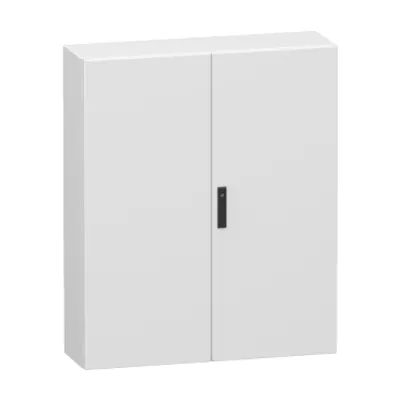

Schneider Electric NSYCRN1210300D – Double plain steel door, PanelSeT CRN, without mounting plate, 1200x1000x300mm, IP55, IK10, RAL7035
Schneider Electric
NSYCRN1210300D

Double plain steel door, PanelSeT CRN, without mounting plate, 1200x1000x300mm, IP55, IK10, RAL7035

Schneider Electric NSYCRN1210400D – Double plain steel door, PanelSeT CRN, without mounting plate, 1200x1000x400mm, IP55, IK10, RAL7035
Schneider Electric
NSYCRN1210400D

Double plain steel door, PanelSeT CRN, without mounting plate, 1200x1000x400mm, IP55, IK10, RAL7035

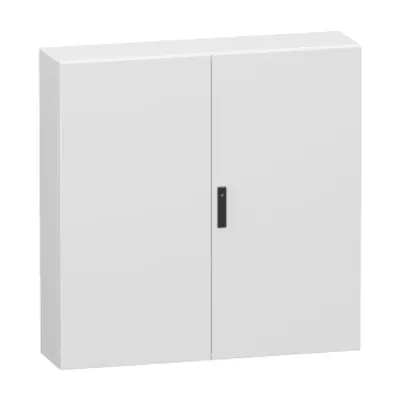

Schneider Electric NSYCRN1212300D – Double plain steel door, PanelSeT CRN, without mounting plate, 1200x1200x300mm, IP55, IK10, RAL7035
Schneider Electric
NSYCRN1212300D

Double plain steel door, PanelSeT CRN, without mounting plate, 1200x1200x300mm, IP55, IK10, RAL7035

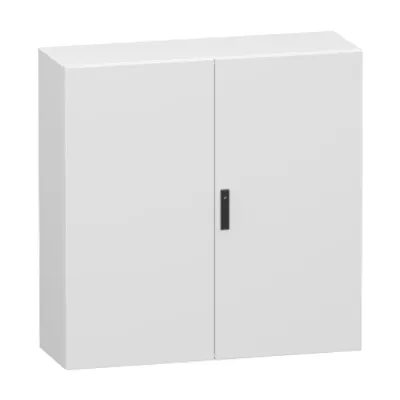

Schneider Electric NSYCRN1212400D – Double plain steel door, PanelSeT CRN, without mounting plate, 1200x1200x400mm, IP55, IK10, RAL7035
Schneider Electric
NSYCRN1212400D

Double plain steel door, PanelSeT CRN, without mounting plate, 1200x1200x400mm, IP55, IK10, RAL7035

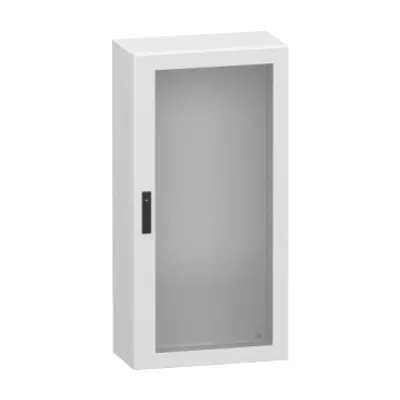

Schneider Electric NSYCRN126300T – Glazed steel door, PanelSeT CRN, without mounting plate, 1200x600x300mm, IP66, IK08, RAL7035
Schneider Electric
NSYCRN126300T

Glazed steel door, PanelSeT CRN, without mounting plate, 1200x600x300mm, IP66, IK08, RAL7035

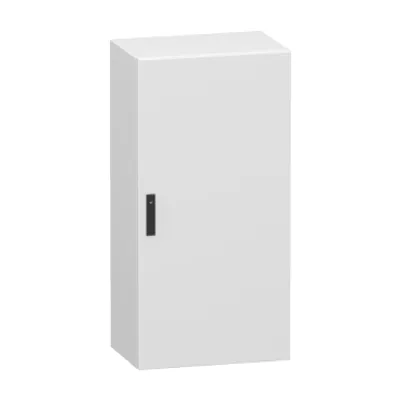

Schneider Electric NSYCRN126400 – Plain steel door, PanelSeT CRN, without mounting plate, 1200x600x400mm, IP66, IK10, RAL7035
