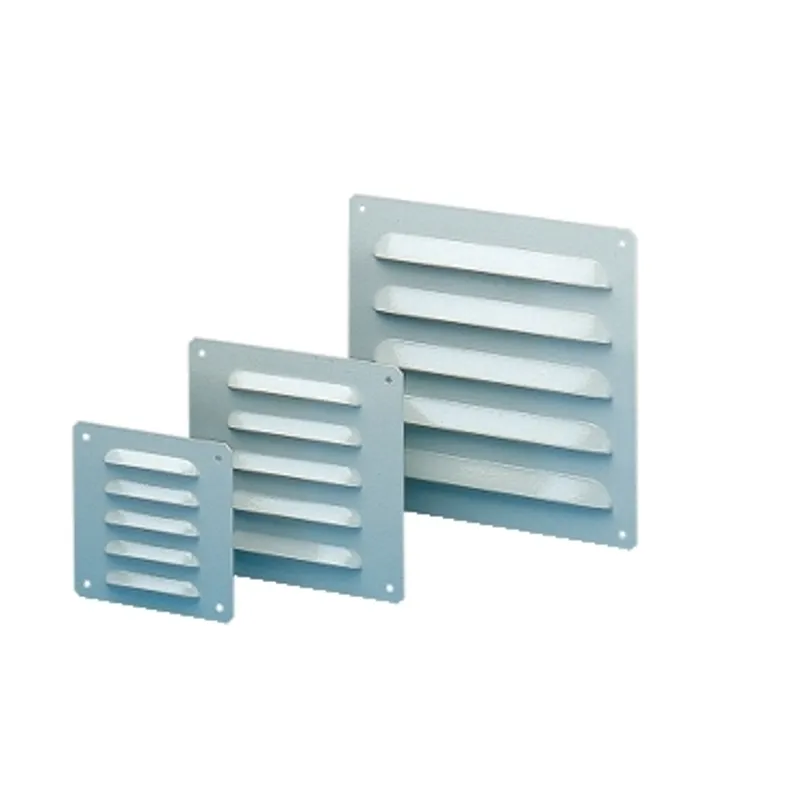

Metal outlet grille cut-out 95 x 90mm ext dim 120x120mm IP23
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ClimaSys CA |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 193 kg |
Shipping & availability
When can NSYCAG104X95LM be shipped?
NSYCAG104X95LM is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCAG104X95LM in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCAG104X95LM and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCAG104X95LM, subject to availability and destination.
Metal louvre plate 120 x 120mm made from steel for ClimaSys CV enclosures The kit is made of 1 metal louvre The external width is 120mm Ingress protection rating (according to IEC 60529) is IP23 Fixing by screws on sides of enclosure Cut-out dimensions is 95 x 104mm Painted in grey (RAL 7035)
Specifications
Specifications
| Range | ClimaSys |
| Product | ClimaSys CA |
| Range compatibility | ClimaSys ClimaSys CV |
| Product or component type | Metal louvre plate |
| Accessory / separate part category | Thermal management accessory |
| Accessory / separate part destination | ClimaSys ventilation system |
| Mounting location | Sides of enclosure |
| fixing mode | By screws |
| Device composition | 1 metal louvre |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Cut-out dimensions | 95 x 104 mm |
| Height | External: 120 mm |
| Width | External: 120 mm |
| IP degree of protection | IP23 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.000 cm |
| Package 1 Width | 12.000 cm |
| Package 1 Length | 0.300 cm |
| Package 1 Weight | 193.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 40.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 20.000 cm |
| Package 2 Weight | 10.240 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 800 |
| Package 3 Height | 53.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 175.840 kg |
| Warranty | 18 months |
