Schneider Electric NSYBVS600
Vertical bar support up to 3200 A 600x600 mm
- MPN
- NSYBVS600
- EAN
- 3606480063008
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYBVS600?

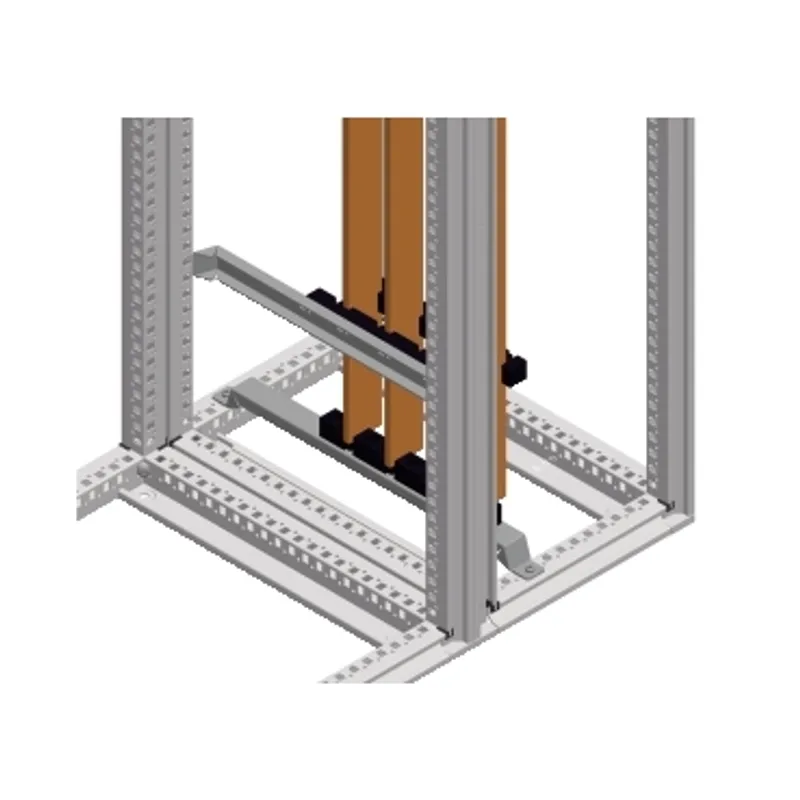

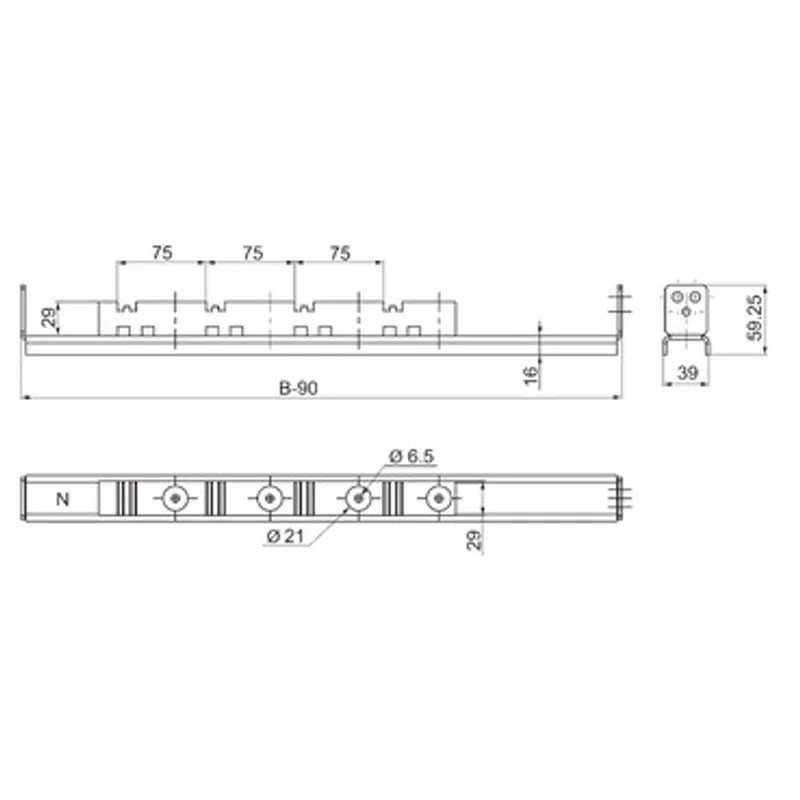

"This is a vertical bar support compatible with PrismaSeT, PanelSeT and PanelSeT electrical enclosures. The support is prepared for fixing bars in horizontal position." "The busbar support fixing centers width is 550mm and its nominal width is 600mm. The depth is 39mm. The busbar distance is 75mm."
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Busbar accessory |
| Product or component type | Busbar support |
| Anwendung | Multi-purpose, Prisma application |
| Enclosure nominal dimensions | - |
| Mounting location | On structure of enclosure |
| Busbar position | Vertical |
| Range compatibility | PanelSeT PanelSeT SF, Linergy Linergy LGYE, Linergy Linergy BS, Prisma Prisma PH |
| Cubicle-device connection | Linergy LGYE lateral busbar - fixed, Linergy BS lateral busbar - fixed |

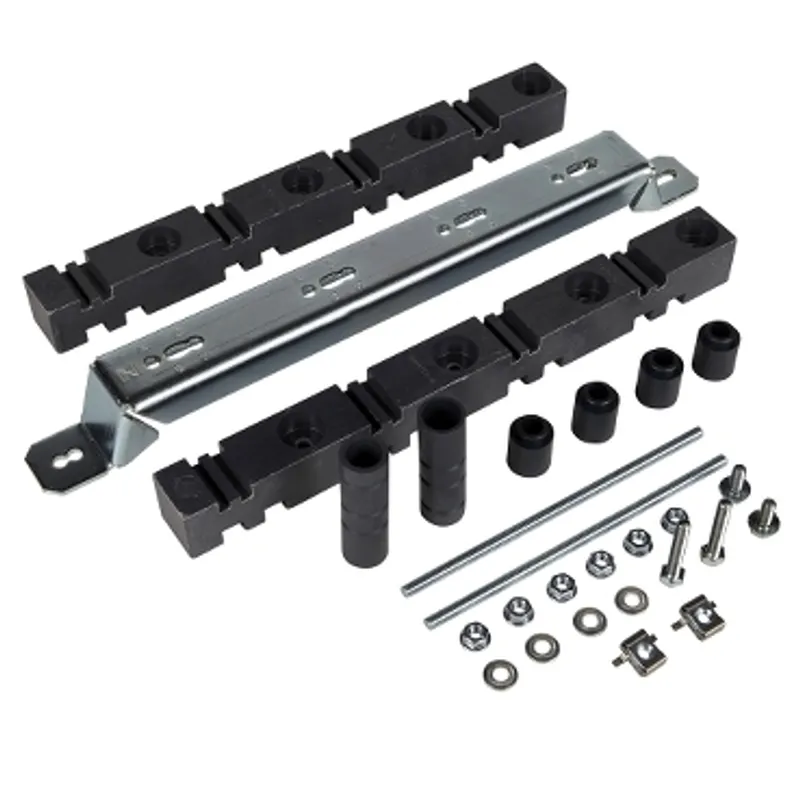

| Device composition | Fixing elements, 1 metal support, 2 insulating bar support |
| Quantity per set | Set of 1 |
| Material | Bar support: plastic, Metal support: steel |
| Fixing mode | By fixing element |
| Width | Fixing centers: 550 mm, Nominal: 600 mm |
| Depth | 39 mm |
| [In] rated current | 3200 A |
Packaging
| Package 1 | 1 PCE, 58.000 cm × 10.000 cm × 7.000 cm (L × W × H), 1.772 kg |
| Package 2 | 50 P12, 80.000 cm × 120.000 cm × 48.000 cm (L × W × H), 102.000 kg |
