Schneider Electric NSYBP126

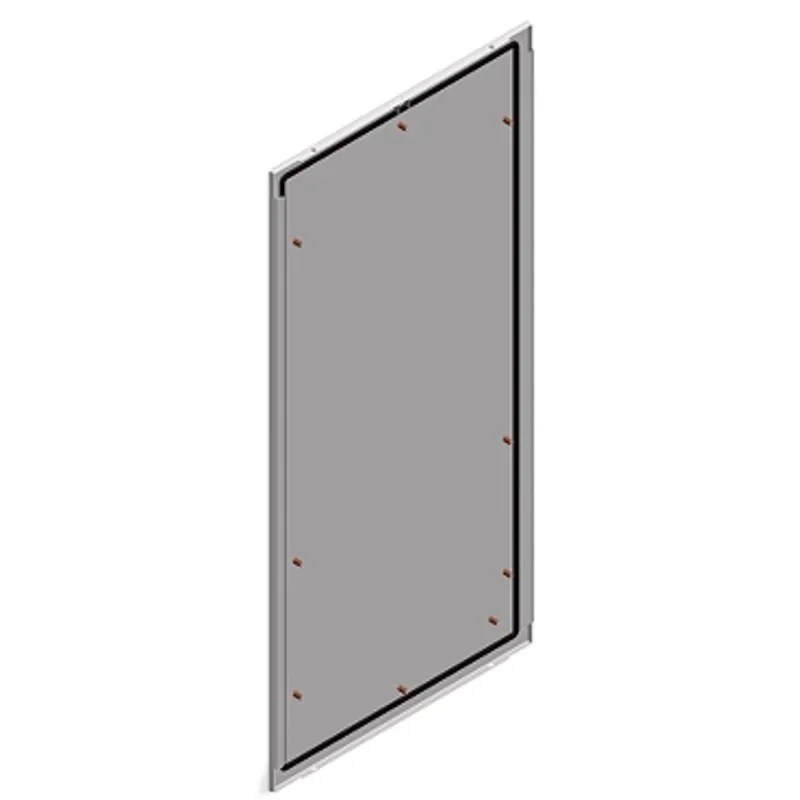

Spacial SF rear panel external fixing - 1200x600 mm
- MPN
- NSYBP126
- EAN
- 3606485119137
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSYBP126 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYBP126?
Rear panel made from grey steel (RAL 7035) for Spacial SF enclosures The nominal width is 600mm The nominal height is 1200mm The kit is made up of fixing elements and 1 rear panel Anti-corrosion protection is ensured by an epoxy-polyester powder coating
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Rear panel |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - |
| Mounting location | Rear of enclosure |
| Quantity per set | Set of 1 |
| Range compatibility | PanelSeT PanelSeT SF |
| Device composition | Fixing elements, 1 rear panel |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By screws - screw type captive - from the outside of enclosure location |
| Height | Nominal: 1200 mm |
| Width | Nominal: 600 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 4.000 cm × 58.500 cm × 122.000 cm (L × W × H), 10.000 kg |
| Package 2 | 10 PAL, 125.000 cm × 80.000 cm × 52.000 cm (L × W × H), 113.000 kg |
