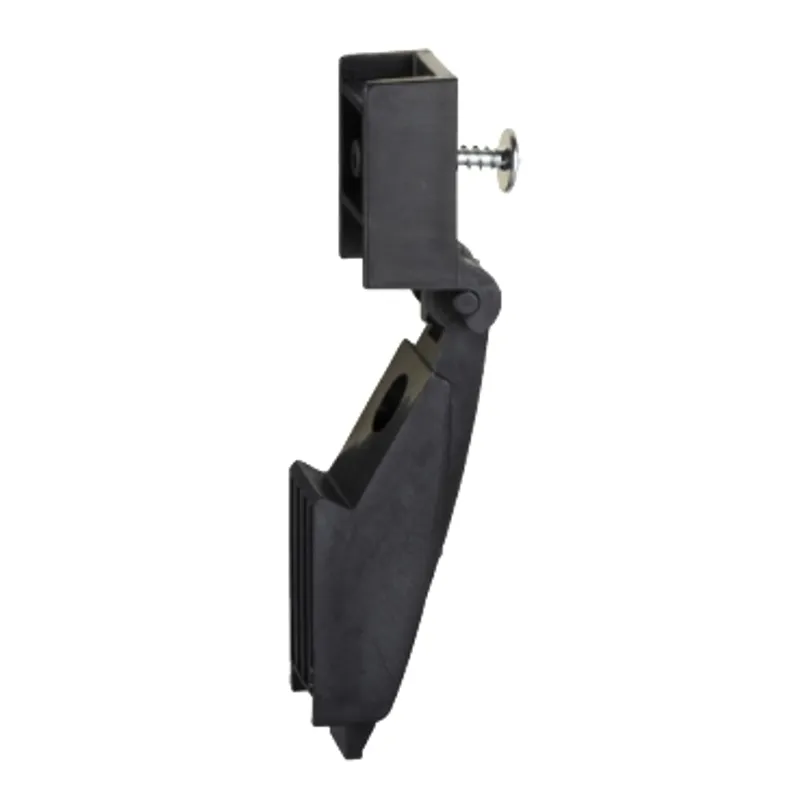

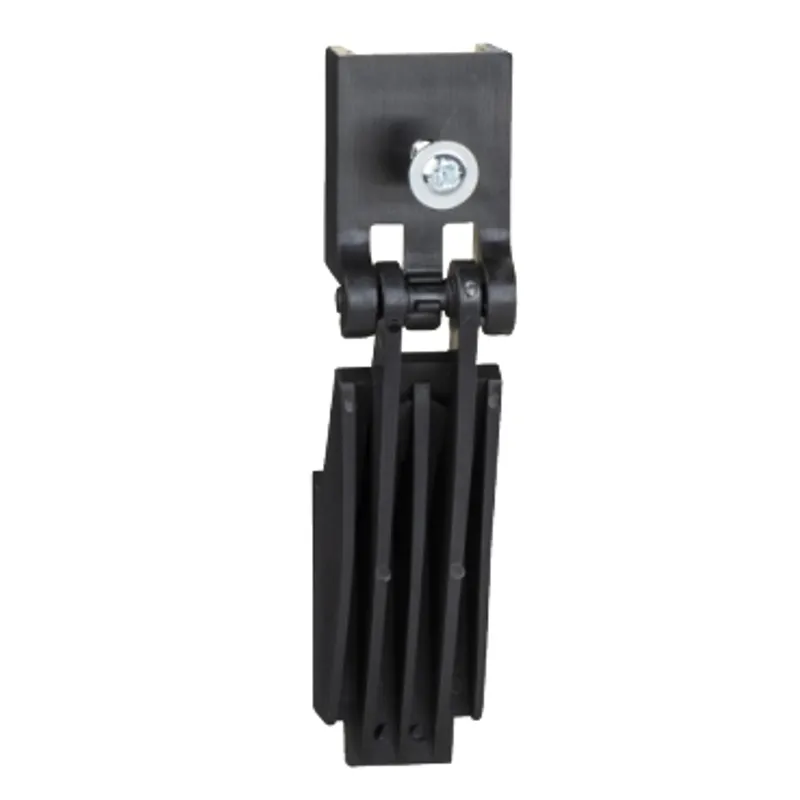

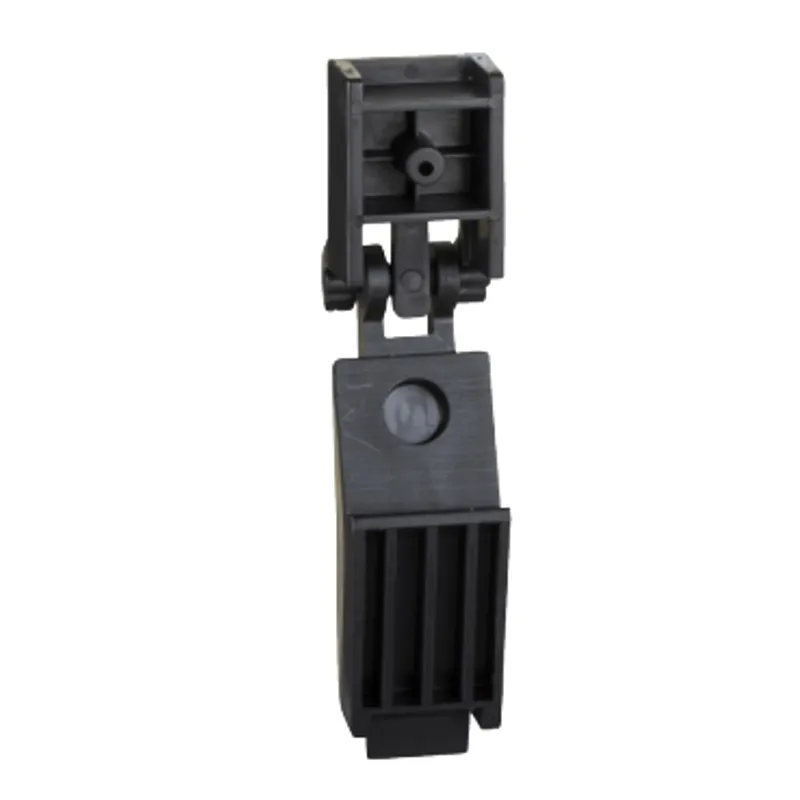

Schneider Electric NSYAEDRS3DPA6

Door retainer system for PanelSeT S3D encl., Cannot be mounted on encl. H>400

MPN
NSYAEDRS3DPA6
EAN
3606480168796
Category
PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYAEDRS3DPA6?

Schneider Electric Door retainer system for PanelSeT S3D encl., Cannot be mounted on encl. H>400, manufacturer part number NSYAEDRS3DPA6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

RangePanelSeT
Product or component typeDoor retainer
ApplicationMulti-purpose
Nominal dimensions of the housing-
Mounting locationOn door reinforcement frame
Range compatibilityPanelSeT S3D enclosure, PanelSeT cannot be installed on 19" mounting plates, PanelSeT CRNG version, PanelSeT enclosures with a height of less than 400 mm
Device composition1 x retainer
MaterialPolyamide 6
ColourBlack
Fixing modeClipped - on door reinforcement frame location
AdjustmentAt the required height for on door reinforcement frame
Operating angle120 °
Opening mechanismHolding system
Net weight0.013 kg

Packaging

Package 11 PCE, 10.000 cm × 8.000 cm × 2.000 cm (L × W × H), 11.000 g
Package 2300 CAR, 40.000 cm × 30.000 cm × 20.000 cm (L × W × H), 3.906 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYAEDRS3DPA6: frequently asked questions

When can NSYAEDRS3DPA6 be shipped?

NSYAEDRS3DPA6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYAEDRS3DPA6 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYAEDRS3DPA6 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYAEDRS3DPA6, subject to availability and destination.
