Schneider Electric NSY2SP225
Spacial SF external fixing side panels - 2200x500 mm
- MPN
- NSY2SP225
- EAN
- 3606485119984
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSY2SP225 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

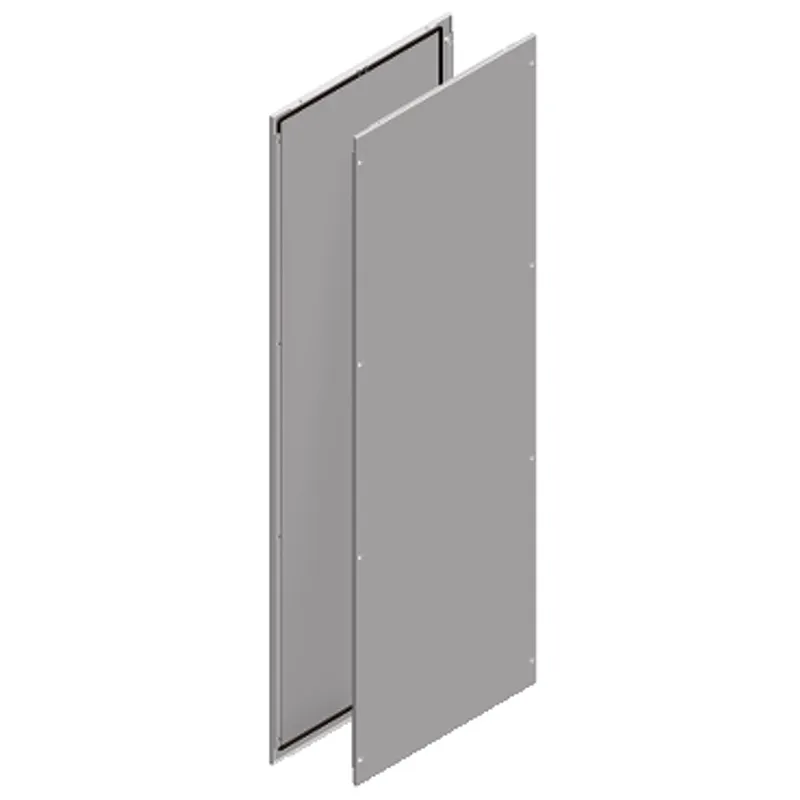

What is the Schneider Electric NSY2SP225?
Side panel made from grey steel (RAL 7035) for Spacial SF enclosures The nominal width is 500mm The nominal height is 2200mm Fixed by screws of type captive from the outside of enclosure location on the sides of enclosure The kit is made up of fixing elements and 2 side panels Anti-corrosion protection is ensured by an epoxy-polyester powder coating The product is to be used for multi-purpose applications
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Side panel |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - |
| Mounting location | Sides of enclosure |
| Quantity per set | Set of 1 |
| Range compatibility | PanelSeT SF |
| Device composition | Fixing elements, 2 side panel |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By screws - screw type captive - from the outside of enclosure location |
| Height | Nominal: 2200 mm |
| Width | Nominal: 500 mm |
Packaging
| Package 1 | 1 PCE, 229.000 cm × 50.000 cm × 6.000 cm (L × W × H), 29.600 kg |
| Package 2 | 10 PAL, 230.000 cm × 120.000 cm × 55.000 cm (L × W × H), 640.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSY2SP225: frequently asked questions
Can I still buy the NSY2SP225 now that it is discontinued?
Yes. Schneider Electric has discontinued the NSY2SP225, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can NSY2SP225 be shipped?
NSY2SP225 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSY2SP225 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSY2SP225 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSY2SP225, subject to availability and destination.
