Schneider Electric

Schneider Electric MCSESU053FN0

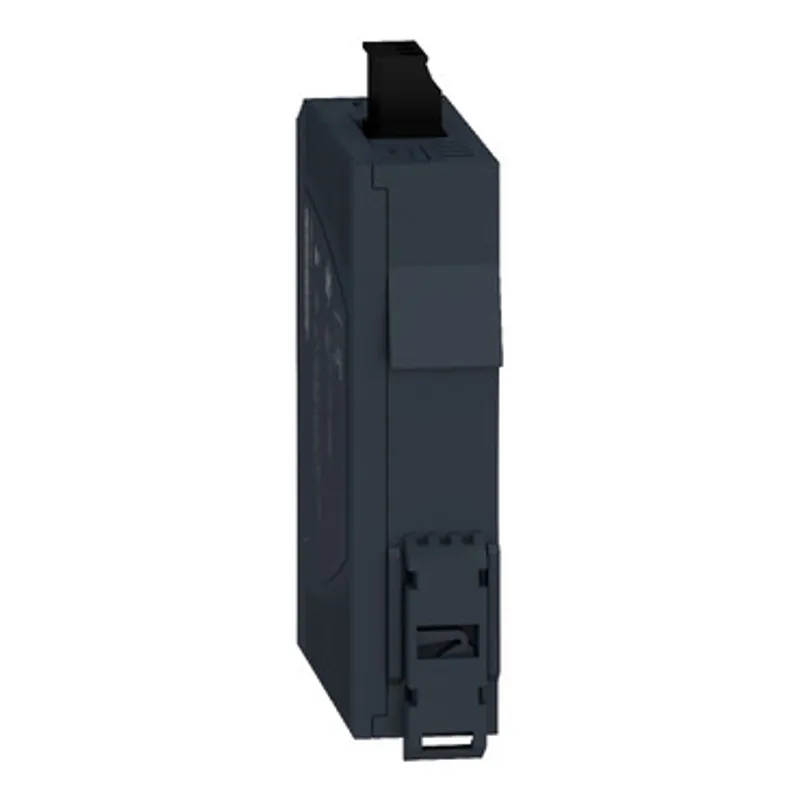

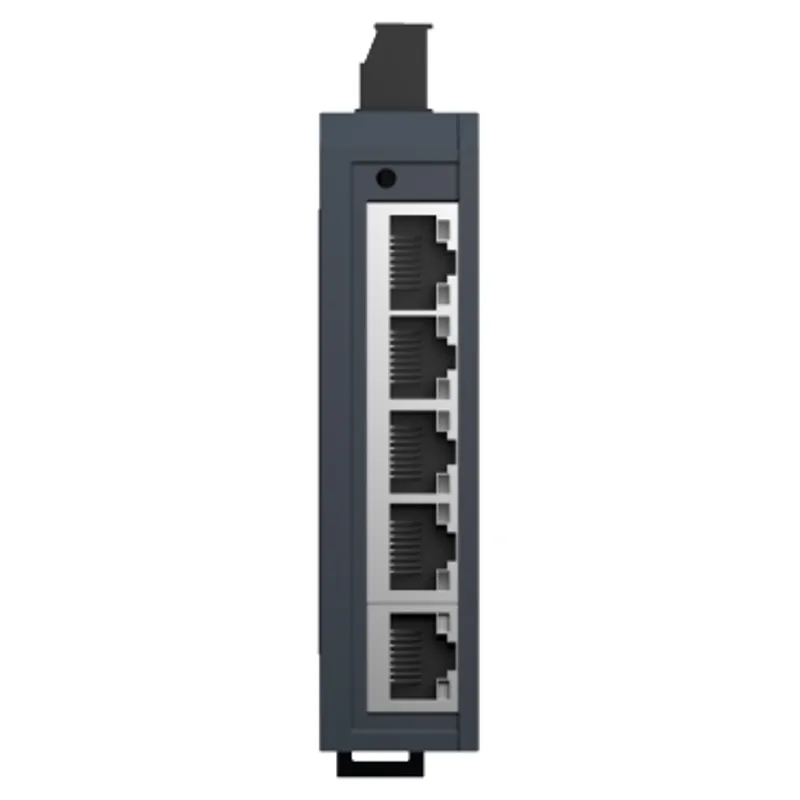

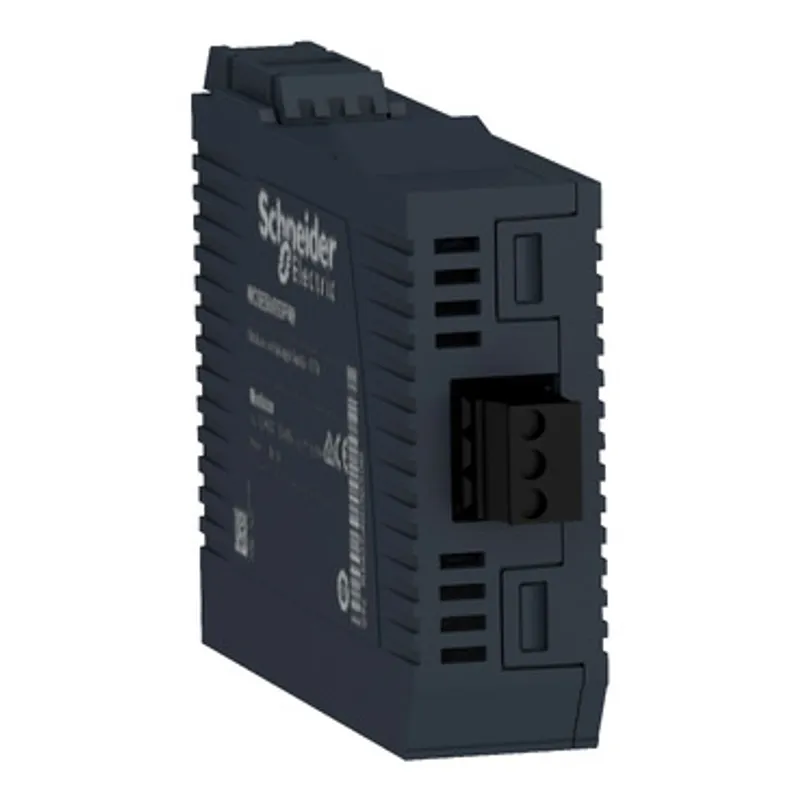

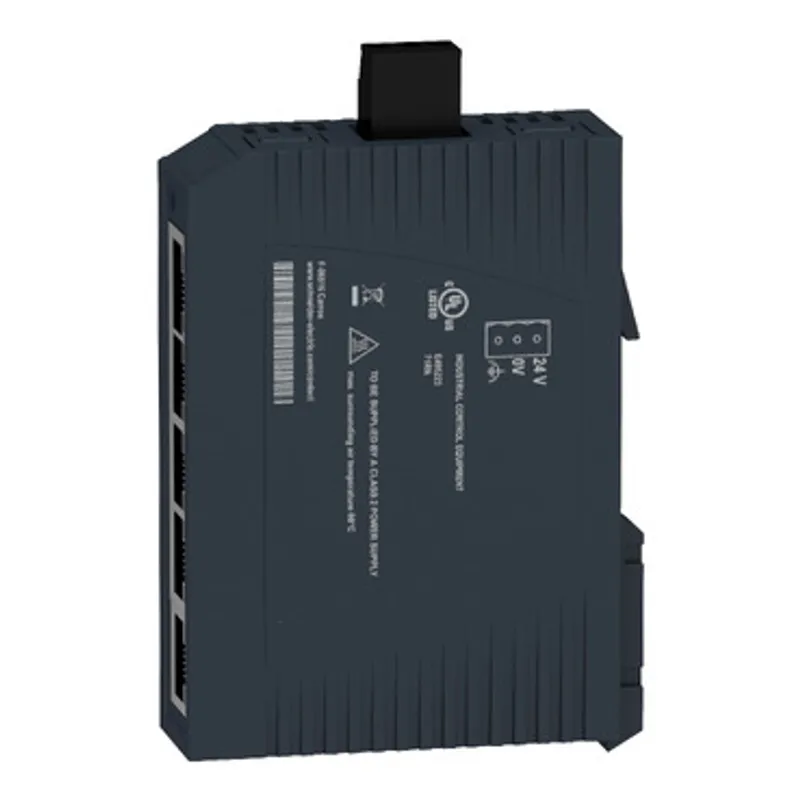

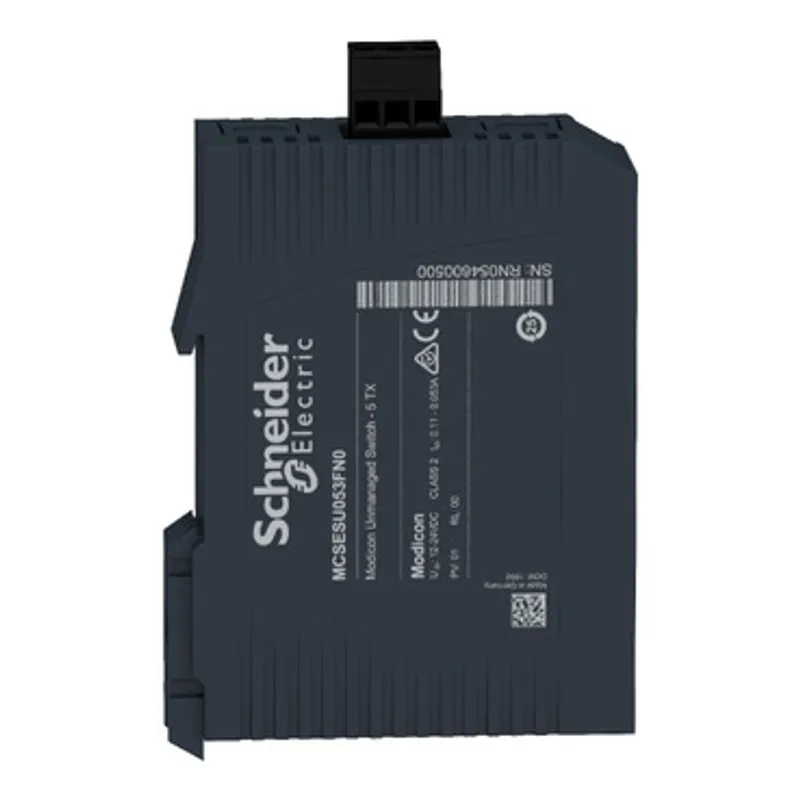

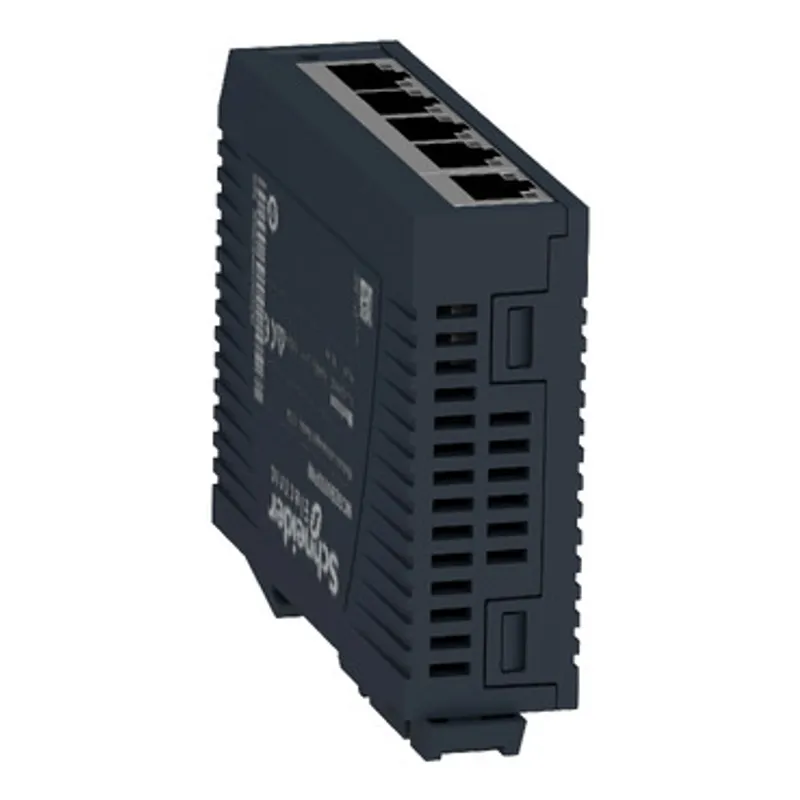

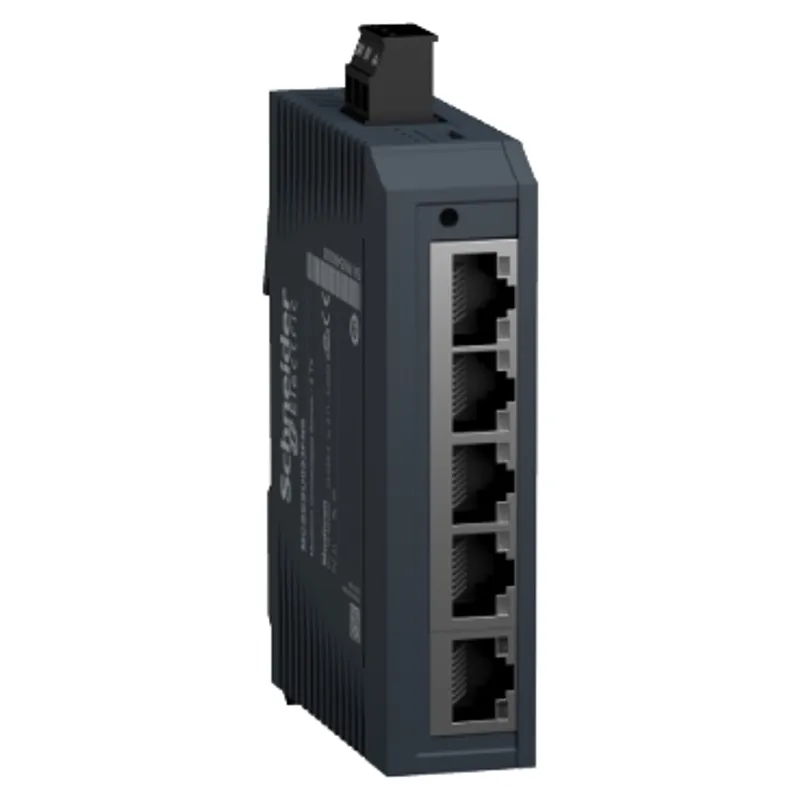

Network switch, Modicon Networking, standard unmanaged, 5 ports for copper

MPN: MCSESU053FN0
EAN: 3606481029546
Category: Modicon Networking

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric MCSESU053FN0?

This product is part of the Modicon Networking range, an offer of Modicon Standard Unmanaged Switch. This unmanaged switch comes with Ethernet TCP/IP protocol. It comes with 5 transmission ports copper cable. It provides simple connectivity for multiple Ethernet devices and gives customers more options with industrial grade application. This product works at a power consumption of 1.3W and a rated voltage from 12V to 24V DC. It has a removable 3-pin power supply connector . Its dimensions are 26mm (width) x 102mm (height) x 79mm (depth) and weighs 0.125 kg. It has shielded connectors which is suitable for small, isolated networks or system with light network traffic and network with low complexity levels. It is CE, UL, RCM, UKCA, EAC certified and conforms to UL 61010 and EN/IEC 61131 standards. It is designed to be mounted on a symmetrical DIN rail. It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.

Specifications

Range of product	Modicon Networking
Product or component type	Ethernet TCP/IP unmanaged switch
Communication port protocol	Ethernet TCP/IP
Port Ethernet	10/100BASE-TX - 5 port(s) copper cable
Maximum number of switches in cascade	Unlimited
Integrated connection type	Shielded RJ45 copper cable
Transmission support medium	Twisted shielded pairs cable CAT 5E for copper cable
Maximum cable distance between devices	100 m copper cable
[Us] rated supply voltage	12...24 V
Supply voltage limits	9.6…32 V DC SELV
Power consumption in W	1.3 W
Electrical connection	Removable connector 3 ways power supply
Mounting support	35 mm symmetrical DIN rail
Marking	CE, UL, RCM
Local signalling	1 LED (green) for power supply, 1 LED per channel (yellow) for data rate (ETH LINK), 1 dual colour LED (green/yellow) for link status
Ethernet cabling system	TF switches
Width	26 mm
Height	102 mm
Depth	79 mm
Net weight	0.125 kg
Ambient air temperature for operation	0…60 °C
Relative humidity	10…95 % non-condensing
IP degree of protection	IP30
Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Standards	UL 61010-2-201, EN/IEC 61131-2
Product certifications	CE, UL, RCM, EAC, UKCA

Packaging

Package 1	1 PCE, 24.300 cm × 16.500 cm × 6.300 cm (L × W × H), 262.000 g
Package 2	20 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 6.146 kg
Package 3	80 P12, 120.000 cm × 80.000 cm × 45.000 cm (L × W × H), 36.580 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet MCSESU053FN0PDF

MCSESU053FN0: frequently asked questions

When can MCSESU053FN0 be shipped?

MCSESU053FN0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up MCSESU053FN0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for MCSESU053FN0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MCSESU053FN0, subject to availability and destination.
