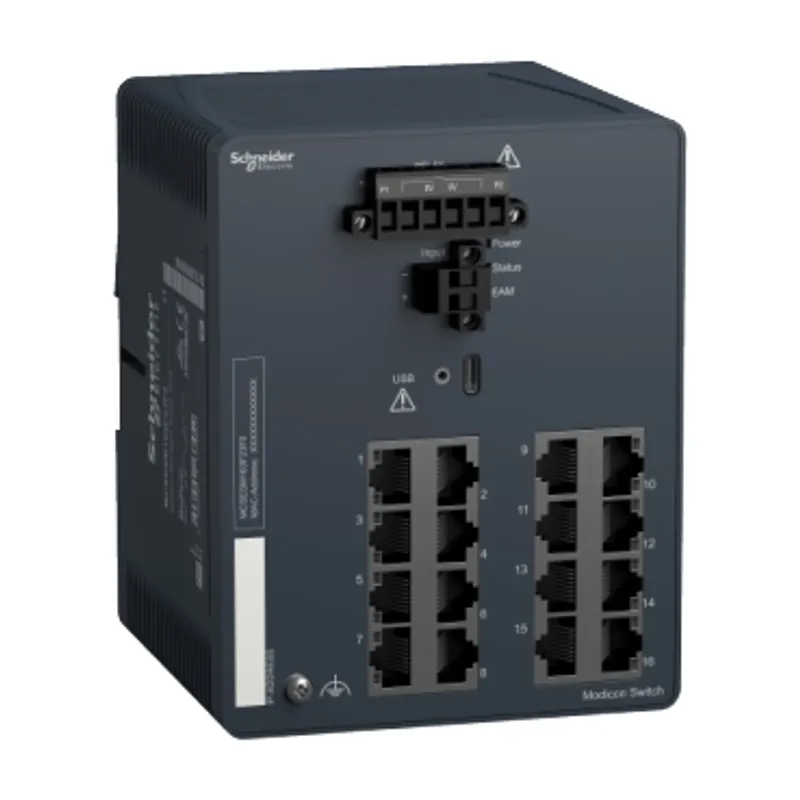

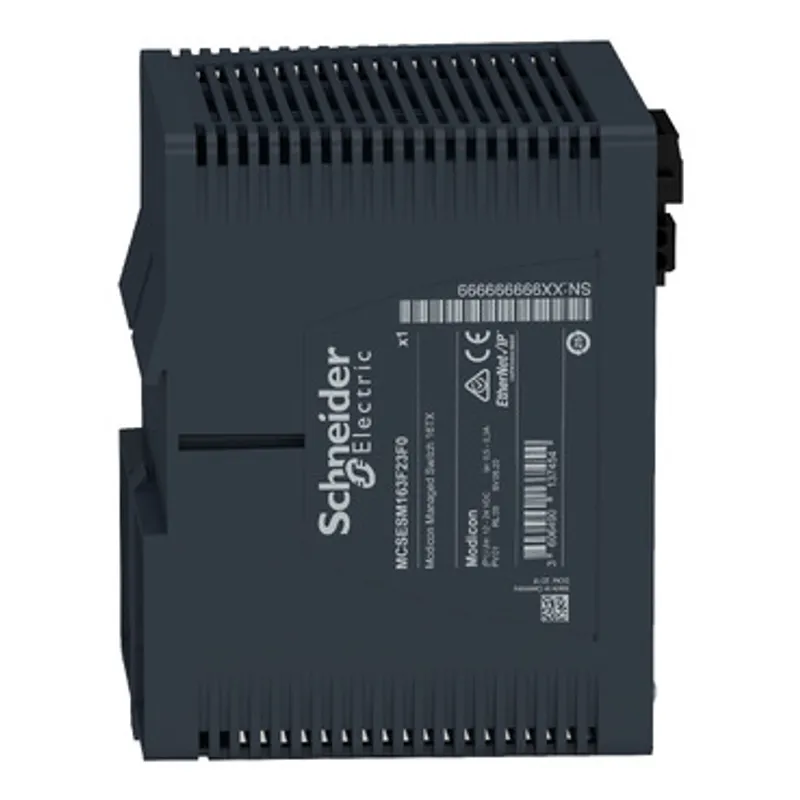

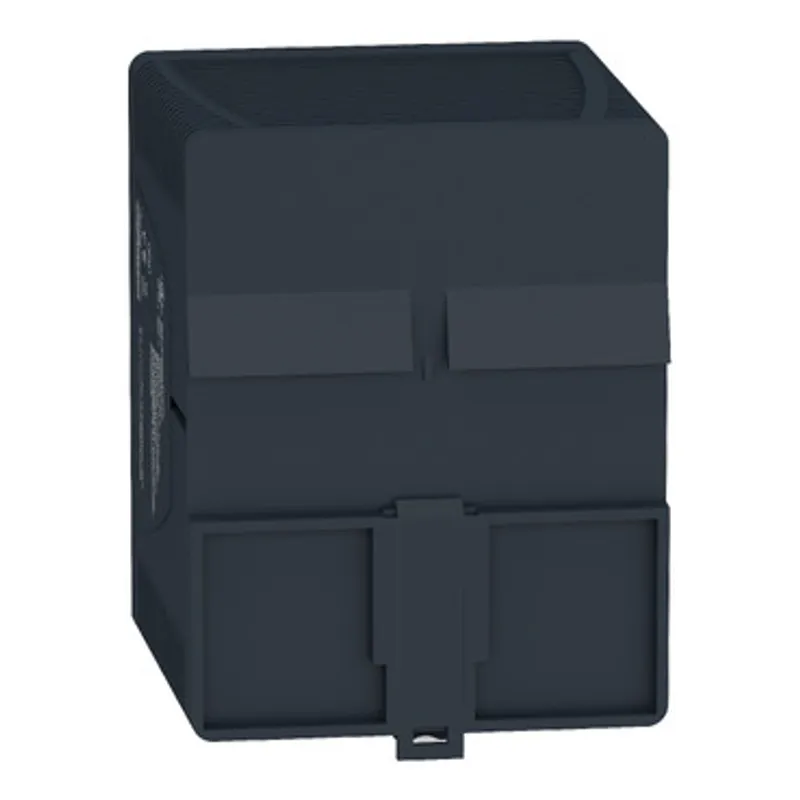

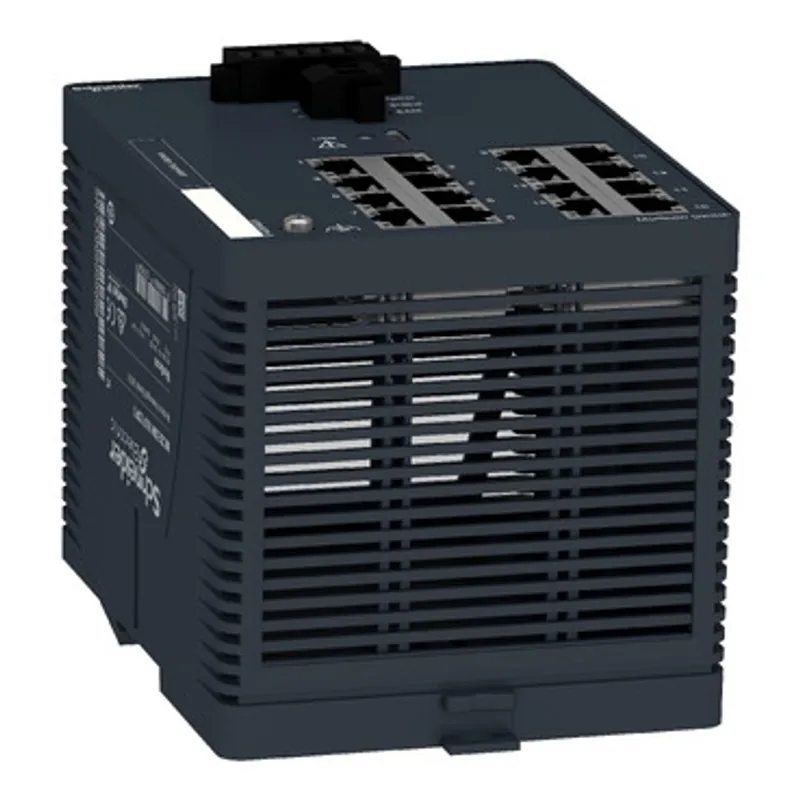

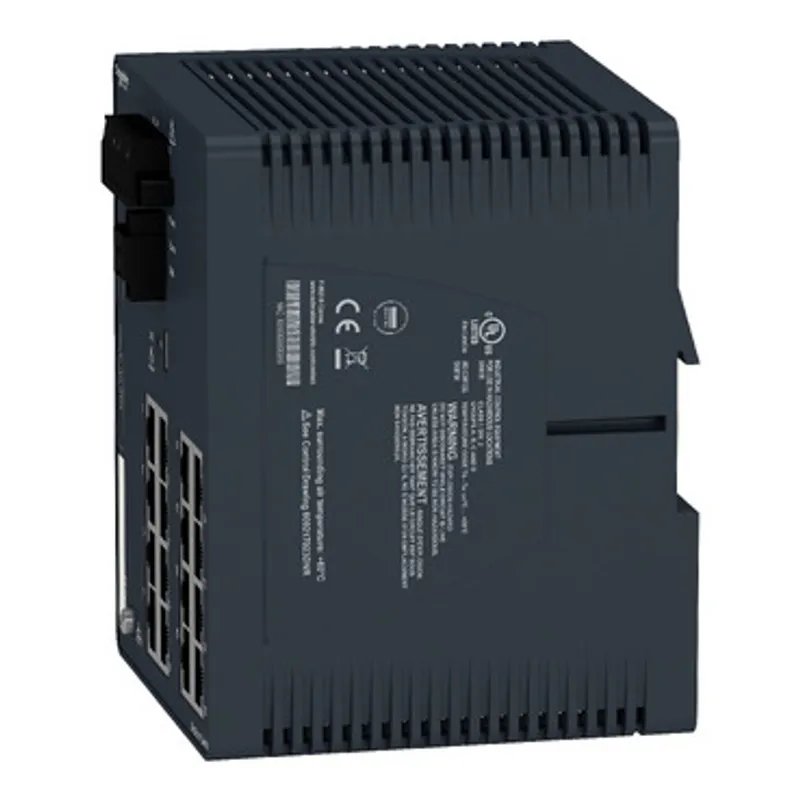

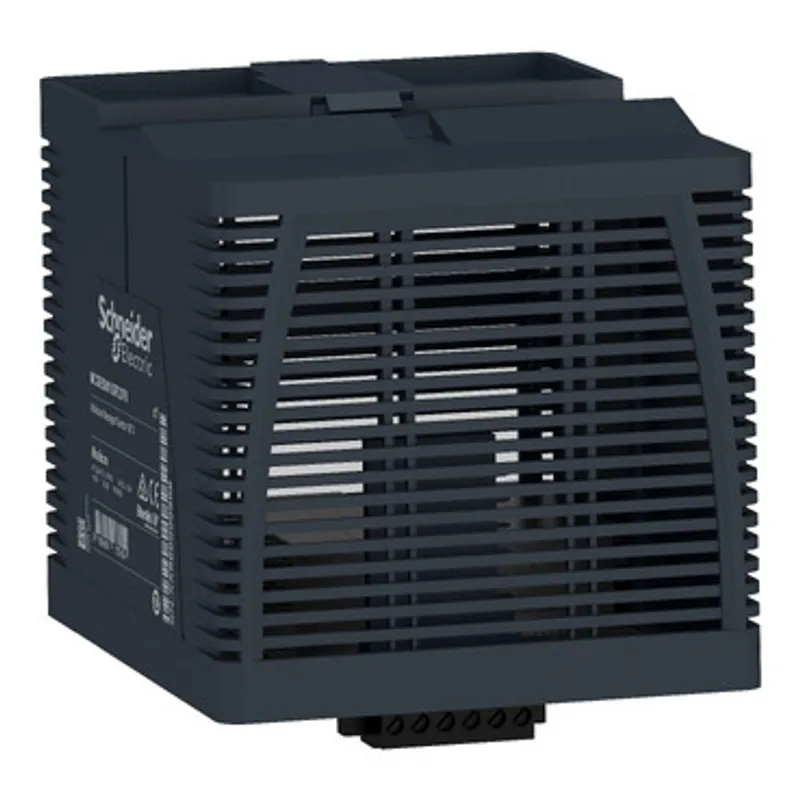

Schneider Electric MCSESM163F23F0
Network switch, Modicon Networking, managed, 16 ports for copper
- MPN
- MCSESM163F23F0
- EAN
- 3606481463456
- Category
- Modicon Networking
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric MCSESM163F23F0?
This product is part of the Modicon Networking range, an offer of Modicon Standard Managed Switch. This managed switch comes with Ethernet TCP/IP protocol. It comes with 16 copper cable transmission ports. It provides simple and complex connectivity for multiple Ethernet device, network management, enhanced cyber security and more advanced switching features. This product works at a power consumption of 10W and a rated voltage from 12V to 24V DC. It has a removable 6-pin power supply connector. Its dimensions are 109mm (width) x 143mm (height) x 118mm (depth) and weighs 0.88 kg. It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels. It is CE, UL, RCM, DNV, ATEX certified and conforms to UL 61010, EN/IEC 61131 and EN/IEC 62368-1 standards. It is designed to be mounted on a 35mm symmetrical DIN rail. It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.
Specifications
Specifications
| Range of product | Modicon Networking |
| Product or component type | Ethernet TCP/IP managed switch |
| Communication port protocol | Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, RS232, SFTP, SCP, LLDP, Telnet, SNTP |
| Port Ethernet | 10/100BASE-TX - 16 port(s) copper cable |
| Maximum number of switches in cascade | Unlimited |
| Cybersecurity | Port hardening, IP-based port security, MAC-based port security, Port-based access control, Role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, Audit trail, SNMP logging, Pre-login banner |
| Integrated connection type | Shielded RJ45 copper cable |
| Transmission support medium | Twisted shielded pairs cable CAT 5E for copper cable |
| Maximum cable distance between devices | 100 m copper cable |
| Ethernet service | Configuration via web server, VLAN, Multicast filtering, Data stream control, IGMP Snooping, SNMP-Traps and SYSLOG |
| Communication service | TFTP, Quality of Service (QoS), Port monitoring, Port mirroring, Address conflict detection |
| Diagnostics run time | Signal contact, Self test, MAC notification |
| Maximum number of switches in a ring | 50 |
| Redundancy | HiPER ring, RSTP, Link aggregation, Link backup, Redundant network coupling, MRP |
| [Us] rated supply voltage | 12...24 V |
| Supply voltage limits | 9.6…32 V DC SELV |
| Power consumption in W | 10 W |
| Electrical connection | Removable connector 6 ways power supply |
| Mounting support | 35 mm symmetrical DIN rail |
| Marking | CE, CULus, RCM |
| Function available | Security status, Alarms (Traps), System information, Report |
| Local signalling | 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for channel diagnostic |
| Alarm output | 1 voltfree contact 1 A |
| Alarm function | Power supply fault, Data link status, Switch fault, Temperature threshold, Redundancy ring fault, Incorrect configuration, External memory removed |
| Ethernet cabling system | TF switches |
| Width | 108.8 mm |
| Height | 142.8 mm |
| Depth | 117.6 mm |
| Net weight | 0.88 kg |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 1…95 % non-condensing |
| IP degree of protection | IP30 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Standards | UL 61010-2-201, EN/IEC 61131-2, EN/IEC 62368-1, IEC 61850-3, IEC 62443-4-2 |
| Product certifications | CE, UL, RCM, DNV, ATEX, EAC, UKCA, CSA C22-2 No 213, UKEX |
Packaging
| Package 1 | 1 PCE, 23.000 cm × 22.600 cm × 21.700 cm (L × W × H), 1.252 kg |
| Package 2 | 2 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 3.437 kg |
| Package 3 | 24 P12, 120.000 cm × 80.000 cm × 102.000 cm (L × W × H), 50.000 kg |
