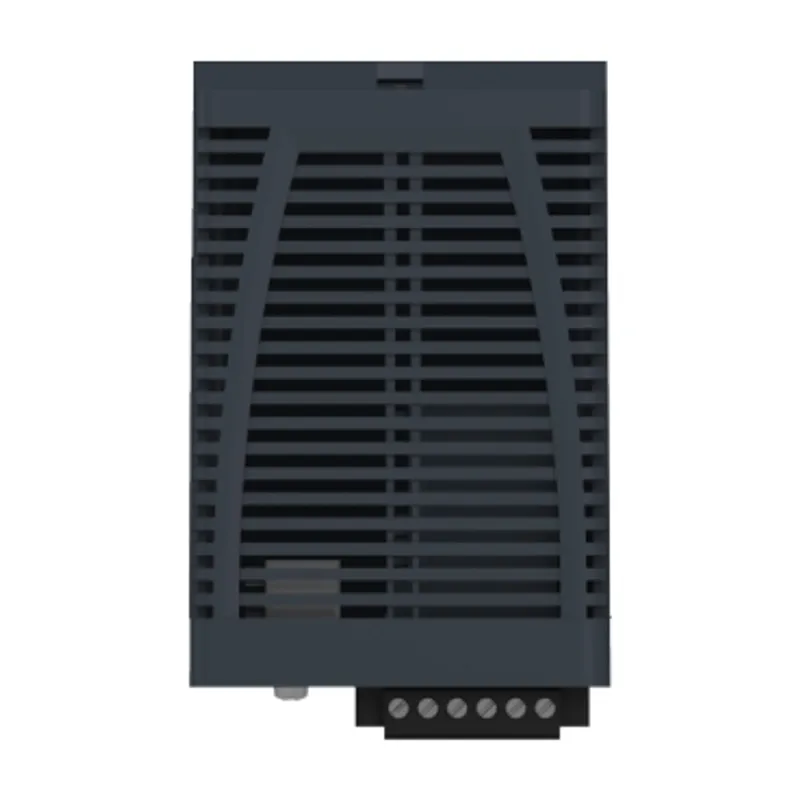

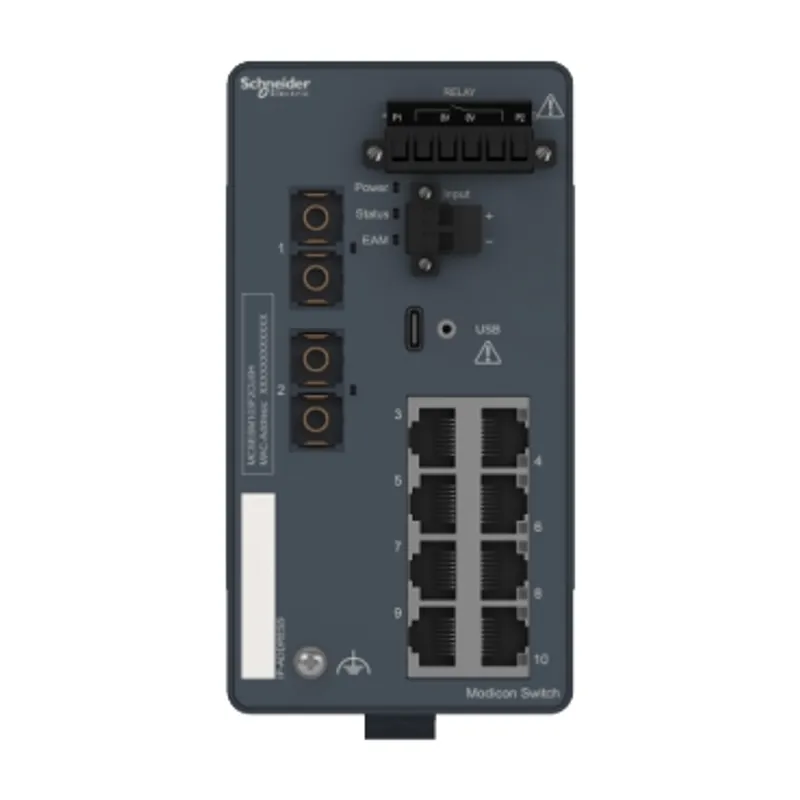

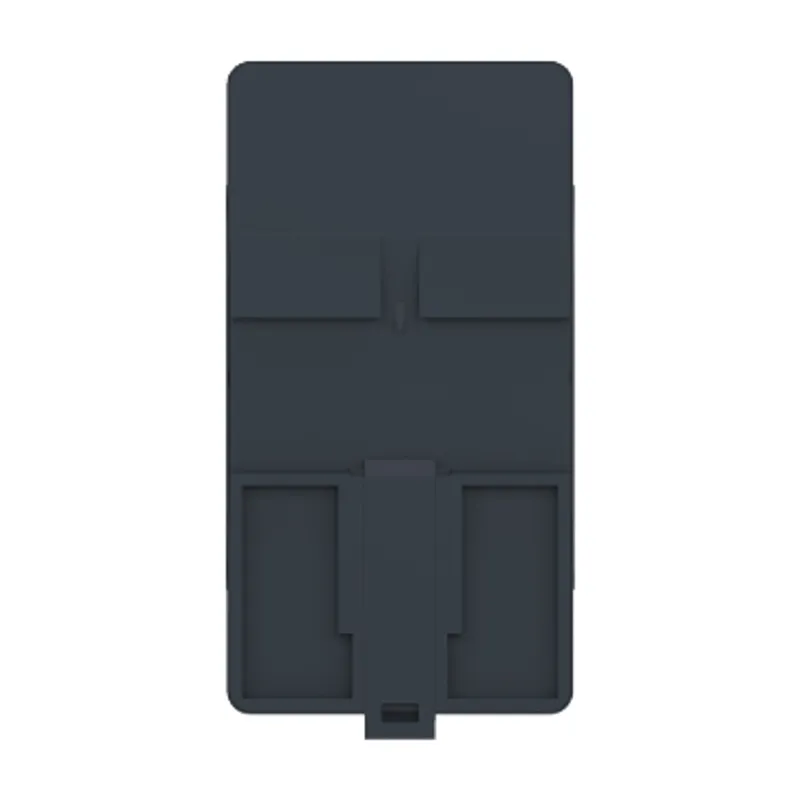

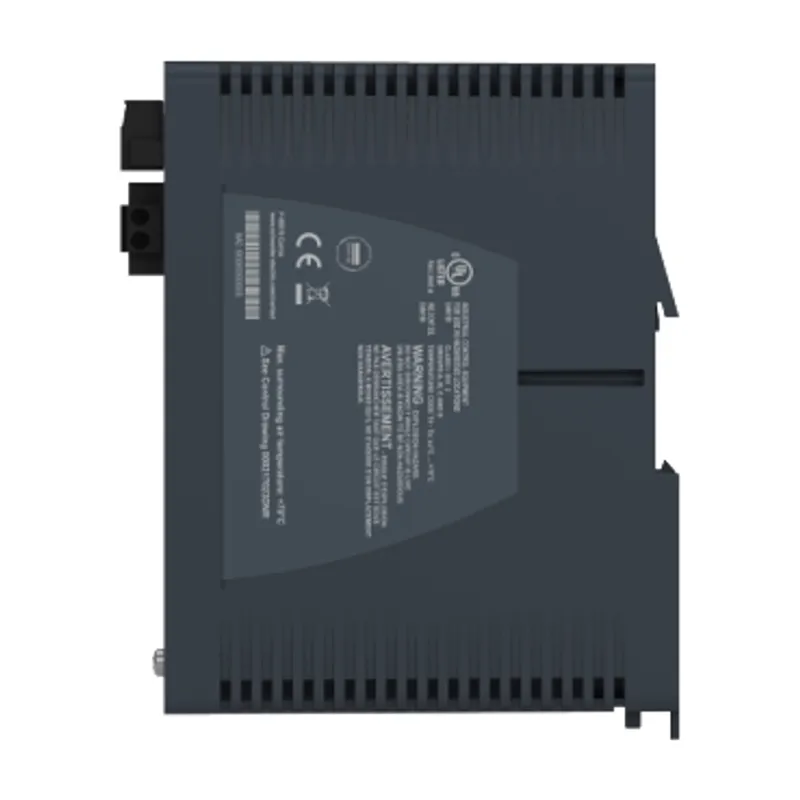

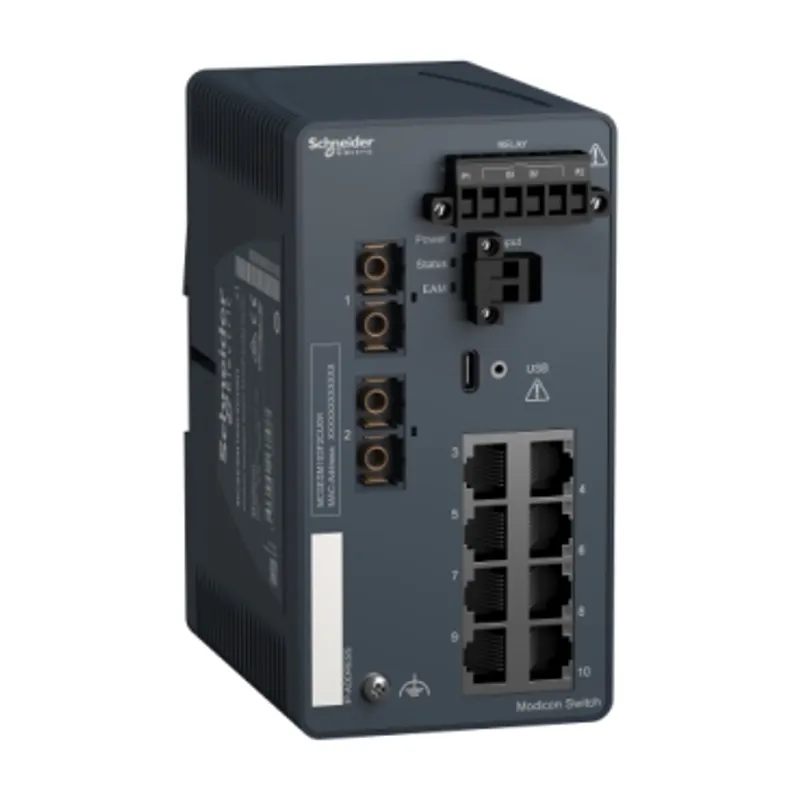

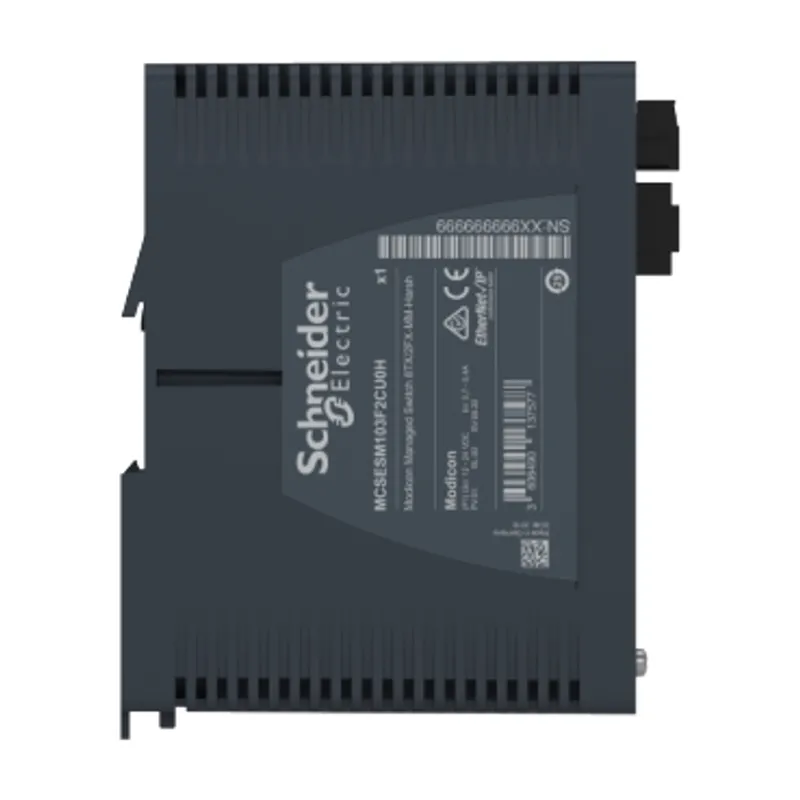

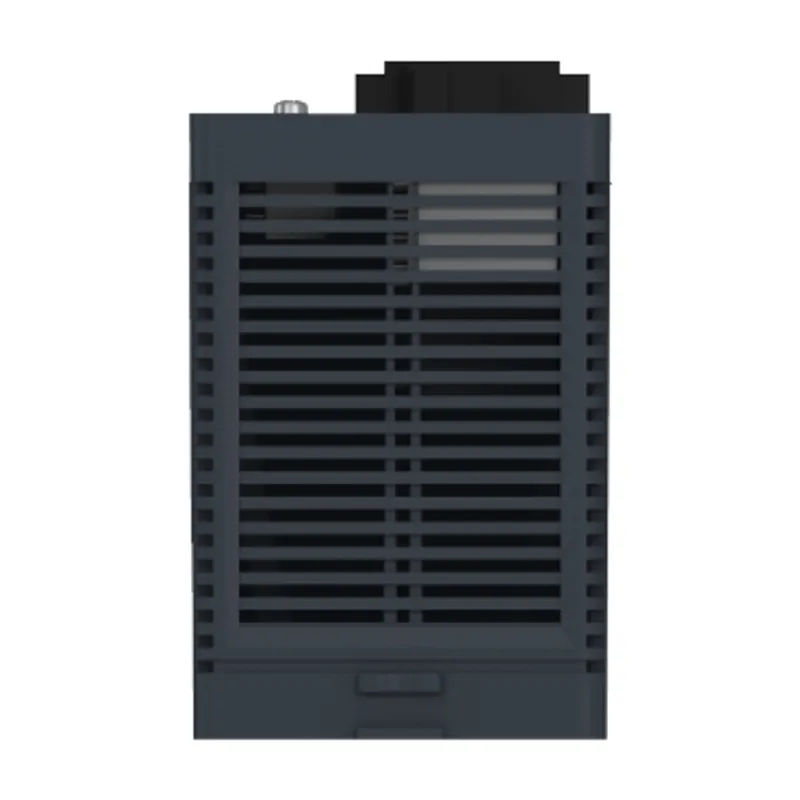

Schneider Electric MCSESM103F2CU0H
Network switch, Modicon Networking, managed, 8 ports for copper with 2 ports for fiber optic, multimode, harsh
- MPN
- MCSESM103F2CU0H
- EAN
- 3606481813831
- Category
- Modicon Networking
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric MCSESM103F2CU0H?
Can you tell me about the Modicon Standard Managed Switch and what makes it unique? The Modicon Managed Switch 8TX/2FX-MM harsh is a standard managed Layer 2 switch from Schneider Electric’s Modicon Networking range. It offers secure, flexible Ethernet integration for industrial operations and features a compact, DIN rail-mountable design for easy installation. This variant is specially engineered for harsh and rugged environments, ensuring reliable performance even under severe operating conditions. What are the key technical specifications of the Modicon Standard Managed Switch? It provides various switching features, redundancy protocols, communication services, cybersecurity, industrial protocol profiles, and diagnostic functions. This product has eight copper RJ45 ports supporting 10/100 Mbps, and two multimode fiber-optic ports supporting 100 Mbps. The switch mounts on a 35 mm DIN rail, consumes 8 W, and supports dual power input with 12–24 V DC. It operates from -40 °C to 70 °C with IP30 protection, and measures 73 × 143 × 117 mm at 0.57 kg. It is CE, UL, RCM, EAC, UKCA, DNV, FCC, CCCEx certified and meets IEC62443-4-2, UL 61010, EN/IEC 61131, and EN/IEC 62368-1 standards. What benefits does the Modicon Networking range offer? The Modicon Networking range provides seamless Ethernet connectivity, flexibility, cybersecurity, and scalability for reliable industrial networking.
Specifications
Specifications
| Range of product | Modicon Networking |
| Product or component type | Ethernet TCP/IP managed switch |
| Product specific application | For severe environments |
| Communication port protocol | Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, RS232, SFTP, SCP, LLDP, Telnet, SNTP |
| Port Ethernet | 100BASE-FX - 2 port(s) fiber optic, 10/100BASE-TX - 8 port(s) copper cable |
| Maximum number of switches in cascade | Unlimited |
| Cybersecurity | Port hardening, IP-based port security, MAC-based port security, Port-based access control, Role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, Audit trail, SNMP logging, Pre-login banner |
| Integrated connection type | Duplex SC fiber optic, Shielded RJ45 copper cable |
| Transmission support medium | Multimode optical fiber for fiber optic, Twisted shielded pairs cable CAT 5E for copper cable |
| Maximum cable distance between devices | 100 m copper cable |
| Optic fiber length | 4 km 62.5/125 µm, 5 km 50/125 µm |
| Attenuation | 0…11 dB (62.2/125 µm), 0…8 dB (50/125 µm) |
| Ethernet service | Configuration via web server, VLAN, Multicast filtering, Data stream control, IGMP Snooping, SNMP-Traps and SYSLOG |
| Communication service | TFTP, Quality of Service (QoS), Port monitoring, Port mirroring, Address conflict detection |
| Diagnostics run time | Signal contact, Self test, MAC notification |
| Maximum number of switches in a ring | 50 |
| Redundancy | HiPER ring, RSTP, Link aggregation, Link backup, Redundant network coupling, MRP |
| [Us] rated supply voltage | 12...24 V |
| Supply voltage limits | 9.6…32 V DC SELV |
| Power consumption in W | 8 W |
| Electrical connection | Removable connector 6 ways power supply |
| Mounting support | 35 mm symmetrical DIN rail |
| Marking | CE, CULus, RCM |
| Function available | Security status, Alarms (Traps), System information, Report |
| Local signalling | 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for channel diagnostic |
| Alarm output | 1 voltfree contact 1 A |
| Alarm function | Power supply fault, Data link status, Switch fault, Temperature threshold, Redundancy ring fault, Incorrect configuration, External memory removed |
| Ethernet cabling system | TF switches |
| Width | 73 mm |
| Height | 142.8 mm |
| Depth | 117.6 mm |
| Net weight | 0.57 kg |
| Ambient air temperature for operation | -40…70 °C |
| Relative humidity | 1…95 % non-condensing |
| IP degree of protection | IP30 |
| Protective treatment | Conformal coating |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Standards | UL 61010-2-201, EN/IEC 61131-2, EN/IEC 62368-1, IEC 61850-3, IEC 62443-4-2, EN 50121-4 |
| Product certifications | CE, UL, RCM, DNV, ATEX, EAC, UKCA, CSA C22-2 No 213, UKEX |
Packaging
| Package 1 | 1 PCE, 23.5 cm × 13.0 cm × 16.0 cm (L × W × H), 570.0 g |
