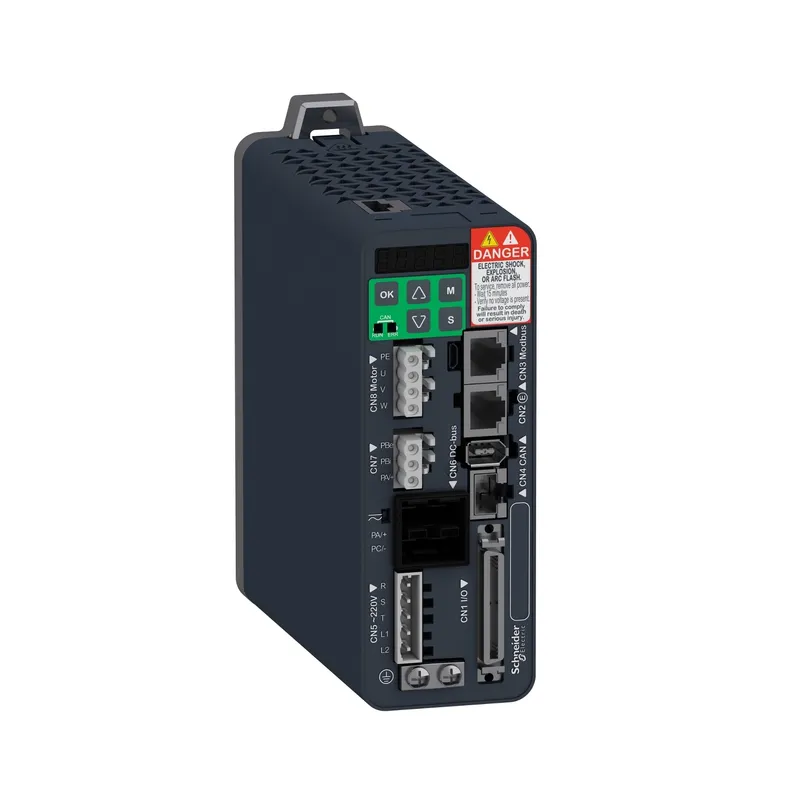

Schneider Electric LXM28SU01M3X – motion servo drive, Lexium 28, sercos, single and three phase 200...230 V, 100 W

MPN: LXM28SU01M3X · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lexium 28 & Motors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3606489934323
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can LXM28SU01M3X be shipped?

LXM28SU01M3X is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LXM28SU01M3X in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LXM28SU01M3X and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LXM28SU01M3X, subject to availability and destination.

This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The motion servo drive without EMC filter, features an HMI interface 7-segment display with 5 buttons. Thanks to its open communication concept, Lexium 28 servo drive can be easily integrated into numerous different control system architectures. The motion servo drives embed one pulse-train-input PTI and one pulse train-output PTO interfaces. It is a motion servo drive with a rated supply voltage of 220V (single and three phase), an output current of 2.7A at 220V, a power of 100W/0.13HP and a continuous power of 100W at 220V. It is furnished with spring terminal for electrical connection and RJ45 connectors for Sercos integrated communication interface. It is an IP20 rated product. Its dimensions are 55mm (Width) x 146mm (Depth) x 150mm (Height). It weighs 1kg. This product is certified by CE, CSA and CULus. It meets EN/IEC 61800-5-1 standards. This product is compatible with motor BCH2 (40mm, 2 motor stacks) at 100W. Mount this servo drive in a vertical position (more or less 10°). This is required for cooling the device. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 motors, optimized servo bundles for compact machines. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Lexium 28
Device short name	LXM28S
Product or component type	Motion servo drive
Format of the drive	Compact housing
Line current	1.2 A 239.2 % at 220 V, single phase; 1.2 A 212.7 % at 220 V, three phase

Complementary

Network number of phases	Three phase; Single phase
[Us] rated supply voltage	200...240 V (- 10...15 %) for three phase; 200...240 V (- 20...15 %) for single phase
Supply voltage limits	200…255 V three phase; 170…255 V single phase
Supply frequency	50/60 Hz - 5...5 %
Network frequency	47.5...63 Hz
EMC filter	Without EMC filter
Continuous output current	0.9 A at 16 kHz
Output current 3s peak	2.7 A at 220 V
Continuous power	100 W at 220 V
Nominal power	0.1 kW at 220 V 16 kHz
Switching frequency	16 kHz
Overvoltage category	III
Maximum leakage current	1.3 mA
Output voltage	<= power supply voltage
Electrical isolation	Between power and control
Type of cable	Shielded motor cable (temperature: 0…55 °C) copper
Electrical connection	Spring terminal, clamping capacity: 0.82...1 mm², 18 AWG (L1-L2); Spring terminal, clamping capacity: 0.82...1 mm², 18 AWG (R, S, T); Spring terminal, clamping capacity: 0.82...1 mm², 18 AWG (U, V, W, PE); Spring terminal, clamping capacity: 0.82...1 mm², 18 AWG (PA/+, PBe)
Discrete input number	8 programmable (CN1); 2 fast capture (CN1); 1 safety function STO (CN9)
Discrete input voltage	24 V DC for logic
Discrete input logic	Positive or negative (CN1)
Discrete output number	4 logic output (CN1) at 12...24 V DC; 1 pulse train output (PTO) (CN1)
Discrete output voltage	12...24 V DC
Discrete output logic	Positive or negative (CN1)
Control signal type	Servo motor encoder feedback CN2
Protection type	Against reverse polarity: inputs signal; Against short-circuits: outputs signal; Overcurrent: motor; Overvoltage: motor; Undervoltage: motor; Overheating: motor; Overload: motor; Overspeed: motor
Safety function	STO (safe torque off), integrated
Safety level	SIL 2 conforming to IEC 61800-5-2: 2007; SIL 2 conforming to IEC 61508-1: 2010; PL d/category 3 conforming to ISO 13849-1: 2008; SIL 2 conforming to ISO 13849-1: 2009/AC; SIL 2 conforming to IEC 60204-1: 2006; SIL 2 conforming to IEC 60204-1: 2009/A1; SIL 2 conforming to IEC 60204-1: 2010/AC; SIL 2 conforming to IEC 62061: 2012
Communication interface	Modbus, integrated; SERCOS III, integrated
Connector type	RJ45 (CN3); RJ45 (CN4)
Method of access	Slave
Transmission rate	9600 bauds...115200 bauds (automatic detection) for bus length of 100 m
Status LED	1 LED (red) charge; 1 LED (green) RUN; 1 LED (red) error
Signalling function	Servo status and fault codes five 7-segment display units
Marking	CE; CULus
Type of cooling	Natural convection
Operating position	Vertical
Product compatibility	Servo motor BCH2 (40 mm, 2 motor stacks) at 100 W
Width	55 mm
Height	150 mm
Depth	146 mm
Net weight	1 kg
Supply voltage description	Single phase 220 V AC 50...60 Hz; Three phase 220 V AC 50...60 Hz
Network number of phases	3; 1
Drive voltage drop coefficient	1
Field weakening	False
Continuous output current 2	0.9 A
Switching frequency 2	16 kHz
Continuous output current 3	0.9 A
Switching frequency 3	16 kHz
Communication iinterface	Pulse train output; SERCOS III
Emc filter compatibility	Type 022; Type 020

Environment

Electromagnetic compatibility	Conducted emission - test level: level 3 category C3 conforming to IEC 61800-3
Standards	IEC 61800-5-1
Product certifications	CE; cULus
IP degree of protection	IP20
Vibration resistance	3M4 amplitude = 3 mm (f = 9…200 Hz) conforming to IEC 60721-3-3
Shock resistance	10 gn, type I conforming to IEC 60721-3-3
Relative humidity	5…95 % without condensation
Ambient air temperature for operation	0…55 °C
Ambient air temperature for storage	-25…65 °C
Operating altitude	<= 1000 m without derating; > 1000...2000 m 1 % per 100 m
