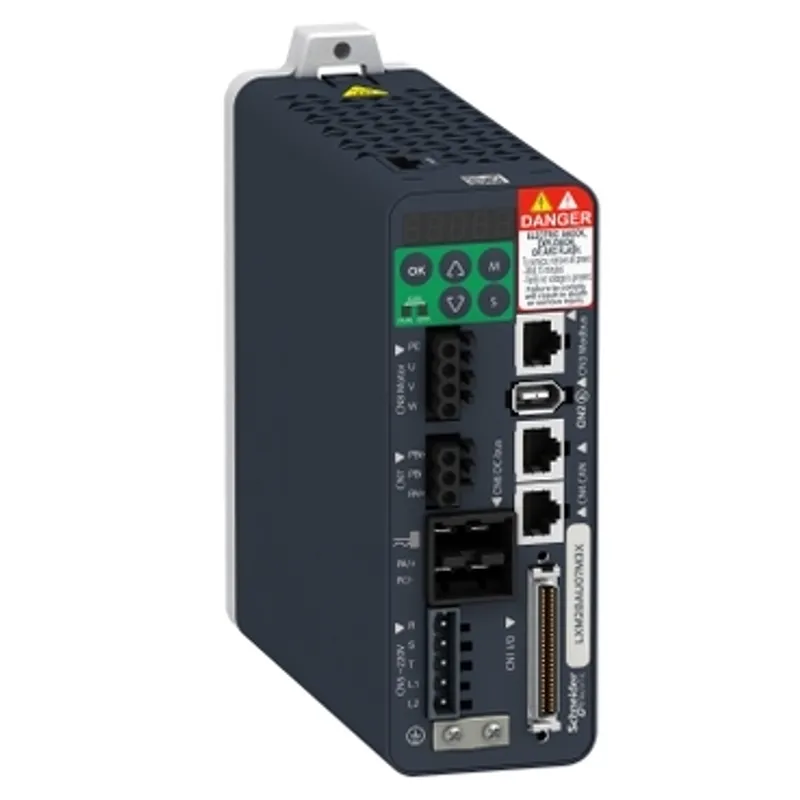

Schneider Electric LXM28AU04M3X

Motion servo drive, Lexium 28, single and three phase, 200 to 240V, 400W

MPN
LXM28AU04M3X
EAN
3606480711787
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric LXM28AU04M3X?

This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The motion servo drive without EMC filter, features a HMI interface 7-segment display with 5 buttons. Thanks to its open communication concept, Lexium 28 servo drive can be easily integrated into numerous different control system architectures. It is a motion servo drive with a rated supply voltage of 220V (single and three phase), an output current of 7.8A at 220V, a power of 400W/0.53HP and a continuous power of 400W at 220V. It is furnished with spring terminal for electrical connection and RJ45 connectors for CANopen, CANmotion integrated communication interfaces. Physical interface is RS485 for Modbus Serial line slave. It is an IP20 rated product. Its dimensions are 55mm (Width) x 146mm (Depth) x 150mm (Height). It weighs 1kg. This product is certified by CE, CSA and CULus. It meets EN/IEC 61800-5-1 standards. This product is compatible with servo motor BCH2 (60mm, 2 motor stacks) at 400W, servo motor BCH2 (80mm, 1 motor stacks) at 400W and servo motor BCH2 (130mm, 1 motor stacks) at 300W. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.

Specifications

Specifications

Range of productLexium 28
Device short nameLXM28A
Product or component typeMotion servo drive
Format of the driveCompact housing
Line current3.8 A 211.6 % at 220 V, single phase, 3.8 A 183.7 % at 220 V, three phase
Network number of phases1, 3
[Us] rated supply voltage200...240 V (- 10...15 %) for three phase, 200...240 V (- 20...15 %) for single phase
Supply voltage limits200…255 V three phase, 170…255 V single phase
Supply frequency50/60 Hz - 5...5 %
Network frequency47.5...63 Hz
EMC filterWithout EMC filter
Continuous output current2.6 A at 16 kHz
Output current 3s peak7.8 A at 220 V
Continuous power400 W at 220 V
Nominal power0.4 kW at 220 V 16 kHz
Switching frequency16 kHz
Overvoltage categoryIII
Maximum leakage current1.3 mA
Output voltage<= power supply voltage
Electrical isolationBetween power and control
Type of cableShielded motor cable (temperature: 0…55 °C) copper
Electrical connectionSpring terminal, clamping capacity: 0.82...1 mm², AWG 18 (L1-L2), Spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (R, S, T), Spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (U, V, W, PE), Spring terminal, clamping capacity: 0.82...1 mm², AWG 18 (PA/+, PBe)
Discrete input number8 programmable (CN1), 1 pulse train input (PTI) (CN1), 2 fast capture (CN1), 1 safety function STO (CN9)
Discrete input voltage24 V DC for logic
Discrete input logicPositive or negative (CN1)
Discrete output number5 logic output (CN1) at 12...24 V DC, 1 pulse train output (PTO) (CN1)
Discrete output voltage12...24 V DC
Discrete output logicPositive or negative (CN1)
Analogue input number2
Absolute accuracy error0.1 %
Analogue input typeV_REF voltage analog input: - 10...10 V, impedance: 10 kOhm, resolution: 14 bits, T_REF voltage analog input
Control signal typeServo motor encoder feedback CN2
Protection typeAgainst reverse polarity: inputs signal, Against short-circuits: outputs signal, Overcurrent: motor, Overvoltage: motor, Undervoltage: motor, Overheating: motor, Overload: motor, Overspeed: motor
Safety functionSTO (safe torque off), integrated
Safety levelSIL 2 conforming to IEC 61800-5-2: 2007, SIL 2 conforming to IEC 61508-1: 2010, PL d/category 3 conforming to ISO 13849-1: 2008, SIL 2 conforming to ISO 13849-1: 2009/AC, SIL 2 conforming to IEC 60204-1: 2006, SIL 2 conforming to IEC 60204-1: 2009/A1, SIL 2 conforming to IEC 60204-1: 2010/AC, SIL 2 conforming to IEC 62061: 2012
Communication interfaceCANopen, integrated, CANmotion, integrated
Connector typeRJ45 (CN4) for CANopen, CANmotion
Method of accessSlave
Transmission rate250 kbit/s for bus length of 100…250 m for CANopen, CANmotion, 500 kbit/s for bus length of 4…100 m for CANopen, CANmotion, 1 Mbit/s for bus length of 4 m for CANopen, CANmotion
Number of addresses1…127 for CANopen, CANmotion
Physical interfaceRS485 for Modbus Serial line slave
Status LED1 LED (red) charge, 1 LED (green) RUN, 1 LED (red) error
Signalling functionServo status and fault codes five 7-segment display units
MarkingCE, CULus
Type of coolingNatural convection
Operating positionVertical
Product compatibilityServo motor BCH2 (60 mm, 2 motor stacks) at 400 W, Servo motor BCH2 (80 mm, 1 motor stacks) at 400 W, Servo motor BCH2 (130 mm, 1 motor stacks) at 300 W
Width55 mm
Height150 mm
Depth146 mm
Net weight1 kg
Supply voltage descriptionThree phase 220 V AC 50...60 Hz, Single phase 220 V AC 50...60 Hz
Drive voltage drop coefficient1
Field weakeningFalse
Continuous output current 22.6 A
Output current 3s peak 27.8 A at 220 V
Switching frequency 216 kHz
Continuous output current 32.6 A
Output current 3s peak 37.8 A at 220 V
Switching frequency 316 kHz
Communication iinterfacePulse train input, CANmotion, Pulse train output, CANopen DS402
Emc filter compatibilityType 022, Type 020
Electromagnetic compatibilityConducted emission - test level: level 3 category C3 conforming to IEC 61800-3
StandardsIEC 61800-5-1
Product certificationsCE, cULus
IP degree of protectionIP20
Vibration resistance3M4 amplitude = 3 mm (f = 9…200 Hz) conforming to IEC 60721-3-3
Shock resistance10 gn, type I conforming to IEC 60721-3-3
Relative humidity5…95 % without condensation
Ambient air temperature for operation0…55 °C
Ambient air temperature for storage-25…65 °C
Operating altitude<= 1000 m without derating, > 1000...2000 m 1 % per 100 m

Packaging

Package 11 PCE, 23.600 cm × 23.000 cm × 7.300 cm (L × W × H), 1.316 kg
Package 25 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 7.000 kg
Package 340 P06, 60.000 cm × 80.000 cm × 75.000 cm (L × W × H), 64.000 kg
