Schneider Electric LV429263
Terminal extensions, ComPacT NSX 100/160/250, straight, set of 3 parts
- MPN
- LV429263
- EAN
- 3606480019777
- Category
- ComPacT NSX, new generation
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

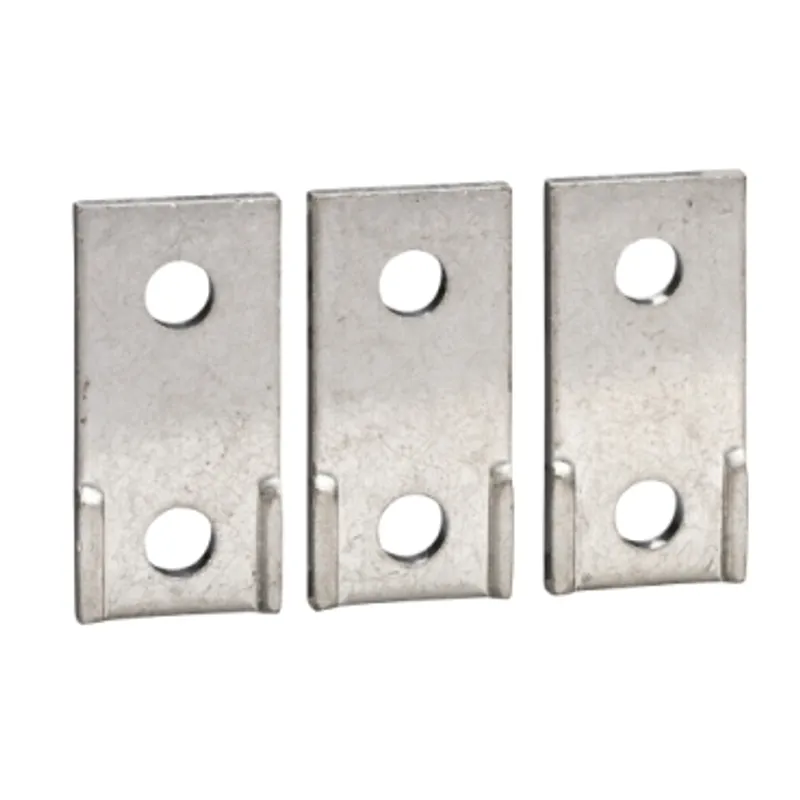

What is the Schneider Electric LV429263?
These accessories are straight terminal extensions for Compact NSX 100/160/250 and EasyPact CVS 100/160/250. These terminal extensions have anti-rotation ribs and can be attached to the standard terminals. The rated current is up to 250 A. These terminal extensions are supplied with flexible interphase barriers for insulation reinforcement. They are sold by set of 3 parts.
Specifications
Specifications
| Product or component type | Terminal extension |
| Device short name | straight terminal extensions |
| Accessory / separate part category | Connection accessory |
| Range compatibility | ComPacT ComPacT NSX100, ComPacT ComPacT NSX160, ComPacT ComPacT NSX250, ComPacT ComPacT NSX DC, ComPact ComPact NSX100, ComPact ComPact NSX160, ComPact ComPact NSX250, ComPact Compact NSX100 DC, ComPact Compact NSX160 DC, ComPact Compact NSX250 DC, EasyPact EasyPact CVS100, EasyPact EasyPact CVS160, EasyPact EasyPact CVS250, ComPact INS250, ComPact Compact INV100...250 |
| Poles description | 3P |
| Quantity per set | 3 |
| Mounting position | Straight |
| [In] rated current | 250 A |
| Connection pitch | 35 mm |
Packaging
| Package 1 | 1 PCE, 11.500 cm × 11.200 cm × 1.500 cm (L × W × H), 216.000 g |
| Package 2 | 12 BB1, 35.500 cm × 20.000 cm × 10.800 cm (L × W × H), 2.779 kg |
| Package 3 | 60 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 13.660 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
LV429263: frequently asked questions
When can LV429263 be shipped?
LV429263 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LV429263 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LV429263 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LV429263, subject to availability and destination.
