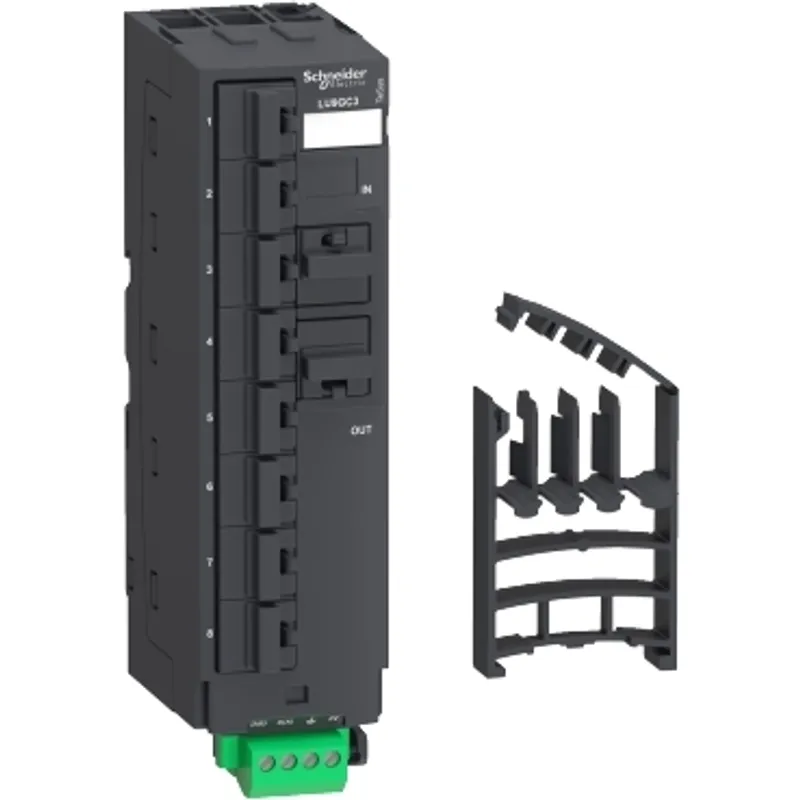

Schneider Electric LU9GC3
Modbus hub, TeSys Ultra, 10 RJ45 and 1 screw terminal block
- MPN
- LU9GC3
- EAN
- 3389110366839
- Category
- TeSys Ultra
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric LU9GC3?
TeSys U Modbus communication splitter box with 10 x RJ45 connectors and 1 screw terminal block. On front side, it provides 8 x RJ45 connectors for tap-off and 2 x RJ45 connectors for daisy chain. On the underside, it provides a 4-point screw terminal block for Modbus trunk cable connection. To be clipped on a 35mm DIN rail or fixed by 2 screws on panel. Green Premium compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Device short name | LU9G |
| Product or component type | Modbus hub |
| Maximum number of connections | 8 |
| Net weight | 0.26 kg |
Packaging
| Package 1 | 1 PCE, 20.500 cm × 9.000 cm × 5.000 cm (L × W × H), 328.000 g |
| Package 2 | 25 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 8.650 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
LU9GC3: frequently asked questions
When can LU9GC3 be shipped?
LU9GC3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up LU9GC3 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for LU9GC3 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LU9GC3, subject to availability and destination.
