Schneider Electric ISM71506

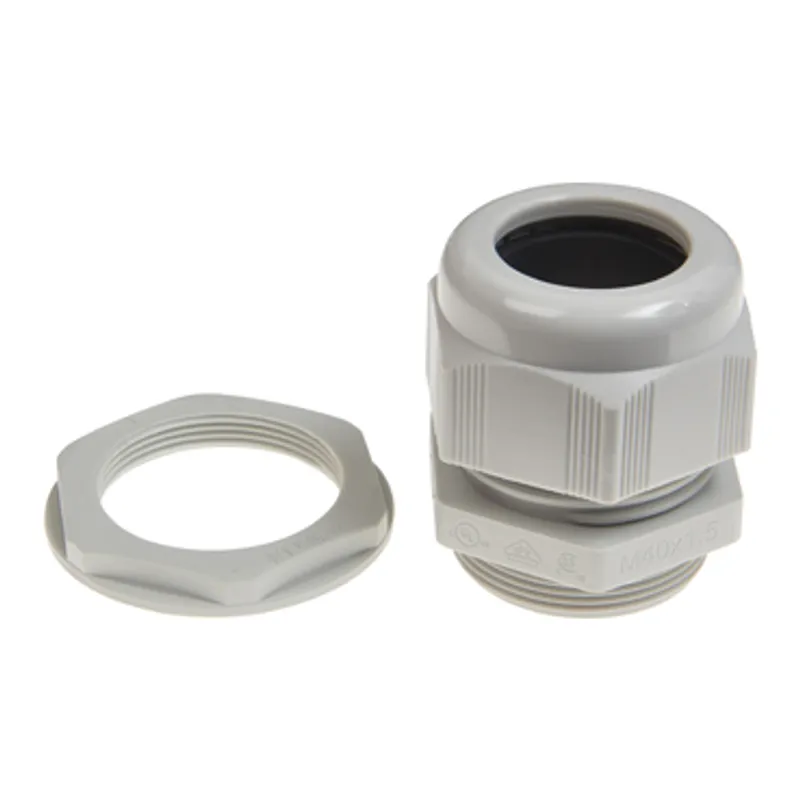

Thorsman Glands - cable gland - grey - M40 - diameter 19 to 28
- MPN
- ISM71506
- EAN
- 3606480077234
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric ISM71506?
A cable gland secures electrical cables as they enter panels, junction boxes, and enclosures. It Provides strain relief and prevents the cable from pulling out or loosening. Cable gland uses an ISO‑metric M40 thread to ensure secure installation. The cable gland supports a cable outer diameter of 19–28 mm. The color of this device is grey .Its made of PA6 material. The Ambient air temperature for operation is from -30°C up to +80°C. It reaches IP68 degree of protection. This product comes in a set of 5 polybag packing. Thorsman Glands — Secure, durable IP-rated protection for small‑commercial cable installs. Engineered for secure, worry‑free cable protection.
Specifications
Specifications
| product range | Thorsman Glands |
| product type | Cable gland |
| colour | Grey (RAL 7035) |
| quantity per package | Set of 5 |
| Material | PA6 |
| ISO thread | M40 |
| Cable outer diameter | 19…28 mm |
| IP-Class | IP68 |
| operating temperature | -30…80 °C permanently, -30…150 °C intermittently |
Packaging
| Package 1 | 1 PCE, 1.000 cm × 16.000 cm × 24.000 cm (L × W × H), 61.000 g |
| Package 2 | 5 BB1, 5.000 cm × 16.000 cm × 24.000 cm (L × W × H), 306.000 g |
| Package 3 | 200 CAR, 56.000 cm × 37.000 cm × 30.000 cm (L × W × H), 12.240 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
ISM71506: frequently asked questions
When can ISM71506 be shipped?
ISM71506 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ISM71506 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ISM71506 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ISM71506, subject to availability and destination.
