Schneider Electric ISM71074

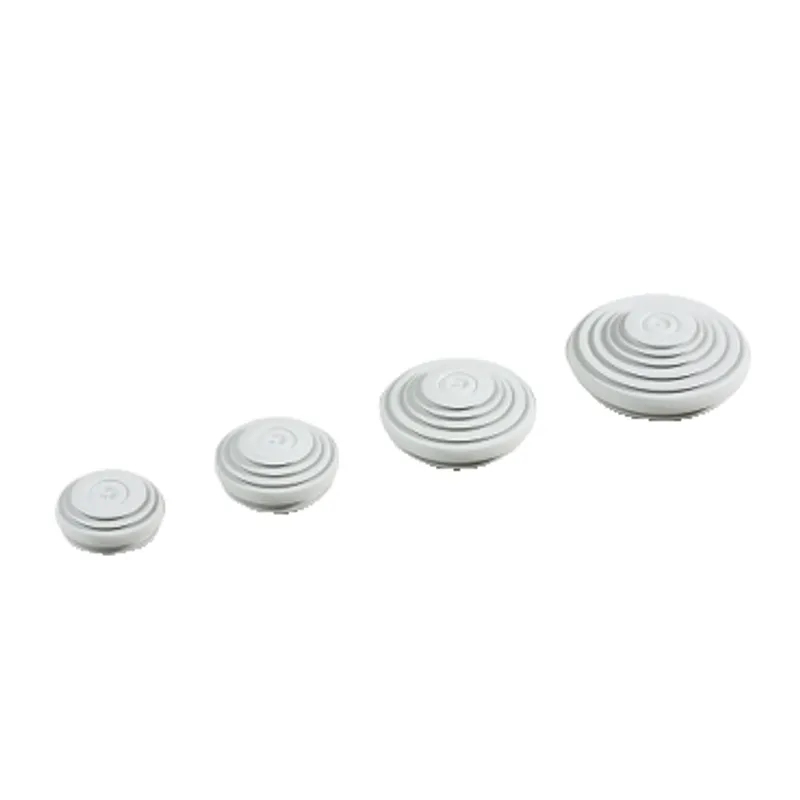

Mureva BOX - grommet - grey - diameter 4 to 40
- MPN
- ISM71074
- EAN
- 3606480077272
- Category
- PanelSeT PLM
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original ISM71074 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric ISM71074?
Mureva Flexible grommet ISM71074 (set of 10 pieces), diameter 40 mm, suitable for unthreaded holes (drilling diameter 44 mm) For fast installation by using either EVA (easy valve access) membrane entry, i.e. direct entry of rigid cables from 4 to 14 mm2, or stepped entry, by removing a step of the desired diameter for cables or conduits from 14 mm2 up to 40 mm2 Material: SBS (styrene butadiene styrene) This grommet is an accessory to Mureva junction boxes to enforce IP55 protection against dust and humidity
Specifications
Specifications
| range of product | Mureva |
| Product or component type | Grommet |
| colour | Grey (RAL 7035) |
| quantity per package | 10 pieces |
| Accessory / separate part category | Cabling accessory |
| Material | SBS (styrene butadiene styrene) |
| Cable outer diameter | 4…40 mm |
| Drilling diameter | 44 mm |
| operating temperature | -25…40 °C |
| IP-Class | IP55 |
Packaging
| Package 1 | 1 PCE, 1.500 cm × 4.000 cm × 4.000 cm (L × W × H), 9.000 g |
| Package 2 | 10 BB1, 15.000 cm × 4.000 cm × 4.000 cm (L × W × H), 93.000 g |
| Package 3 | 500 CAR, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 4.660 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
ISM71074: frequently asked questions
Can I still buy the ISM71074 now that it is discontinued?
Yes. Schneider Electric has discontinued the ISM71074, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can ISM71074 be shipped?
ISM71074 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ISM71074 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ISM71074 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ISM71074, subject to availability and destination.
