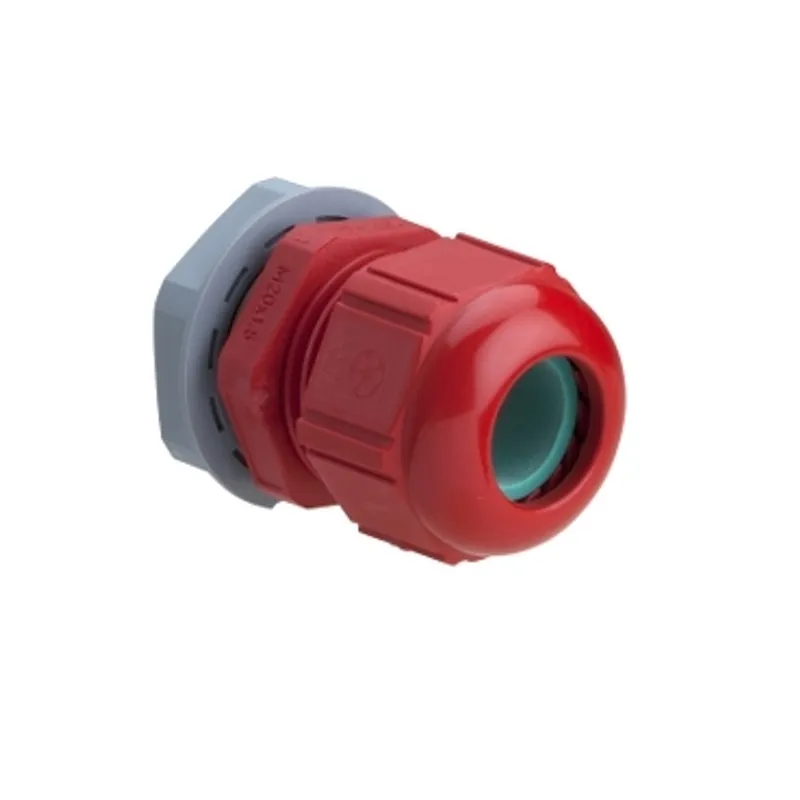

Thorsman Glands - security cable gland - red - M20 - diameter 6 to 12
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT PLM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 15 kg |
Shipping & availability
When can IMT36150 be shipped?
IMT36150 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up IMT36150 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for IMT36150 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IMT36150, subject to availability and destination.
Security cable gland equipped with nut and seal for one cable, specially adapted to red boxes for safety circuits. May be used in both theaded and unthreaded holes. The IP68 and plastic material ensures complete protection even in hot environments.
Specifications
Specifications
| product range | Thorsman Glands |
| product type | Security cable gland |
| colour | Red (RAL 3000) |
| quantity per package | Set of 20 |
| Material | PA6 |
| ISO thread | M20 |
| Cable outer diameter | 6…12 mm |
| IP-Class | IP68 |
| glow wire temperature | 960 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.000 cm |
| Package 1 Width | 13.000 cm |
| Package 1 Length | 4.000 cm |
| Package 1 Weight | 15.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 20.000 cm |
| Package 2 Width | 13.000 cm |
| Package 2 Length | 4.000 cm |
| Package 2 Weight | 300.000 g |
| Warranty | 18 months |
