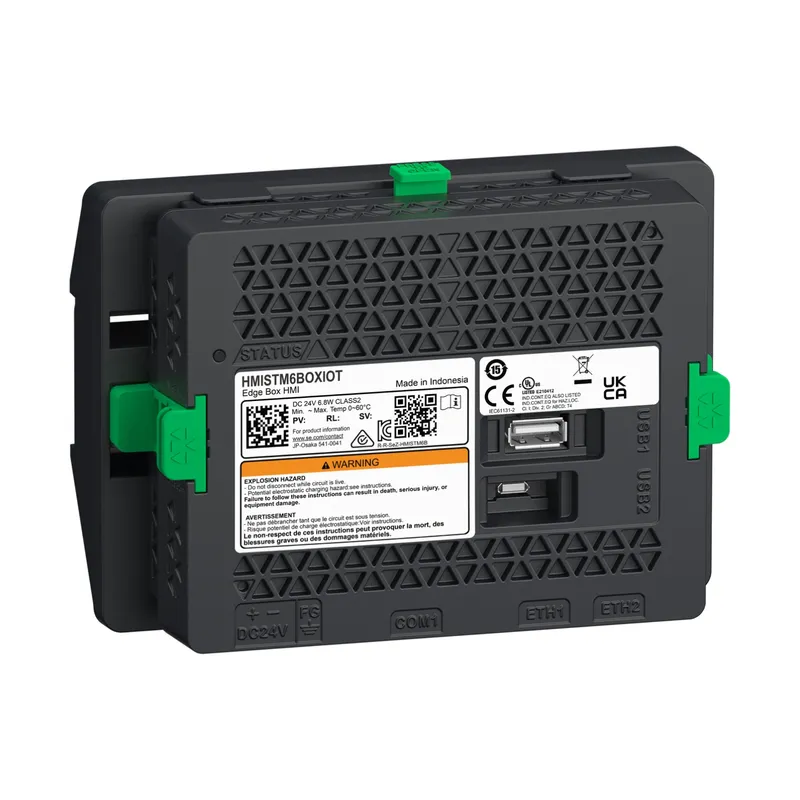

Schneider Electric HMISTM6BOXIOT

Edge Box HMI, Harmony ST6, 1COM, 2Ethernet, 2 USB, 24 VDC

MPN
HMISTM6BOXIOT
EAN
3606482158757
Category
Harmony ST6
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric HMISTM6BOXIOT?

"This Edge Box HMI belongs to the Schneider Electric Harmony ST6 range." "This HMISTM6 Edge Box runs on 800MHz ARM Cortex-A8 CPU Harmony operating system with an input supply voltage of 24Vdc." "It has a 1 GB device memory, 128 MB user data memory, and 512 KB backup memory." "Edge Box HMI is configured using EcoStruxure Machine SCADA Expert that collects data with different drivers on OT devices and pushes data on IT side." "This HMISTM6BOXIOT supports 2x Ethernet port, 1x COM1 (RS-232C or RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port." "Its dimensions are 150.49mm (width) x 109.97mm (height) x 63.3mm (depth) and weighs 0.456Kg." "This is intended for industries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices." "It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH, ATEX Zone2/22, Marine." "The Edge Box HMI is a Box without screen and mounted on a DIN Rail adapter provides IP20 protection." "This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment." PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of productHarmony ST6
Product or component typeModular HMI box
Operating systemLinux
Processor nameARM Cortex-A8
Memory description512 KB NVRAM backup memory; 512 MB internal RAM; 1 GB NAND flash
Software packageEcoStruxure machine SCADA expert runtime 500 tags pre-activated; EcoStruxure machine SCADA expert runtime (mobile) 1 client activated; EcoStruxure secure connect advisor pre-installed

Complementary

[Us] rated supply voltage24 V DC
Local signallingLED multi-colour
Integrated connection type2 Ethernet TCP/IP - RJ45 - 10/100BASE-T; 1 COM1 serial link - RJ45 - RS232C/RS485 (rate: 2400...115200 bps); 1 USB 2.0 port - USB micro-B; 1 USB 2.0 port - USB type A
Type of coolingNatural convection
Realtime clockBuilt-in
Height101 mm
Width150.5 mm
Depth63.3 mm
Net weight0.456 kg

Environment

StandardsUL 61010; CSA C22.2 No 61010-2-201; UL 121201; CSA C22.2 No 213; IEC 61132-2
Product certificationsCE; UKCA; cULus; RCM; KC; cULus Class 1 Division 2; ABS; RINA; DNV
Pollution degree2 conforming to IEC 61131-2 ed.3
Ambient air temperature for operation0…60 °C
Ambient air temperature for storage-20…60 °C
Relative humidity10…90 % non-condensing
Operating altitude2000 m
Shock resistance147 m/s² conforming to IEC 61131-2
Vibration resistance3.5 mm constant amplitude (f = 5…9 Hz) conforming to IEC 61131-2; 9.8 m/s² (f = 9…150 Hz) conforming to IEC 61131-2
Electromagnetic compatibilityElectrostatic discharge immunity test conforming to IEC 61000-4-2 level 3

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

HMISTM6BOXIOT: frequently asked questions

When can HMISTM6BOXIOT be shipped?

HMISTM6BOXIOT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up HMISTM6BOXIOT in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for HMISTM6BOXIOT and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for HMISTM6BOXIOT, subject to availability and destination.
