Schneider Electric HMIGTO5310

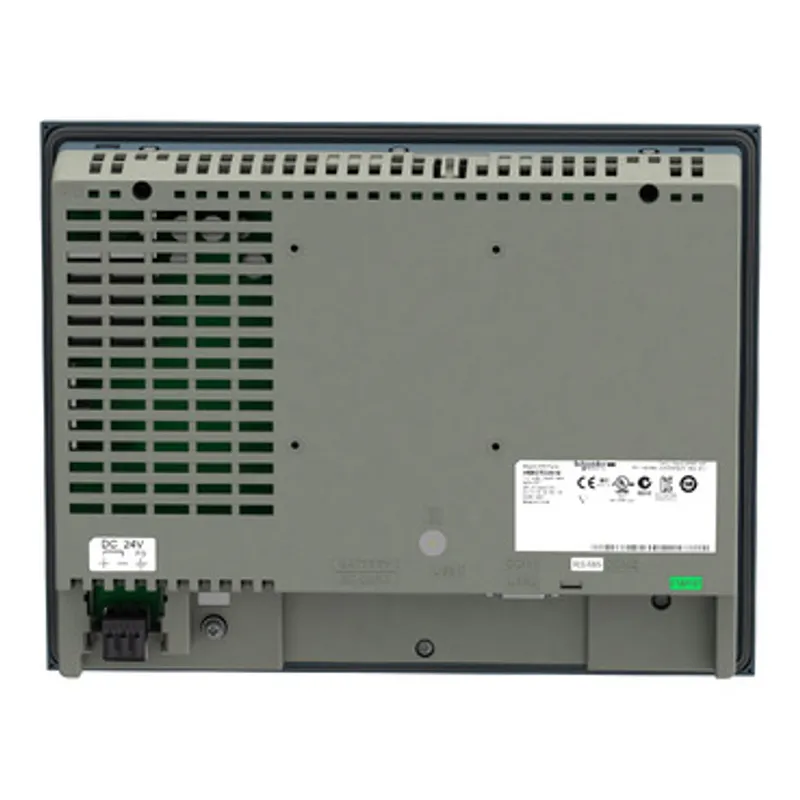

Advanced touchscreen panel, Harmony GTO, 640 x 480pixels VGA, 10.4inch TFT, 96MB

MPN
HMIGTO5310
EAN
3595864150284
Category
Harmony GTO
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric HMIGTO5310?

This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 10.4" color TFT LCD display, 640 x 480 pixels (VGA) and 96MB EPROM. It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.

Specifications

Specifications

Range of productHarmony GTO
Product or component typeAdvanced touchscreen panel
Display colour65536 colours
Display size10.4 inch
SupplyExternal source
Battery typeLithium battery for internal RAM, autonomy: 100 days, charging time = 5 day(s), battery life = 10 year(s)
Processor nameARM926EJ-S
Software packageVijeo Designer
Terminal typeTouchscreen display
Display typeBacklit colour TFT LCD
Display resolution640 x 480 pixels VGA
Touch sensitive zone1024 x 1024
Touch panelResistive film, 1000000 cycles
Backlight lifespan50000 hours white at 25 °C
Brightness16 levels - control by touch panel, 16 levels - control by software
Character fontChinese (simplified Chinese), Japanese (ANK, Kanji), Korean, ASCII, Taiwanese (traditional Chinese)
[Us] rated supply voltage24 V DC
Supply voltage limits19.2…28.8 V
Inrush current30 A
Maximum power consumption in W12 W when power is not supplied to external devices, 7 W when backlight is OFF, 8 W when backlight is dimmed, 17 W
Local signallingStatus LED green, steady for offline, Status LED green, steady for operating, Status LED orange, flashing for software starting up, Status LED red, steady for power supply (ON), Status LED clear, faded for power supply (OFF), COM2 LED yellow, steady for data is being transmitted, COM2 LED yellow, faded for no data transmission, SD card LED green, steady for card is inserted, SD card LED green, faded for card is not inserted or is not being accessed
Memory descriptionFlash EPROM, 96 MB
Data backed up512 KB internal RAM (SRAM)
Data storage equipmentSD card, <= 32 GB, SDHC card, <= 32 GB
Downloadable protocolsSchneider Electric Modicon Modbus, Schneider Electric Modicon Uni-TE, Schneider Electric Modicon Modbus Plus, Schneider Electric Modicon FIPWAY, Mitsubishi Melsec third party protocols, Omron Sysmac third party protocols, Rockwell Automation Allen-Bradley third party protocols, Siemens Simatic third party protocols, Schneider Electric Modicon Modbus TCP
Integrated connection typeCOM1 serial link SUB-D 9, interface: RS232C, transmission rate: 2400...115200 bps, COM2 serial link RJ45, interface: RS485, transmission rate: 2400...115200 bps, COM2 serial link RJ45, interface: RS485, transmission rate: 187.5 kbps compatible with Siemens MPI, Ethernet RJ45, interface: 10BASE-T/100BASE-TX, Ethernet RJ45, interface: IEEE 802.3, USB 2.0 type A, USB 2.0 type mini B
Product mountingFlush mounting
Fixing modeBy 4 screw clamps
Front materialPPT
Enclosure materialPPT
Type of coolingNatural convection
Width272.5 mm
Height214.5 mm
Depth57 mm
Net weight2 kg
StandardsUL 508, IEC 61131-2, IEC 61000-6-2
Product certificationscULus, CE, C-Tick, KCC, UKCA, UKEX
Ambient air temperature for operation0…55 °C
Ambient air temperature for storage-20…60 °C
Relative humidity10…90 % without condensation
Operating altitude< 2000 m
IP degree of protectionIP20 (rear panel) conforming to IEC 60529, IP65 (front panel) conforming to IEC 60529
NEMA degree of protectionNEMA 4X front panel (indoor use)
Shock resistance147 m/s² 3 chocks in each direction X, Y and Z conforming to IEC 61131-2
Vibration resistance3.5 mm (f = 5…9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to IEC 61131-2, 1 gn (f = 9…150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to IEC 61131-2
Resistance to electrostatic discharge6 kV contact discharge conforming to IEC 61000-4-2 level 3

Packaging

Package 11 PCE, 35.500 cm × 30.000 cm × 17.500 cm (L × W × H), 2.625 kg
Package 230 P12, 120.000 cm × 80.000 cm × 82.000 cm (L × W × H), 100.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

HMIGTO5310: frequently asked questions

When can HMIGTO5310 be shipped?

HMIGTO5310 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up HMIGTO5310 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for HMIGTO5310 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for HMIGTO5310, subject to availability and destination.
