Schneider Electric GCR_V321

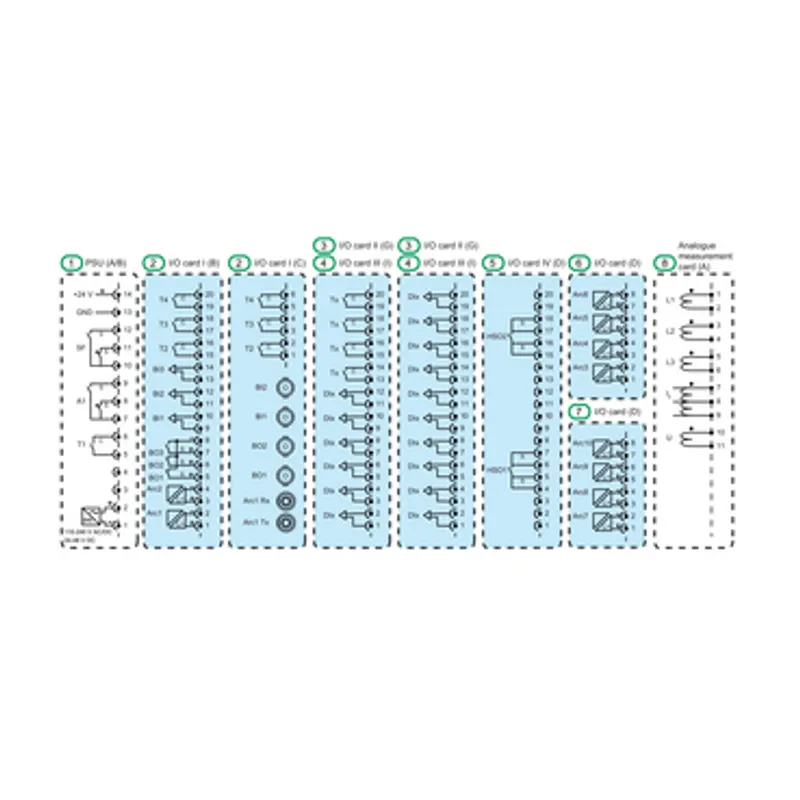

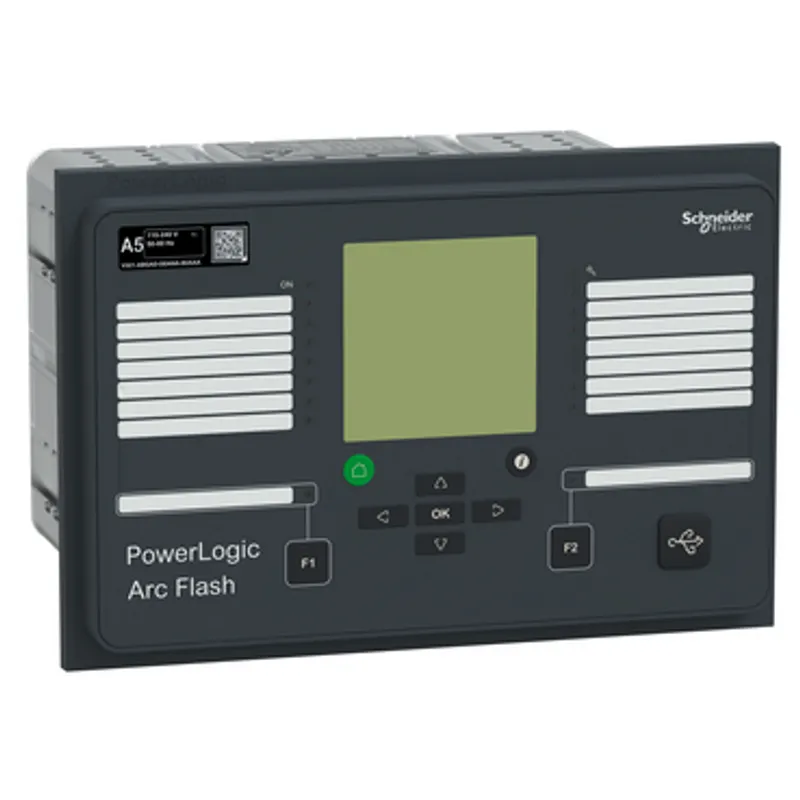

PowerLogic A5-V321 arc flash advance system Protection Relay structure
- MPN
- GCR_V321
- EAN
- 3606487309352
- Category
- PowerLogic™ A5 Arc Protection
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric GCR_V321?
Schneider Electric PowerLogic A5-V321 arc flash advance system Protection Relay structure, manufacturer part number GCR_V321. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PowerLogic |
| Product name | PowerLogic Arc |
| Device short name | V321, A5-V321 |
| Product or component type | Arc fault detection device |
| Relay application | Arc flash |
| Protection type | Arc suppression 54ARC, Programmable logic |
| number of inputs | 0 digital, 6 digital, 12 digital, 30 digital, 40 digital, 0 binary, 3 binary, 1 arc sensor, 2 arc sensor, 3 arc sensor, 4 arc sensor, 5 arc sensor, 6 arc sensor, 7 arc sensor, 8 arc sensor, 9 arc sensor, 10 arc sensor, 4 1/5 A CT, 1 for USB port |
| number of outputs | 0 digital, 4 digital, 8 digital, 16 digital, 0 binary, 3 binary, 2 control relay, 3 control relay |
| Type of measurement | Arc |
| control functions | Switchgear internal arc detection |
| Communication port protocol | TCP/IP, DNP3, DNP3 TCP, DeviceNet, Ethernet IP/Modbus TCP, Modbus RTU, Profibus DP |
| power supply | 110...230 V AC/DC, 24...48 V AC/DC |
| HMI | LED 14, LCD display |
| mounting | Flush, Rack mount |
| Connections - terminals | Removable screw terminal block |
| Height | 176 mm |
| Width | 270 mm |
| Depth | 230 mm |
| Net weight | 4.2 kg |
| Electromagnetic compatibility | Electromagnetic immunity conforming to IEC/EN 60255-26 ed. 3, Emission tests class A conforming to EN 55022, Electromagnetic immunity conforming to CISPR 22, Conducted and radiated emissions class A conforming to EN 55011, Emission tests conforming to IEC 60255-25, Electromagnetic immunity conforming to CISPR 11, Electromagnetic immunity conforming to CISPR 12, EMC immunity A conforming to IEC/EN 60255-26 ed. 3, Damped oscillatory wave conforming to EN/IEC 61000-4-18, Electrostatic discharge level 4 conforming to EN/IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test level 3 conforming to EN/IEC 61000-4-3, Electrical fast transient level 4 conforming to EN/IEC 61000-4-4, Surge immunity test level 4 conforming to EN/IEC 61000-4-5, Immunity to conducted interference caused by radio-electrical fields level 3 conforming to EN/IEC 61000-4-6, Immunity to magnetic fields conforming to EN/IEC 61000-4-8, Immunity to magnetic fields level 5 conforming to EN/IEC 61000-4-9, Immunity to voltage dips power lines (DC) conforming to EN/IEC 61000-4-29, Immunity to voltage dips conforming to EN/IEC 61000-4-11, Immunity to ripple conforming to EN/IEC 61000-4-17 |
| Standards | IEC 60255-2, EN 60255-27, IEC 60255-27 |
| IP degree of protection | IP20 conforming to IEC 60529, IP54 |
| Relative humidity | 0…95 % without condensation |
| Mechanical robustness | Vibrations (level: class 2) conforming to IEC 60255-21-1, Vibrations (level: Fc) conforming to IEC 60068-2-6, Shocks (level: class 2) conforming to IEC 60255-21-2, Shocks (level: Ea) conforming to IEC 60068-2-27, Earthquakes (level: criteria A) : level 2 conforming to IEC 60255-21-3 |
| Protective treatment | Conformal coating |
| Operating altitude | <= 2000 m |
| Environmental characteristic | Exposure to dry heat Bd conforming to EN/IEC 60068-2-2, Exposure to cold Ad conforming to EN/IEC 60068-2-1, Exposure to damp heat in service Db conforming to EN/IEC 60068-2-30, Exposure to damp heat in service Cab conforming to EN/IEC 60068-2-78, Temperature variation Nb conforming to IEC 60068-2-14 |
| Ambient air temperature for operation | -40…65 °C |
| Ambient air temperature for storage | -40…70 °C |
Packaging
| Package 1 | 1 PCE, 40 cm × 30 cm × 30 cm (L × W × H), 6.081 kg |
