DZ5CE0253DCable ends, Linergy TR cable ends, single conductor, Blue, 2.5mm², for insulated cable, long size, 10 sets of 100
Schneider Electric DZ5CE042D
Cable ends, Linergy TR cable ends, single conductor, grey, 0.5mm², for insulated cable, medium size, 10 sets of 100
- MPN
- DZ5CE042D
- EAN
- 3389110211412
- Category
- Linergy TR Cable ends
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

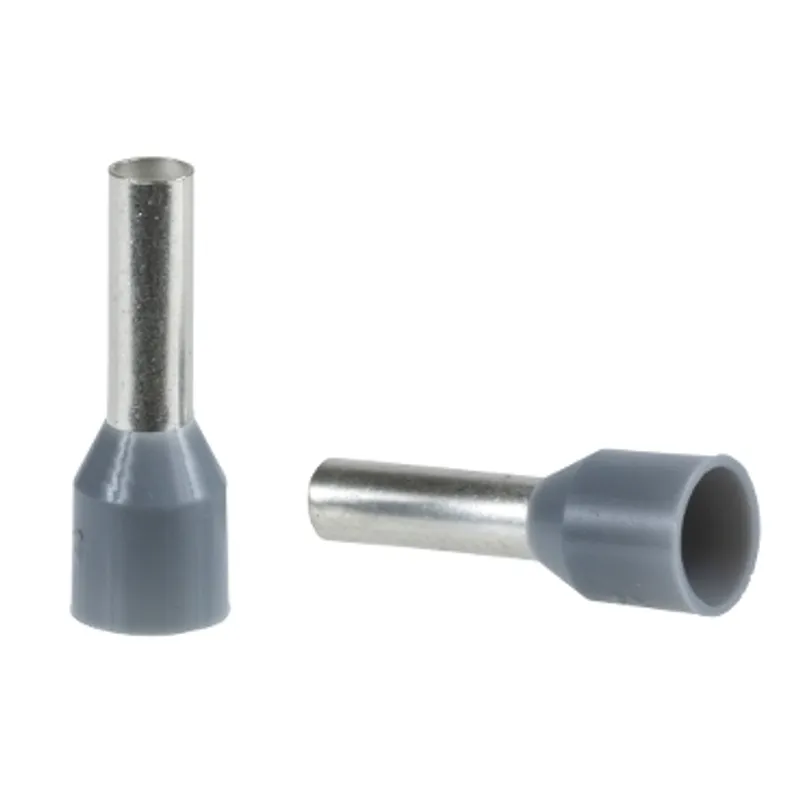

What is the Schneider Electric DZ5CE042D?
Linergy cable end insulated without marker tag holder. It applied to single conductor with 4 mm² cable cross section. It has grey surface treatment. It is medium size without marker tag holder. Packing by string of bags and quantity per set is 10 sets of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to DIN 46228-4 standard. It is UL certified. It is compliant with Green Premium (RoHS/REACH).
Specifications
Specifications
| Range of product | Linergy |
| Product or component type | Cable end |
| Cable end size | Medium |
| Standards | DIN 46228-4 |
| Type of packing | String of bags |
| Quantity per set | 10 sets of 100 |
| Cable cross section | 4 mm² |
| Cable end type | Single conductor |
| Additional information | Without marker tag holder |
| Colour | Grey |
| Bezel material | Halogen-free plastic |
| Tube material | Copper conforming to ISO 1337 |
| Number of cables | 1 |
| AWG gauge | AWG 12 |
| Bezel size | Ø 5.4 mm |
| Tube diameter | 3.2 mm |
| Length | 17 mm |
| Tube length | 10 mm |
| Net weight | 0.3 kg |
| Product certifications | UL |
| Ambient air temperature for operation | -20…105 °C |
Packaging
| Package 1 | 1 PCE, 1.400 cm × 0.400 cm × 0.400 cm (L × W × H), 0.200 g |
| Package 2 | 1000 BB1, 18.000 cm × 11.000 cm × 2.500 cm (L × W × H), 274.000 g |
| Package 3 | 7000 S01, 40.000 cm × 15.000 cm × 15.000 cm (L × W × H), 2.100 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
DZ5CE042D: frequently asked questions
When can DZ5CE042D be shipped?
DZ5CE042D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up DZ5CE042D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for DZ5CE042D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DZ5CE042D, subject to availability and destination.
