Home / Schneider Electric / Linergy TR Cable ends / Schneider Electric DZ5CA162D
Schneider Electric

Schneider Electric DZ5CA162D

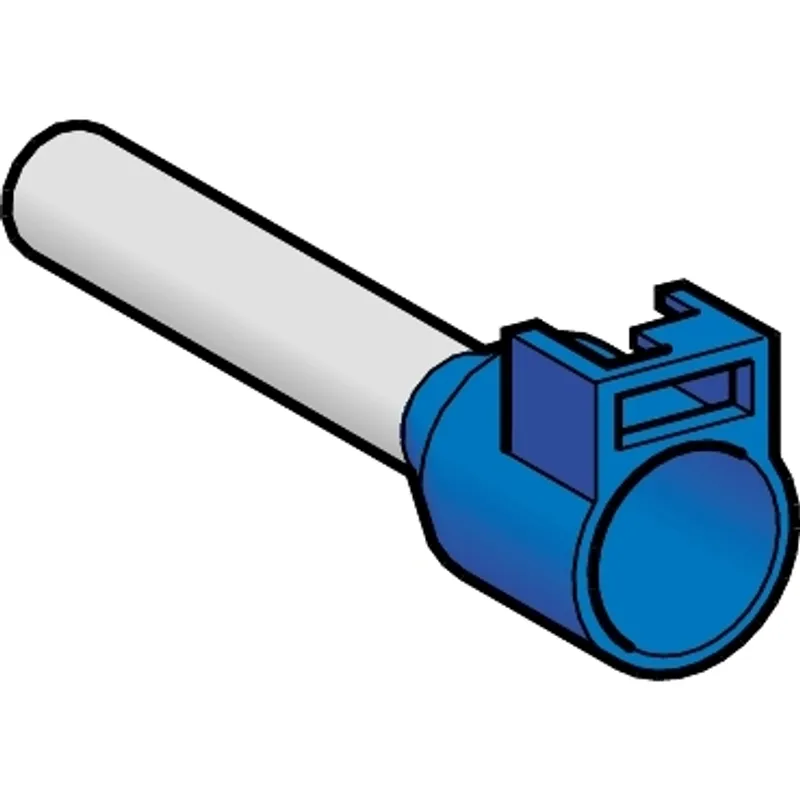

Cable end, Linergy TR cable ends, single conductor, blue, 16mm², for insulated cable, medium size, 10 sets of 100

MPN
DZ5CA162D
EAN
3389110211207
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original DZ5CA162D (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric DZ5CA162D?

Linergy cable end insulated for clip-in marker tag holder. It is applied to single conductor with 16 mm² cable cross section. It has blue surface treatment. It is medium size without marker tag holder. Packing by dispenser pack and quantity per 1 set of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to DIN 46228-4 standard.

Specifications

Specifications

Range of productLinergy
Product or component typeCable end
Cable end sizeMedium
StandardsDIN 46228-4
Type of packingBag
Quantity per setSet of 100
Cable cross section16 mm²
Cable end typeSingle conductor
Additional informationFor additional marker tag holder
ColourBlue
Bezel materialHalogen-free plastic
Tube materialCopper conforming to ISO 1337
Number of cables1
AWG gaugeAWG 6
Bezel sizeØ 9.6 mm
Tube diameter6.2 mm
Length24 mm
Tube length12 mm
CAD overall depth24 mm
Net weight0.08 kg
Ambient air temperature for operation-20…105 °C

Packaging

Package 11 PCE, 2.400 cm × 1.200 cm × 1.000 cm (L × W × H), 0.600 g
Package 2100 BB1, 12.000 cm × 8.500 cm × 4.000 cm (L × W × H), 67.000 g
Package 31500 S01, 40.000 cm × 15.000 cm × 15.000 cm (L × W × H), 1.199 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

DZ5CA162D: frequently asked questions

Can I still buy the DZ5CA162D now that it is discontinued?

Yes. Schneider Electric has discontinued the DZ5CA162D, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can DZ5CA162D be shipped?

DZ5CA162D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up DZ5CA162D in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for DZ5CA162D and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DZ5CA162D, subject to availability and destination.
