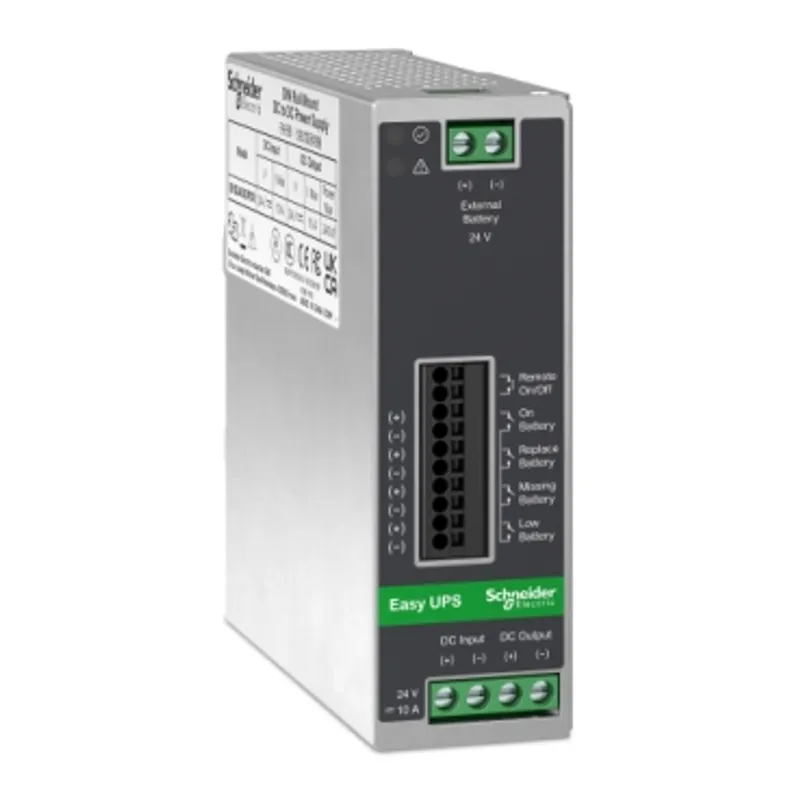

Schneider Electric BVS480XDPDR

Easy UPS control module, 24V DC-DC, DIN Rail, Industrial, 20A

MPN
BVS480XDPDR
EAN
0731304436959
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BVS480XDPDR?

The Industrial UPS BVS480XDPDR 24V DC DIN Rail is a part of the Schneider Electric's Easy UPS family. This model is a 480W UPS that offers DC input to DC output for industrial equipment support. It features 0-5V signaling relay contacts, up to 4 total external battery pack support, LED indicators and EPO switch for better control over the indutrial controls infrastructure. It comes with a 2-year standard warranty.

Specifications

Specifications

Main Input Voltage24 V DC
Product or component typeUninterruptible power supply (UPS)
Main Output Voltage24 V DC
Rated power in W480 W
Connections - terminals1 2 pins
Battery typeExternal battery system
Battery voltage24 V
Number of power module1
Provided equipmentUser manual
ColourMetal grey
Height129 mm
Width40 mm
Depth119 mm
Net weight0.5 kg
Mounting modeDIN rail mount
Mounting positionHorizontal
Number of input connectors1 terminal block 2-wire
Input voltage limits21.6...28.8 V 24 V DC
Maximum input current20 A
Input protection typeIntegrated fuse (not interchangeable), Against reverse polarity, Protected against short-circuit
Wave typeDC
Output overload operation60 seconds at 130% and 30 seconds at 145%
Efficiency95 %
Maximum output current20 A
Product certificationsCE, TÜV
StandardsUL 60950-1, IEC 62368-1, CSA-C22.2 No 62368-1-14, IEC 61010-1
Ambient air temperature for operation-15…50 °C
Relative humidity0…95 % non-condensing
Operating altitude0...3000 m
Ambient air temperature for storage-15…70 °C
Storage Relative Humidity0…95 % non-condensing
Storage altitude0…3000 m
Acoustic level40 dB
IP degree of protectionIP20

Packaging

Package 11 PCE, 18.800 cm × 5.700 cm × 19.000 cm (L × W × H), 521.000 g
Package 26 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 3.546 kg
Package 348 P12, 120.000 cm × 80.000 cm × 45.000 cm (L × W × H), 40.368 kg
