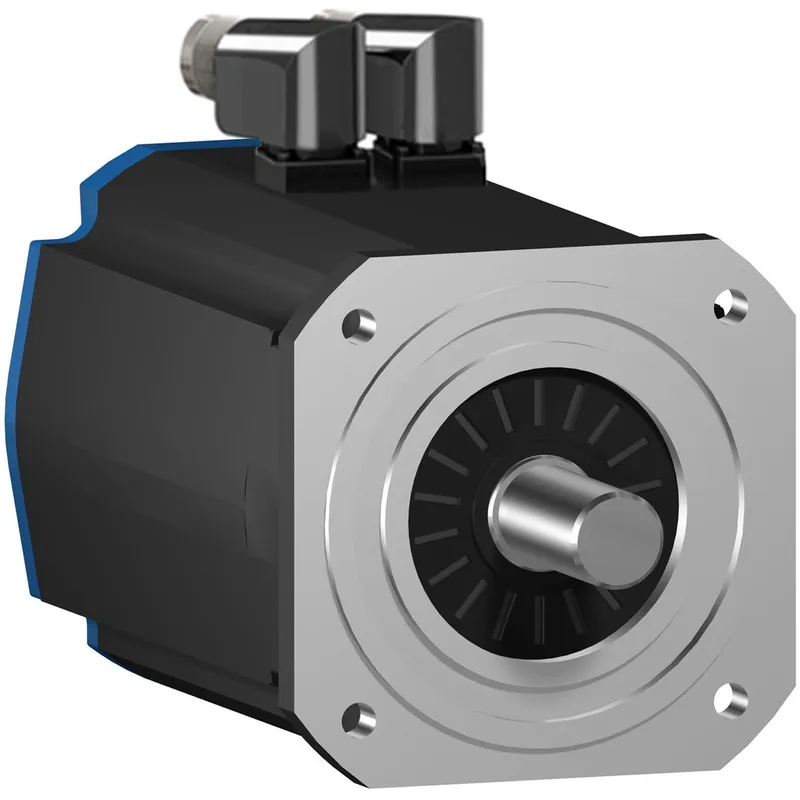

Schneider Electric BSH2053P01F3A – servo motor BSH, Lexium 15, 88N.m, 2000rpm, 205mm, untapped shaft, Sincos single turn, with brake, IP50
Discontinued by Schneider Electric — we can still source the original BSH2053P01F3A (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Lexium 15 |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| UPC / EAN | 3389118200586 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the BSH2053P01F3A now that it is discontinued?
Yes. Schneider Electric has discontinued the BSH2053P01F3A, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can BSH2053P01F3A be shipped?
BSH2053P01F3A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BSH2053P01F3A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BSH2053P01F3A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BSH2053P01F3A, subject to availability and destination.
Schneider Electric BSH2053P01F3A — servo motor BSH, Lexium 15, 88N.m, 2000rpm, 205mm, untapped shaft, Sincos single turn, with brake, IP50. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Device short name | BSH |
| Product or component type | Servo motor |
| Maximum mechanical speed | 3800 rpm |
| Continuous stall torque | 88 N.m for LXM15HC20N4X, 400 V, three phase; 88 N.m for LXM15HC20N4X, 480 V, three phase; 90 N.m for LXM15HC20N4X, 230 V, three phase |
| Peak stall torque | 330 N.m for LXM15HC20N4X, 480 V, three phase; 330 N.m for LXM15HC20N4X, 400 V, three phase; 202.96 N.m for LXM15HC20N4X, 230 V, three phase |
| Nominal output power | 7400 W for LXM15HC20N4X, 230 V, three phase; 9400 W for LXM15HC20N4X, 400 V, three phase; 9400 W for LXM15HC20N4X, 480 V, three phase |
| Nominal torque | 45 N.m for LXM15HC20N4X, 400 V, three phase; 45 N.m for LXM15HC20N4X, 480 V, three phase; 70.45 N.m for LXM15HC20N4X, 230 V, three phase |
| Nominal speed | 1000 rpm for LXM15HC20N4X, 230 V, three phase; 2000 rpm for LXM15HC20N4X, 400 V, three phase; 2000 rpm for LXM15HC20N4X, 480 V, three phase |
| Product compatibility | LXM15HC20N4X at 230 V three phase; LXM15HC20N4X at 400 V three phase; LXM15HC20N4X at 480 V three phase |
| Shaft end | Untapped |
| IP degree of protection | IP50 standard |
| Speed feedback resolution | 131072 points/turn |
| Holding brake | With |
| Mounting support | International standard flange |
| Electrical connection | Power connection terminal; Rotatable right-angled connectors |
Complementary
| Range compatibility | Lexium 15 |
| supply voltage max | 480 V |
| Network number of phases | Three phase |
| Continuous stall current | 31.9 A |
| maximum continuous power | 2.5 W |
| Maximum current Irms | 136.1 A for LXM15HC20N4X |
| Maximum permanent current | 136.1 A |
| Second shaft | Without second shaft end |
| Shaft diameter | 38 mm |
| Shaft length | 80 mm |
| Feedback type | Single turn SinCos Hiperface |
| Holding torque | 80 N.m holding brake |
| Motor flange size | 205 mm |
| Number of motor stacks | 3 |
| Torque constant | 2.76 N.m/A at 120 °C |
| Back emf constant | 172 V/krpm at 120 °C |
| Rotor inertia | 196 kg.cm² |
| Stator resistance | 0.2 Ohm at 20 °C |
| Stator inductance | 4.2 mH at 20 °C |
| Stator electrical time constant | 21 ms at 20 °C |
| Maximum radial force Fr | 3120 N at 3000 rpm; 3570 N at 2000 rpm; 4500 N at 1000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Brake pull-in power | 40 W |
| Type of cooling | Natural convection |
| Length | 538.5 mm |
| Centring collar diameter | 180 mm |
| Centring collar depth | 4 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 14 mm |
| Circle diameter of the mounting holes | 215 mm |
| Net weight | 70.6 kg |
| Sizing reference | BSH2053P |
| Network number of phases | 3 |
| Accuracy error [angular] | 1.4 ° |
| Temperature copper hot | 120 °C |
| Temperature magnet hot | 100 °C |
| Temperature magnet rt | 20 °C |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet BSH2053P01F3A |
