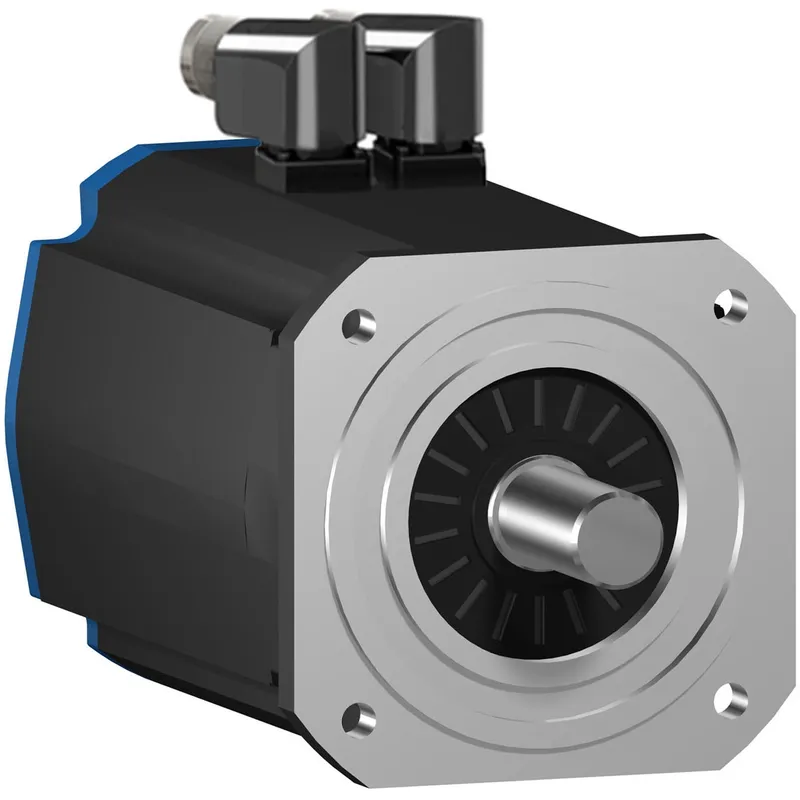

Schneider Electric BSH2051M22F2A – servo motor BSH, Lexium 05, 36N.m, 1500rpm, 205mm, untapped shaft, Sincos multi turn, with brake, IP65

Name: Schneider Electric BSH2051M22F2A – servo motor BSH, Lexium 05, 36N.m, 1500rpm, 205mm, untapped shaft, Sincos multi turn, with brake, IP65
Brand: Schneider Electric
SKU: BSH2051M22F2A

MPN: BSH2051M22F2A · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original BSH2051M22F2A (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lexium 05
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3389118159990
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the BSH2051M22F2A now that it is discontinued?

Yes. Schneider Electric has discontinued the BSH2051M22F2A, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can BSH2051M22F2A be shipped?

BSH2051M22F2A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BSH2051M22F2A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BSH2051M22F2A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BSH2051M22F2A, subject to availability and destination.

Schneider Electric BSH2051M22F2A — servo motor BSH, Lexium 05, 36N.m, 1500rpm, 205mm, untapped shaft, Sincos multi turn, with brake, IP65. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Device short name	BSH
Product or component type	Servo motor
Maximum mechanical speed	3800 rpm
Continuous stall torque	36 N.m for LXM15MD40N4, 400 V, three phase; 36 N.m for LXM15MD40N4, 480 V, three phase; 36 N.m for LXM15MD56N4, 400 V, three phase; 36 N.m for LXM15MD56N4, 480 V, three phase; 36 N.m for LXM15HC11N4X, 400 V, three phase; 36 N.m for LXM15HC11N4X, 480 V, three phase; 34.4 N.m for LXM05AD57N4, 380...480 V, three phase; 34.4 N.m for LXM05BD57N4, 380...480 V, three phase; 34.4 N.m for LXM05CD57N4, 380...480 V, three phase
Peak stall torque	68.33 N.m for LXM15MD40N4, 400 V, three phase; 68.33 N.m for LXM15MD40N4, 480 V, three phase; 68.33 N.m for LXM15MD56N4, 400 V, three phase; 68.33 N.m for LXM15MD56N4, 480 V, three phase; 68.33 N.m for LXM15HC11N4X, 400 V, three phase; 68.33 N.m for LXM15HC11N4X, 480 V, three phase; 110 N.m for LXM05AD57N4, 380...480 V, three phase; 110 N.m for LXM05BD57N4, 380...480 V, three phase; 110 N.m for LXM05CD57N4, 380...480 V, three phase
Nominal output power	4500 W for LXM05AD57N4, 380...480 V, three phase; 4500 W for LXM05BD57N4, 380...480 V, three phase; 4500 W for LXM05CD57N4, 380...480 V, three phase; 5000 W for LXM15HC11N4X, 400 V, three phase; 5000 W for LXM15MD40N4, 400 V, three phase; 5000 W for LXM15MD56N4, 400 V, three phase; 5500 W for LXM15HC11N4X, 480 V, three phase; 5500 W for LXM15MD40N4, 480 V, three phase; 5500 W for LXM15MD56N4, 480 V, three phase
Nominal torque	28.2 N.m for LXM05AD57N4, 380...480 V, three phase; 28.2 N.m for LXM05BD57N4, 380...480 V, three phase; 28.2 N.m for LXM05CD57N4, 380...480 V, three phase; 31.2 N.m for LXM15HC11N4X, 480 V, three phase; 31.2 N.m for LXM15MD40N4, 480 V, three phase; 31.2 N.m for LXM15MD56N4, 480 V, three phase; 32 N.m for LXM15HC11N4X, 400 V, three phase; 32 N.m for LXM15MD40N4, 400 V, three phase; 32 N.m for LXM15MD56N4, 400 V, three phase
Nominal speed	1500 rpm for LXM15MD40N4, 400 V, three phase; 1500 rpm for LXM05AD57N4, 380...480 V, three phase; 1500 rpm for LXM05BD57N4, 380...480 V, three phase; 1500 rpm for LXM05CD57N4, 380...480 V, three phase; 1500 rpm for LXM15HC11N4X, 400 V, three phase; 1500 rpm for LXM15MD56N4, 400 V, three phase; 1700 rpm for LXM15HC11N4X, 480 V, three phase; 1700 rpm for LXM15MD40N4, 480 V, three phase; 1700 rpm for LXM15MD56N4, 480 V, three phase
Product compatibility	LXM15MD40N4 at 400 V three phase; LXM15MD40N4 at 480 V three phase; LXM05AD57N4 at 380...480 V three phase; LXM05BD57N4 at 380...480 V three phase; LXM05CD57N4 at 380...480 V three phase; LXM15MD56N4 at 400 V three phase; LXM15MD56N4 at 480 V three phase; LXM15HC11N4X at 400 V three phase; LXM15HC11N4X at 480 V three phase
Shaft end	Untapped
IP degree of protection	IP65 standard; IP67 with IP67 kit
Speed feedback resolution	131072 points/turn x 4096 turns
Holding brake	With
Mounting support	International standard flange
Electrical connection	Rotatable right-angled connectors

Complementary

Range compatibility	Lexium 15; Lexium 05
supply voltage max	480 V
Network number of phases	Three phase
Continuous stall current	11.1 A
maximum continuous power	7.44 W
Maximum current Irms	40.4 A for LXM15MD40N4; 40.4 A for LXM15MD56N4; 40.4 A for LXM15HC11N4X; 40.4 A for LXM05AD57N4; 40.4 A for LXM05BD57N4; 40.4 A for LXM05CD57N4
Maximum permanent current	45.2 A
Switching frequency	4 kHz
Second shaft	Without second shaft end
Shaft diameter	38 mm
Shaft length	80 mm
Feedback type	Multiturn SinCos Hiperface
Holding torque	80 N.m holding brake
Motor flange size	205 mm
Number of motor stacks	1
Torque constant	3.3 N.m/A at 120 °C
Back emf constant	208 V/krpm at 120 °C
Rotor inertia	93 kg.cm²
Stator resistance	1.1 Ohm at 20 °C
Stator inductance	21.3 mH at 20 °C
Stator electrical time constant	19.36 ms at 20 °C; 19.4 ms at 20 °C
Maximum radial force Fr	2580 N at 3000 rpm; 2960 N at 2000 rpm; 3730 N at 1000 rpm
Maximum axial force Fa	0.2 x Fr
Brake pull-in power	40 W
Type of cooling	Natural convection
Length	370.5 mm
Centring collar diameter	180 mm
Centring collar depth	4 mm
Number of mounting holes	4
Mounting holes diameter	14 mm
Circle diameter of the mounting holes	215 mm
Net weight	38.6 kg
Sizing reference	BSH2051M
Network number of phases	3
Accuracy error [angular]	1.4 °
Temperature copper hot	120 °C
Temperature magnet hot	100 °C
Temperature magnet rt	20 °C
