Schneider Electric BSH0703S0049

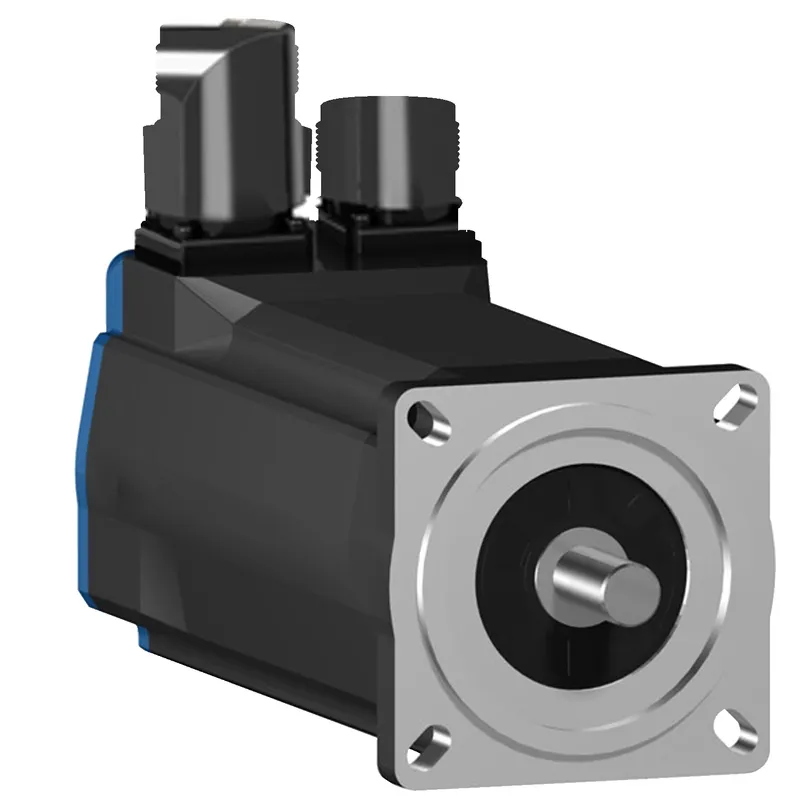

Servo motor BSH, Lexium 05, 70mm, IP50, With key

MPN
BSH0703S0049
EAN
3606485403373
Category
Lexium 05
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original BSH0703S0049 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BSH0703S0049?

Schneider Electric BSH0703S0049 — servo motor BSH, Lexium 05, 70mm, IP50, With key. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Device short nameBSH
Product or component typeServo motor
Maximum mechanical speed8000 rpm
IP degree of protectionIP50 standard
Mounting supportInternational standard flange

Complementary

Range compatibilityLexium 15; Lexium 05; Lexium 32
supply voltage max480 V
Network number of phasesThree phase
maximum continuous power1.7 W
Maximum permanent current29.2 A
Switching frequency8 kHz
Second shaftWithout second shaft end
Shaft diameter14 mm
Shaft length30 mm
Motor flange size70 mm
Number of motor stacks3
Torque constant0.44 N.m/A at 120 °C
Back emf constant29 V/krpm at 120 °C
Number of motor poles6
Stator resistance0.91 Ohm at 20 °C
Stator inductance4.4 mH at 20 °C
Stator electrical time constant4.84 ms at 20 °C
Maximum axial force Fa0.2 x Fr
Type of coolingNatural convection
Centring collar diameter60 mm
Centring collar depth2.5 mm
Number of mounting holes4
Mounting holes diameter5.5 mm
Circle diameter of the mounting holes82 mm
Network number of phases3
Accuracy error [angular]1.4 °
Temperature copper hot120 °C
Temperature magnet hot100 °C
Temperature magnet rt20 °C

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

BSH0703S0049: frequently asked questions

Can I still buy the BSH0703S0049 now that it is discontinued?

Yes. Schneider Electric has discontinued the BSH0703S0049, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can BSH0703S0049 be shipped?

BSH0703S0049 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BSH0703S0049 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BSH0703S0049 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BSH0703S0049, subject to availability and destination.
