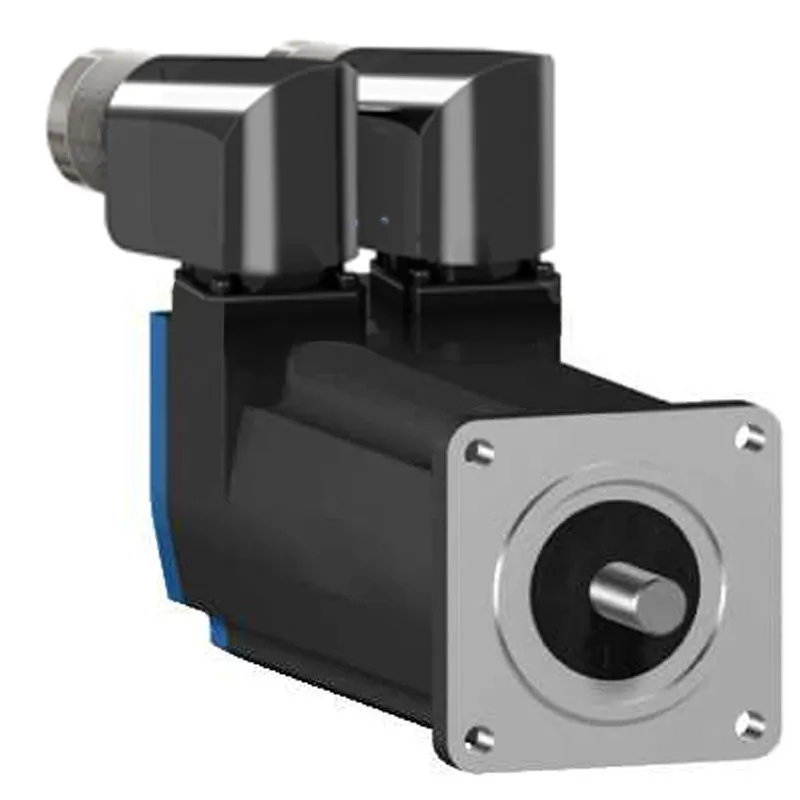

Schneider Electric BSH0551T12A2A – AC servo motor BSH - 0.5 N.m - 8000 rpm - keyed shaft - without brake - IP50

Name: Schneider Electric BSH0551T12A2A – AC servo motor BSH - 0.5 N.m - 8000 rpm - keyed shaft - without brake - IP50
Brand: Schneider Electric
SKU: BSH0551T12A2A

MPN: BSH0551T12A2A · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original BSH0551T12A2A (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lexium 05
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3389118158443
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the BSH0551T12A2A now that it is discontinued?

Yes. Schneider Electric has discontinued the BSH0551T12A2A, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can BSH0551T12A2A be shipped?

BSH0551T12A2A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BSH0551T12A2A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BSH0551T12A2A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BSH0551T12A2A, subject to availability and destination.

Schneider Electric BSH0551T12A2A — AC servo motor BSH - 0.5 N.m - 8000 rpm - keyed shaft - without brake - IP50 (Lexium 05). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Device short name	BSH
Product or component type	Servo motor
Maximum mechanical speed	9000 rpm
Continuous stall torque	0.5 N.m for LXM32.U90M2 at 3 A, 115 V, single phase; 0.5 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase; 0.5 N.m for LXM05CU70M2, 200...240 V, single phase; 0.5 N.m for LXM05AD10F1, 110...120 V, single phase; 0.5 N.m for LXM05AD10M2, 200...240 V, single phase; 0.5 N.m for LXM05BD10F1 at 1.5 A, 110...120 V, single phase; 0.5 N.m for LXM05BD10M2, 200...240 V, single phase; 0.5 N.m for LXM05CD10F1, 110...120 V, single phase; 0.5 N.m for LXM05CD10M2, 200...240 V, single phase; 0.5 N.m for LXM15LD13M3, 230 V, three phase; 0.5 N.m for LXM05AD10M3X, 200...240 V, three phase; 0.5 N.m for LXM05BD10M3X, 200...240 V, three phase; 0.5 N.m for LXM05CD10M3X, 200...240 V, three phase
Peak stall torque	1.5 N.m for LXM32.U90M2 at 3 A, 115 V, single phase; 1.4 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase; 1.08 N.m for LXM05CU70M2, 200...240 V, single phase; 1.4 N.m for LXM05AD10F1, 110...120 V, single phase; 1.4 N.m for LXM05AD10M2, 200...240 V, single phase; 1.4 N.m for LXM05BD10F1 at 1.5 A, 110...120 V, single phase; 1.4 N.m for LXM05BD10M2, 200...240 V, single phase; 1.4 N.m for LXM05CD10F1, 110...120 V, single phase; 1.4 N.m for LXM05CD10M2, 200...240 V, single phase; 1.24 N.m for LXM15LD13M3, 230 V, three phase; 1.4 N.m for LXM05AD10M3X, 200...240 V, three phase; 1.4 N.m for LXM05BD10M3X, 200...240 V, three phase; 1.4 N.m for LXM05CD10M3X, 200...240 V, three phase
Nominal output power	150 W for LXM32.U90M2 at 3 A, 115 V, single phase; 300 W for LXM32.U45M2 at 1.5 A, 230 V, single phase; 150 W for LXM05AD10F1, 110...120 V, single phase; 150 W for LXM05BD10F1, 110...120 V, single phase; 150 W for LXM05CD10F1, 110...120 V, single phase; 150 W for LXM05CU70M2 at 1.5 A, 200...240 V, single phase; 270 W for LXM05AD10M2, 200...240 V, single phase; 270 W for LXM05BD10M2, 200...240 V, single phase; 270 W for LXM05CD10M2, 200...240 V, single phase; 270 W for LXM05AD10M3X, 200...240 V, three phase; 270 W for LXM05BD10M3X, 200...240 V, three phase; 270 W for LXM05CD10M3X, 200...240 V, three phase; 340 W for LXM15LD13M3, 230 V, three phase
Nominal torque	0.49 N.m for LXM32.U90M2 at 3 A, 115 V, single phase; 0.45 N.m for LXM32.U45M2 at 1.5 A, 230 V, single phase; 0.43 N.m for LXM05AD10M2, 200...240 V, single phase; 0.43 N.m for LXM05BD10M2, 200...240 V, single phase; 0.43 N.m for LXM05CD10M2, 200...240 V, single phase; 0.46 N.m for LXM05AD10F1 at 1.5 A, 110...120 V, single phase; 0.46 N.m for LXM05BD10F1, 110...120 V, single phase; 0.46 N.m for LXM05CD10F1, 110...120 V, single phase; 0.46 N.m for LXM05CU70M2, 200...240 V, single phase; 0.41 N.m for LXM15LD13M3, 230 V, three phase; 0.43 N.m for LXM05AD10M3X, 200...240 V, three phase; 0.43 N.m for LXM05BD10M3X, 200...240 V, three phase; 0.43 N.m for LXM05CD10M3X, 200...240 V, three phase
Nominal speed	3000 rpm for LXM32.U90M2 at 3 A, 115 V, single phase; 6000 rpm for LXM32.U45M2 at 1.5 A, 230 V, single phase; 3000 rpm for LXM05AD10F1, 110...120 V, single phase; 3000 rpm for LXM05BD10F1, 110...120 V, single phase; 3000 rpm for LXM05CD10F1, 110...120 V, single phase; 3000 rpm for LXM05CU70M2 at 1.5 A, 200...240 V, single phase; 6000 rpm for LXM05AD10M2, 200...240 V, single phase; 6000 rpm for LXM05BD10M2, 200...240 V, single phase; 6000 rpm for LXM05CD10M2, 200...240 V, single phase; 6000 rpm for LXM05AD10M3X, 200...240 V, three phase; 6000 rpm for LXM05BD10M3X, 200...240 V, three phase; 6000 rpm for LXM05CD10M3X, 200...240 V, three phase; 8000 rpm for LXM15LD13M3, 230 V, three phase
Product compatibility	LXM05AD10F1 at 110...120 V single phase; LXM05AD10M2 at 200...240 V single phase; LXM05BD10F1 at 110...120 V single phase; LXM05BD10M2 at 200...240 V single phase; LXM05CD10F1 at 110...120 V single phase; LXM05CD10M2 at 200...240 V single phase; LXM05CU70M2 at 200...240 V single phase; LXM32.U90M2 at 115 V single phase; LXM32.U45M2 at 230 V single phase; LXM05AD10M3X at 200...240 V three phase; LXM05BD10M3X at 200...240 V three phase; LXM05CD10M3X at 200...240 V three phase; LXM15LD13M3 at 230 V three phase
Shaft end	Keyed
IP degree of protection	IP50 standard
Speed feedback resolution	131072 points/turn x 4096 turns
Holding brake	Without
Mounting support	International standard flange
Electrical connection	Rotatable right-angled connectors

Complementary

Range compatibility	Lexium 05; Lexium 15; Lexium 32
supply voltage max	480 V
Network number of phases	Three phase
Continuous stall current	1.4 A
maximum continuous power	0.45 W
Maximum current Irms	6.2 A for LXM15LD13M3; 5.4 A for LXM05AD10F1; 5.4 A for LXM05CU70M2; 5.4 A for LXM05AD10M2; 5.4 A for LXM05AD10M3X; 5.4 A for LXM05BD10F1; 5.4 A for LXM05BD10M2; 5.4 A for LXM05BD10M3X; 5.4 A for LXM05CD10F1; 5.4 A for LXM05CD10M2; 5.4 A for LXM05CD10M3X; 5.4 A for LXM32.U90M2; 4.5 A for LXM32.U45M2
Maximum permanent current	5.4 A
Switching frequency	8 kHz
Second shaft	Without second shaft end
Shaft diameter	9 mm
Shaft length	20 mm
Key width	12 mm
Feedback type	Multiturn SinCos Hiperface
Motor flange size	55 mm
Number of motor stacks	1
Torque constant	0.36 N.m/A at 120 °C
Back emf constant	22 V/krpm at 120 °C
Number of motor poles	3.0
Rotor inertia	0.059 kg.cm²
Stator resistance	12.2 Ohm at 20 °C
Stator inductance	10.85 mH at 20 °C
Stator electrical time constant	1.7 ms at 20 °C
Maximum radial force Fr	170 N at 8000 rpm; 180 N at 7000 rpm; 190 N at 6000 rpm; 200 N at 5000 rpm; 220 N at 4000 rpm; 240 N at 3000 rpm; 270 N at 2000 rpm; 340 N at 1000 rpm
Maximum axial force Fa	0.2 x Fr
Type of cooling	Natural convection
Length	132.5 mm
Centring collar diameter	40 mm
Centring collar depth	2 mm
Number of mounting holes	4
Mounting holes diameter	5.5 mm
Circle diameter of the mounting holes	63 mm
Net weight	1.2 kg
Sizing reference	BSH0551T
Network number of phases	3
Accuracy error [angular]	1.4 °
Temperature copper hot	120 °C
Temperature magnet hot	100 °C
Temperature magnet rt	20 °C
Output current 3s peak	5.4 A
Inertia	0.0 kg.cm² of brake; 0.059 kg.cm² of motor
