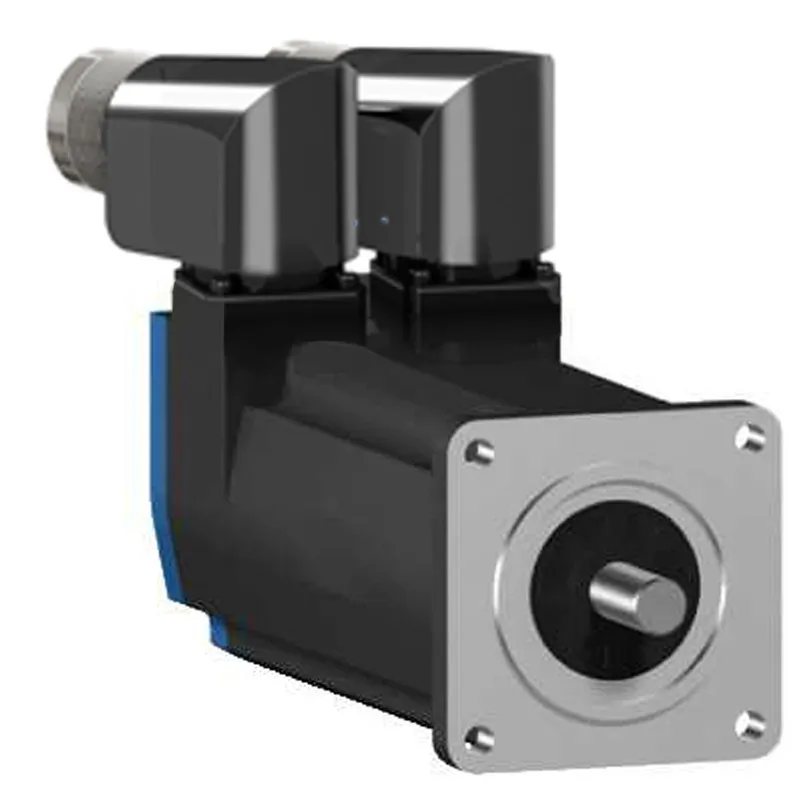

Schneider Electric BSH0551P11A2A – AC servo motor BSH - 0.5 N.m - 4000 rpm - keyed shaft - without brake - IP50

Name: Schneider Electric BSH0551P11A2A – AC servo motor BSH - 0.5 N.m - 4000 rpm - keyed shaft - without brake - IP50
Brand: Schneider Electric
SKU: BSH0551P11A2A

MPN: BSH0551P11A2A · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original BSH0551P11A2A (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lexium 15
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3389118198593
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the BSH0551P11A2A now that it is discontinued?

Yes. Schneider Electric has discontinued the BSH0551P11A2A, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can BSH0551P11A2A be shipped?

BSH0551P11A2A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BSH0551P11A2A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BSH0551P11A2A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BSH0551P11A2A, subject to availability and destination.

This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 6-pole AC servo motor features maximum mechanical speed of 9000RPM and keyed shaft end without holding brake. It is an equipped with a single-turn SinCos Hiperface® feedback with 1,31,072 points/turn speed feedback resolution. It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 0.73A and a continuous power of 0.45W. The shaft dimensions are 9mm (diameter) x 20mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP50 standard rated product. The length of this product is 132.5mm and the centering collar dimensions are 2mm (depth) x 40mm (diameter) with 63mm mounting hole. It weighs 1.2kg. This range is compatible with Lexium 32 and Lexium 15 servo drives. This product is compatible with LXM15LD13M3 at 230V single phase, LXM15LU60N4 at 230V three phase. It supports 55mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Device short name	BSH
Product or component type	Servo motor
Maximum mechanical speed	9000 rpm
Continuous stall torque	0.5 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 0.5 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 0.5 N.m for LXM15LD13M3, 230 V, single phase; 0.5 N.m for LXM15LU60N4, 230 V, three phase
Peak stall torque	1.5 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 1.5 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 1.4 N.m for LXM15LD13M3, 230 V, single phase; 1.4 N.m for LXM15LU60N4, 230 V, three phase
Nominal output power	300 W for LXM32.U60N4 at 1.5 A, 400 V, three phase; 300 W for LXM32.U60N4 at 1.5 A, 480 V, three phase; 170 W for LXM15LD13M3, 230 V, single phase; 170 W for LXM15LU60N4, 230 V, three phase
Nominal torque	0.48 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 0.48 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 0.46 N.m for LXM15LD13M3, 230 V, single phase; 0.46 N.m for LXM15LU60N4, 230 V, three phase
Nominal speed	6000 rpm for LXM32.U60N4 at 1.5 A, 400 V, three phase; 6000 rpm for LXM32.U60N4 at 1.5 A, 480 V, three phase; 4000 rpm for LXM15LD13M3, 230 V, single phase; 4000 rpm for LXM15LU60N4, 230 V, three phase
Product compatibility	LXM15LD13M3 at 230 V single phase; LXM15LU60N4 at 230 V three phase; LXM32.U60N4 at 400 V three phase; LXM32.U60N4 at 480 V three phase
Shaft end	Keyed
IP degree of protection	IP50 standard
Speed feedback resolution	131072 points/turn
Holding brake	Without
Mounting support	International standard flange
Electrical connection	Rotatable right-angled connectors

Complementary

Range compatibility	Lexium 32; Lexium 15
supply voltage max	480 V
Network number of phases	Three phase
Continuous stall current	0.73 A
maximum continuous power	0.45 W
Maximum current Irms	3.5 A for LXM15LD13M3; 3.5 A for LXM15LU60N4; 2.9 A for LXM32.U60N4
Maximum permanent current	2.9 A
Switching frequency	8 kHz
Second shaft	Without second shaft end
Shaft diameter	9 mm
Shaft length	20 mm
Key width	12 mm
Feedback type	Single turn SinCos Hiperface
Motor flange size	55 mm
Number of motor stacks	1
Torque constant	0.68 N.m/A at 120 °C
Back emf constant	40 V/krpm at 120 °C
Number of motor poles	3.0
Rotor inertia	0.059 kg.cm²
Stator resistance	41.8 Ohm at 20 °C
Stator inductance	37.13 mH at 20 °C
Stator electrical time constant	1.09 ms at 20 °C
Maximum radial force Fr	170 N at 8000 rpm; 180 N at 7000 rpm; 190 N at 6000 rpm; 200 N at 5000 rpm; 220 N at 4000 rpm; 240 N at 3000 rpm; 270 N at 2000 rpm; 340 N at 1000 rpm
Maximum axial force Fa	0.2 x Fr
Type of cooling	Natural convection
Length	132.5 mm
Centring collar diameter	40 mm
Centring collar depth	2 mm
Number of mounting holes	4
Mounting holes diameter	5.5 mm
Circle diameter of the mounting holes	63 mm
Net weight	1.2 kg
Sizing reference	BSH0551P
Network number of phases	3
Accuracy error [angular]	1.4 °
Temperature copper hot	120 °C
Temperature magnet hot	100 °C
Temperature magnet rt	20 °C
Output current 3s peak	2.9 A
Inertia	0.0 kg.cm² of brake; 0.059 kg.cm² of motor
