Schneider Electric BSH0551P01A2A

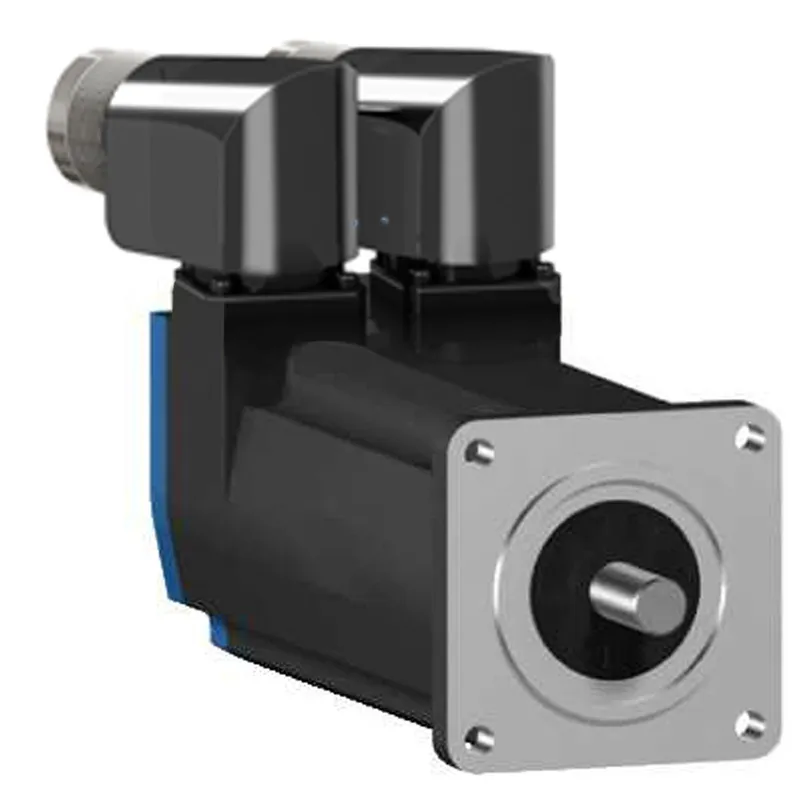

AC servo motor BSH - 0.5 N.m - 4000 rpm - untapped shaft - without brake - IP50

MPN
BSH0551P01A2A
EAN
3389118198517
Category
Lexium 15
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BSH0551P01A2A?

Schneider Electric BSH0551P01A2A — AC servo motor BSH - 0.5 N.m - 4000 rpm - untapped shaft - without brake - IP50 (Lexium 15). PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Device short nameBSH
Product or component typeServo motor
Maximum mechanical speed9000 rpm
Continuous stall torque0.5 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 0.5 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 0.5 N.m for LXM15LD13M3, 230 V, single phase; 0.5 N.m for LXM15LU60N4, 230 V, three phase
Peak stall torque1.5 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 1.5 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 1.4 N.m for LXM15LD13M3, 230 V, single phase; 1.4 N.m for LXM15LU60N4, 230 V, three phase
Nominal output power300 W for LXM32.U60N4 at 1.5 A, 400 V, three phase; 300 W for LXM32.U60N4 at 1.5 A, 480 V, three phase; 170 W for LXM15LD13M3, 230 V, single phase; 170 W for LXM15LU60N4, 230 V, three phase
Nominal torque0.48 N.m for LXM32.U60N4 at 1.5 A, 400 V, three phase; 0.48 N.m for LXM32.U60N4 at 1.5 A, 480 V, three phase; 0.46 N.m for LXM15LD13M3, 230 V, single phase; 0.46 N.m for LXM15LU60N4, 230 V, three phase
Nominal speed6000 rpm for LXM32.U60N4 at 1.5 A, 400 V, three phase; 6000 rpm for LXM32.U60N4 at 1.5 A, 480 V, three phase; 4000 rpm for LXM15LD13M3, 230 V, single phase; 4000 rpm for LXM15LU60N4, 230 V, three phase
Product compatibilityLXM15LD13M3 at 230 V single phase; LXM15LU60N4 at 230 V three phase; LXM32.U60N4 at 400 V three phase; LXM32.U60N4 at 480 V three phase
Shaft endUntapped
IP degree of protectionIP50 standard
Speed feedback resolution131072 points/turn
Holding brakeWithout
Mounting supportInternational standard flange
Electrical connectionRotatable right-angled connectors

Complementary

Range compatibilityLexium 15; Lexium 32
supply voltage max480 V
Network number of phasesThree phase
Continuous stall current0.73 A
maximum continuous power0.45 W
Maximum current Irms3.5 A for LXM15LD13M3; 3.5 A for LXM15LU60N4; 2.9 A for LXM32.U60N4
Maximum permanent current2.9 A
Switching frequency8 kHz
Second shaftWithout second shaft end
Shaft diameter9 mm
Shaft length20 mm
Feedback typeSingle turn SinCos Hiperface
Motor flange size55 mm
Number of motor stacks1
Torque constant0.68 N.m/A at 120 °C
Back emf constant40 V/krpm at 120 °C
Number of motor poles3.0
Rotor inertia0.059 kg.cm²
Stator resistance41.8 Ohm at 20 °C
Stator inductance37.13 mH at 20 °C
Stator electrical time constant1.09 ms at 20 °C
Maximum radial force Fr170 N at 8000 rpm; 180 N at 7000 rpm; 190 N at 6000 rpm; 200 N at 5000 rpm; 220 N at 4000 rpm; 240 N at 3000 rpm; 270 N at 2000 rpm; 340 N at 1000 rpm
Maximum axial force Fa0.2 x Fr
Type of coolingNatural convection
Length132.5 mm
Centring collar diameter40 mm
Centring collar depth2 mm
Number of mounting holes4
Mounting holes diameter5.5 mm
Circle diameter of the mounting holes63 mm
Net weight1.2 kg
Sizing referenceBSH0551P
Network number of phases3
Accuracy error [angular]1.4 °
Temperature copper hot120 °C
Temperature magnet hot100 °C
Temperature magnet rt20 °C
Output current 3s peak2.9 A
Inertia0.0 kg.cm² of brake; 0.059 kg.cm² of motor

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

BSH0551P01A2A: frequently asked questions

When can BSH0551P01A2A be shipped?

BSH0551P01A2A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BSH0551P01A2A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BSH0551P01A2A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BSH0551P01A2A, subject to availability and destination.
