Schneider Electric BR650MI

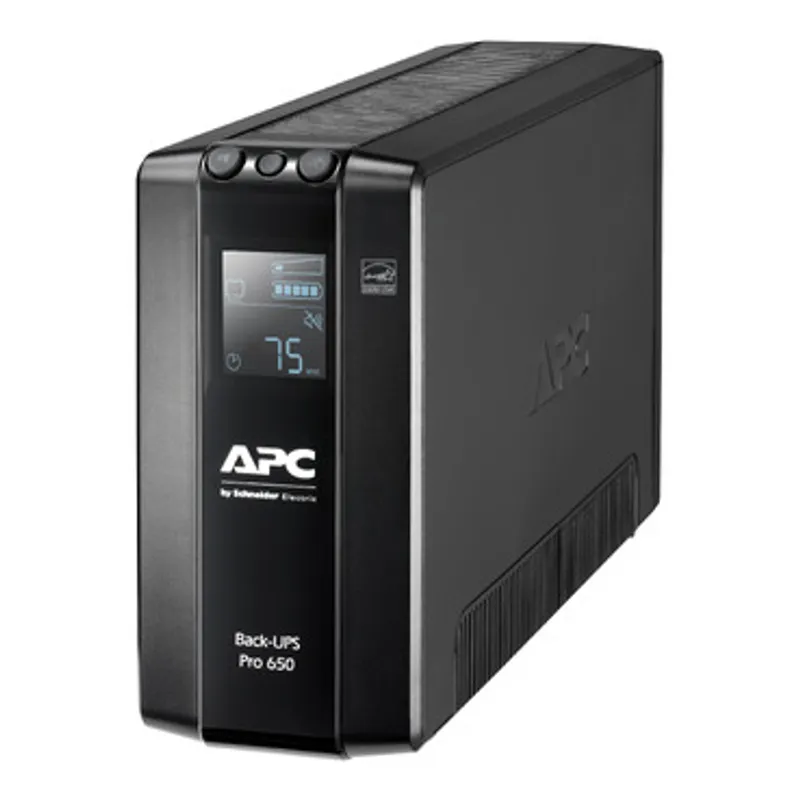

APC Back-UPS Pro, 650VA/390W, Tower, 230V, 6x IEC C13 outlets, AVR, LCD, User Replaceable Battery
- MPN
- BR650MI
- EAN
- 0731304346937
- Category
- APC Back-UPS Pro
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric BR650MI?
This APC Back-UPS Pro BR650MI offers premium power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. The 650VA tower UPS has 6 total outlets, 3 of which are battery back up and surge protection, and 3 that are surge protection only. It has a surge energy rating of 557 Joules. Its runtime at 100 Watts is 25 minutes. Its dimensions are 25 x 20 x 38,2 cm and 6,4 kg. The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics. This UPS has a 2-year warranty and CE product certification. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Specifications
Specifications
| Max. Capacity Used | |
| Main Input Voltage | 230 V AC 1 phase |
| Input Connection Type | IEC 60320 C13 |
| Maximum input current | 10 A |
| Switching current capacity | 10 A |
| Input voltage limits | 176...294 V |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output voltage | 230 V AC 1 phase |
| Rated power in W | 390 W |
| rated power in VA | 650 VA |
| Output connection type | 6 IEC 60320 C13 |
| USB Charging Port | None |
| Maximum configurable power in VA | 650 VA |
| Maximum configurable power in W | 390 W |
| Transfer time | 10 ms typical : 12 ms maximum |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
| Battery capacity | 7.0 Ah |
| Battery type | Lead-acid battery |
| Control panel | Multifunction LCD status and control console |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| UPS connectivity | USB port |
| Noise suppression | Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous |
| Height | 190 mm |
| Width | 91 mm |
| Depth | 310 mm |
| Net weight | 6.4 kg |
| Mounting preference | No preference |
| Mounting mode | Tower |
| Two post mountable | 0 |
| USB compatible | Yes |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Back-UPS Pro |
| Product or component type | Uninterruptible power supply (UPS) |
| Product certifications | A-Tick, C-Tick, CE, EAC, RCM, TISI |
| Marking | GS Mark |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| Acoustic level | 45 dBA |
| Heat dissipation | 13.3 Btu/h |
| Operating altitude | 0...10000 ft |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Battery voltage | 12 V |
| Extended runtime | 0 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 12 h |
| Number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC110 |
| Battery charger power | 6 W rated |
| SCC14 | 10731304346934 |
Packaging
| Package 1 | 1 PCE, 44 cm × 14.3 cm × 25.5 cm (L × W × H), 7.4 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
BR650MI: frequently asked questions
When can BR650MI be shipped?
BR650MI is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BR650MI in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BR650MI and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BR650MI, subject to availability and destination.
