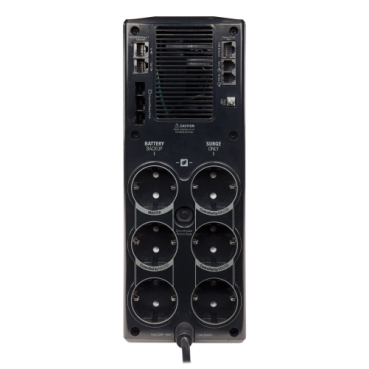

Schneider Electric BR1500G-GR
APC Back-UPS Pro, 1500VA/865W, Tower, 230V, 6x CEE 7/7 Schuko outlets, Sine Wave, AVR, LCD, User Replaceable Battery
- MPN
- BR1500G-GR
- Category
- APC Back-UPS Pro
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric BR1500G-GR?
This APC Back-UPS Pro offers premium power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. The 1500VA tower UPS has 6 total outlets, 3 of which are battery back up and surge protection, and 3 that are surge protection only. It has a surge energy rating of 441 Joules. Its dimensions are 11.9 x 4.4 x 15 inches and 28.3 lbs. The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics. This UPS has a 2-year warranty and CE product certification. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Specifications
Specifications
| Max. Capacity Used | |
| Main Input Voltage | 230 V AC 1 phase |
| Input voltage limits | 156...300 V adjustable, 176...294 V |
| Network frequency | 50 Hz +/- 1 Hz, 60 Hz +/- 1 Hz |
| Output voltage | 230 V AC 1 phase |
| Rated power in W | 865 W |
| rated power in VA | 1500 VA |
| Output connection type | 3 Schuko CEE 7, 3 Schuko CEE 7 surge |
| USB Charging Port | None |
| Maximum configurable power in VA | 1500 VA |
| Maximum configurable power in W | 865 W |
| Transfer time | 10 ms typical : 12 ms maximum |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains, 50/60 Hz +/- 1 Hz unsynchronised |
| Battery capacity | 9.0 Ah |
| Battery type | Lead-acid battery |
| Control panel | Multifunction LCD status and control console |
| UPS connectivity | USB port |
| Data line protection | RJ11 modem/fax/DSL protection (two wire single line) |
| Surge energy rate | 441 J |
| Cable length | 1.5 m |
| Height | 301 mm |
| Width | 112 mm |
| Depth | 382 mm |
| Net weight | 13 kg |
| Mounting preference | No preference |
| Mounting mode | Tower |
| Two post mountable | 0 |
| USB compatible | Yes |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Range of product | Back-UPS Pro |
| Product or component type | Uninterruptible power supply (UPS) |
| Product certifications | BSI 1363, CE, NEMKO |
| Equipment protection policy | Lifetime : 200000 AUD, Lifetime : 150000 euros, Lifetime : 75000 GBP |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| Acoustic level | 45 dBA |
| Operating altitude | 0...10000 ft |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Battery voltage | 24 V |
| Extended runtime | 0 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 8 h |
| Number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC124 |
| Battery charger power | 23 W rated |
| SCC14 | 10731304286872 |
Packaging
| Package 1 | 1 PCE, 48.500 cm × 39.000 cm × 24.000 cm (L × W × H), 13.880 kg |
| Package 2 | 6 P12, 120.000 cm × 80.000 cm × 90.000 cm (L × W × H), 95.280 kg |
No matching specifications
BR1500G-GR: frequently asked questions
When can BR1500G-GR be shipped?
BR1500G-GR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BR1500G-GR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BR1500G-GR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BR1500G-GR, subject to availability and destination.
