Schneider Electric BMI0702P01A – servo motor BMI 3-phase - untapped IP54 single turn - 131072 p/t
Discontinued by Schneider Electric — we can still source the original BMI0702P01A (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Lexium 32i |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| UPC / EAN | 3606485375649 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the BMI0702P01A now that it is discontinued?
Yes. Schneider Electric has discontinued the BMI0702P01A, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can BMI0702P01A be shipped?
BMI0702P01A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMI0702P01A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMI0702P01A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMI0702P01A, subject to availability and destination.
Schneider Electric BMI0702P01A — servo motor BMI 3-phase - untapped IP54 single turn - 131072 p/t (Lexium 32i). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range compatibility | Lexium 32i |
| Device short name | BMI |
| Product or component type | Servo motor with power stage |
Complementary
| Maximum mechanical speed | 8000 rpm |
| [Us] rated supply voltage | 208...480 V - 15...10 % |
| Supply voltage limits | 208…480 V |
| Network number of phases | Three phase |
| Supply frequency | 50/60 Hz - 5...5 % |
| Network frequency limits | 47.5…63 Hz |
| EMC filter | Integrated |
| Continuous output current | 2 A at 8 kHz |
| Output current 3s peak | 6 A at 400 V for 3 s |
| Continuous stall current | 2 A |
| Continuous stall torque | 2.48 N.m at 208...480 V three phase |
| Peak stall torque | 6.8 N.m at 208 V three phase; 6.8 N.m at 400 V three phase; 6.8 N.m at 480 V three phase |
| Nominal output power | 400 W at 208 V three phase; 800 W at 400 V three phase; 900 W at 480 V three phase |
| Nominal torque | 2.4 N.m at 208 V three phase; 2.2 N.m at 400 V three phase; 2 N.m at 480 V three phase |
| Nominal speed | 1800 rpm at 208 V three phase; 3600 rpm at 400 V three phase; 4400 rpm at 480 V three phase |
| Maximum current Irms | 9.6 A at 208 V, three phase; 9.6 A at 400 V, three phase; 9.6 A at 480 V, three phase |
| Product compatibility | Drive control unit LXM32i CANopen; Drive control unit LXM32i EtherCAT |
| Shaft end | Untapped |
| Second shaft | Without second shaft end |
| Shaft diameter | 11 mm |
| Shaft length | 23 mm |
| Feedback type | Absolute single turn SinCos Hiperface |
| Speed feedback resolution | 131072 points/turn |
| Holding brake | Without |
| Mounting support | International standard flange |
| Motor flange size | 70 mm |
| Electrical connection | Printed circuit board connector |
| Torque constant | 1.15 N.m/A at 20 °C |
| Back emf constant | 77.18 V/krpm at 20 °C |
| Number of motor poles | 10 |
| Rotor inertia | 1.13 kg.cm² |
| Stator resistance | 8.89 Ohm at 20 °C |
| Stator inductance | 25.75 mH at 20 °C |
| Stator electrical time constant | 2.9 ms at 20 °C |
| Maximum radial force Fr | 710 N at 1000 rpm; 560 N at 2000 rpm; 490 N at 3000 rpm; 450 N at 4000 rpm; 410 N at 5000 rpm; 390 N at 6000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Type of cooling | Natural convection |
| Length | 268 mm |
| Number of motor stacks | 2 |
| Centring collar diameter | 60 mm |
| Centring collar depth | 2.5 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 5.5 mm |
| Circle diameter of the mounting holes | 75…82 mm |
| Distance shaft shoulder-flange | 2.5 mm |
Environment
| IP degree of protection | Shaft: IP54; Housing: IP65 |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet BMI0702P01A |
More Schneider Electric parts
Available on requestservo motor BMH, Lexium 32, 84Nm, 3800rpm, keyed shaft, without brake, IP65, IP67, 16 multiturn encoder, straight
Available on requestservo motor BMH, Lexium 32, 84Nm, 3800rpm, keyed shaft, without brake, IP65, IP67, 16 multiturn encoder

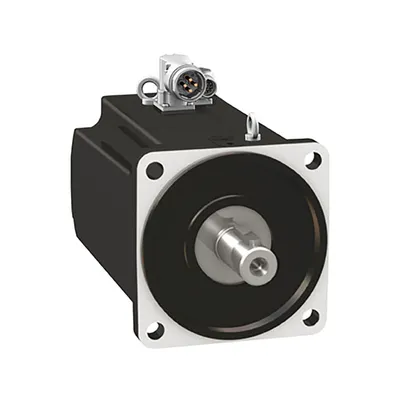

Available on requestservo motor BMH - 84 Nm - 3800 rpm - keyed shaft - with brake - IP65/IP67
