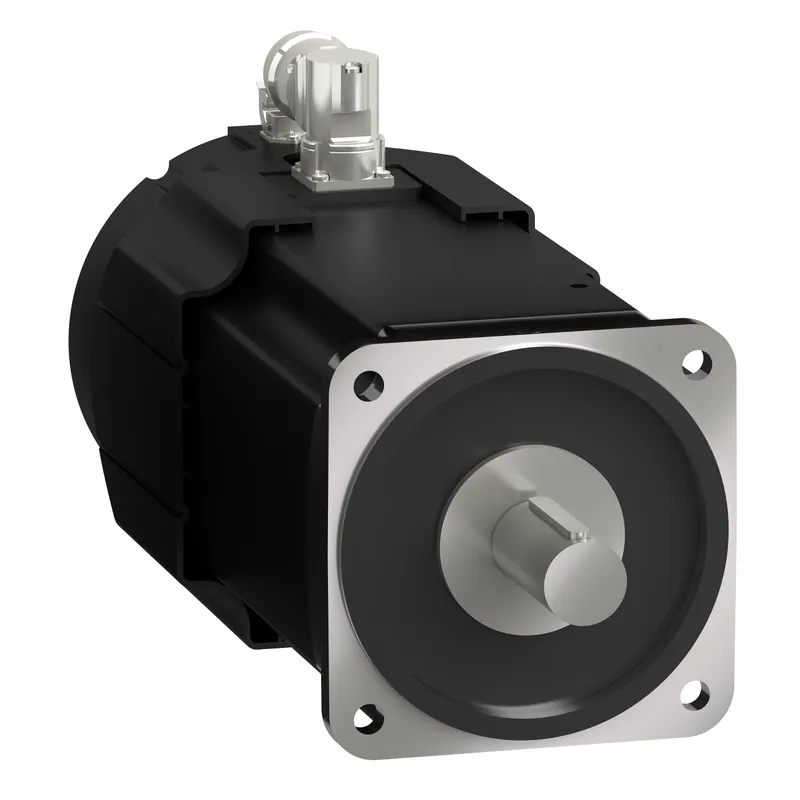

Schneider Electric BMH1904P32F2B – servo motor BMH - 100 Nm - 3000 rpm - untapped shaft - without brake - IP20/IP65

Name: Schneider Electric BMH1904P32F2B – servo motor BMH - 100 Nm - 3000 rpm - untapped shaft - without brake - IP20/IP65
Brand: Schneider Electric
SKU: BMH1904P32F2B

MPN: BMH1904P32F2B · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lexium 32 & Motors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3606481042002
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can BMH1904P32F2B be shipped?

BMH1904P32F2B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BMH1904P32F2B in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BMH1904P32F2B and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMH1904P32F2B, subject to availability and destination.

This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed of 3000RPM, parallel keyed shaft and holding brake. It is equipped with a SinCos Hiperface® encoder (131072 points/turn x 4096 turns) for automatic transmission of data from the servo motor to the servo drive. BMH servo motor is medium inertia motor, it is particularly suitable for high-load applications and allows the movement to be adjusted in a more robust manner. It is a synchronous servo motor with a rated supply voltage of 480V and a continuous stall current of 40A. The shaft dimensions are 38mm (Diameter) x 80mm (Length). It is furnished with rotatable right-angled connectors for electrical connection. It is an IP65 (standard) and IP20 (with fan module) rated product. Its dimensions are 523mm (Length) x 190mm (Width), centring collar dimensions are 4mm (Depth) x 180mm (Diameter) with 215mm circle diameter of the mounting hole. It weighs 64.2kg. This product is compatible with Lexium 32 servo drives. It supports international standard 190mm flange mount with a natural convection cooling system. Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the servo drive, which provides automatic identification of the motor when the servo drive starts. BMH servo motor with a 3-phase stator and neodymium iron boron (NdFeB) magnets. Casing with RAL 9005 opaque black paint protective coating. 4-point axial mounting flange. Cables and connectors to be ordered separately. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Device short name	BMH
Product or component type	Servo motor
Maximum mechanical speed	3000 rpm
Continuous stall torque	100 N.m for LXM32MC10N4 at 40 A, 400 V, three phase; 100 N.m for LXM32MC10N4 at 40 A, 480 V, three phase
Peak stall torque	230 N.m for LXM32MC10N4 at 40 A, 400 V, three phase; 230 N.m for LXM32MC10N4 at 40 A, 480 V, three phase
Nominal output power	16000 W for LXM32MC10N4 at 40 A, 400 V, three phase; 16000 W for LXM32MC10N4 at 40 A, 480 V, three phase
Nominal torque	76.4 N.m for LXM32MC10N4 at 40 A, 400 V, three phase; 76.4 N.m for LXM32MC10N4 at 40 A, 480 V, three phase
Nominal speed	2000 rpm for LXM32MC10N4 at 40 A, 400 V, three phase; 2000 rpm for LXM32MC10N4 at 40 A, 480 V, three phase
Shaft end	Keyed
IP degree of protection	IP65 standard; IP20 with fan module
Speed feedback resolution	131072 points/turn x 4096 turns
Holding brake	With
Mounting support	International standard flange
Electrical connection	Rotatable right-angled connectors

Complementary

Range compatibility	Lexium 32
[Us] rated supply voltage	480 V
Network number of phases	Three phase
Continuous stall current	40 A
Maximum current Irms	100 A for LXM32MC10N4; 100 A
Maximum permanent current	100 A
Second shaft	Without second shaft end
Shaft diameter	38 mm
Shaft length	80 mm
Key width	10 mm
Feedback type	Multiturn SinCos Hiperface
Holding torque	80 N.m holding brake
Motor flange size	190 mm
Number of motor stacks	4
Torque constant	2.5 N.m/A at 120 °C
Back emf constant	168 V/krpm at 120 °C
Number of motor poles	5.0
Rotor inertia	298.2 kg.cm²
Stator resistance	0.16 Ohm at 20 °C
Stator inductance	2.37 mH at 20 °C
Stator electrical time constant	29.6 ms at 20 °C
Maximum radial force Fr	3800 N at 1000 rpm; 3700 N at 2000 rpm; 3600 N at 3000 rpm
Maximum axial force Fa	0.2 x Fr
Brake pull-in power	40 W
Type of cooling	Fan
Length	523 mm
Centring collar diameter	180 mm
Centring collar depth	4 mm
Number of mounting holes	4
Mounting holes diameter	14 mm
Circle diameter of the mounting holes	215 mm
Net weight	64.2 kg
Sizing reference	BMH1904P
Network number of phases	3
Accuracy error [angular]	1.4 °
Temperature copper hot	135 °C
Temperature magnet hot	130 °C
Temperature magnet rt	20 °C
Output current 3s peak	100.0 A
Inertia	21.5 kg.cm² of brake; 276.7 kg.cm² of motor
