Schneider Electric BMH1904P21A2A

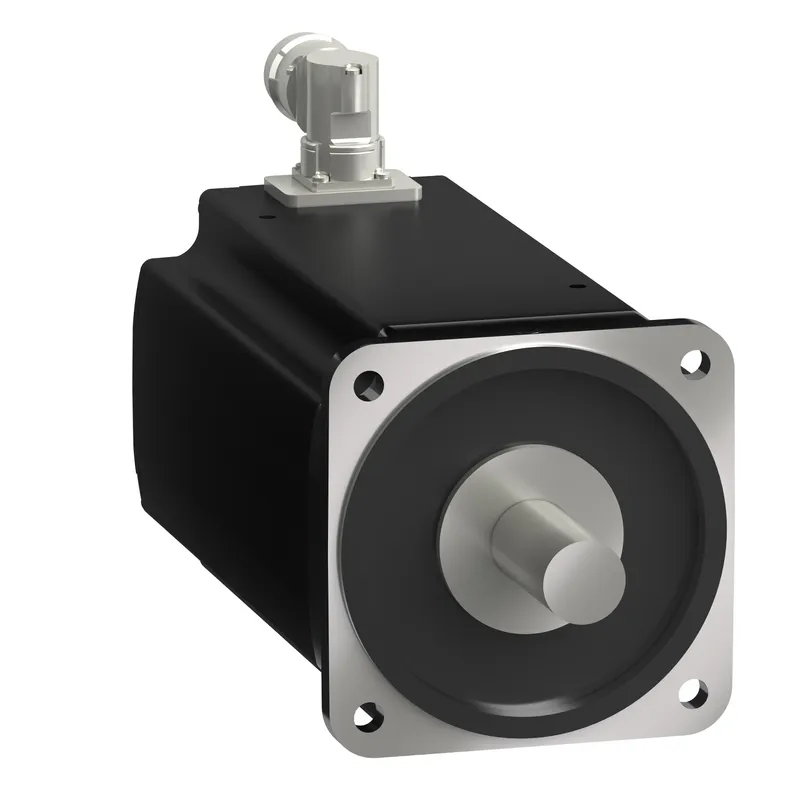

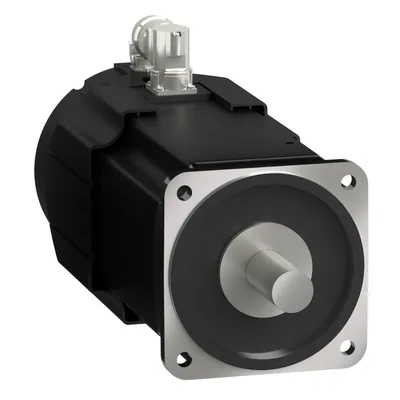

Servo motor BMH - 100 Nm - 3000 rpm - untapped shaft - without brake - IP65/IP67

MPN
BMH1904P21A2A
EAN
3606481041937
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMH1904P21A2A?

Schneider Electric BMH1904P21A2A — servo motor BMH - 100 Nm - 3000 rpm - untapped shaft - without brake - IP65/IP67 (Lexium 32 & Motors). PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Device short nameBMH
Product or component typeServo motor
Maximum mechanical speed3000 rpm
Continuous stall torque100 N.m for LXM32MC10N4 at 40 A, 400 V, three phase; 100 N.m for LXM32MC10N4 at 40 A, 480 V, three phase
Peak stall torque230 N.m for LXM32MC10N4 at 40 A, 400 V, three phase; 230 N.m for LXM32MC10N4 at 40 A, 480 V, three phase
Nominal output power9800 W for LXM32MC10N4 at 40 A, 400 V, three phase; 9800 W for LXM32MC10N4 at 40 A, 480 V, three phase
Nominal torque46.8 N.m for LXM32MC10N4 at 40 A, 400 V, three phase; 46.8 N.m for LXM32MC10N4 at 40 A, 480 V, three phase
Nominal speed2000 rpm for LXM32MC10N4 at 40 A, 400 V, three phase; 2000 rpm for LXM32MC10N4 at 40 A, 480 V, three phase
Shaft endSmooth shaft
IP degree of protectionIP65 standard; IP67 with IP67 kit
Speed feedback resolution131072 points/turn
Holding brakeWithout
Mounting supportInternational standard flange
Electrical connectionRotatable right-angled connectors

Complementary

Range compatibilityLexium 32
[Us] rated supply voltage480 V
Network number of phasesThree phase
Continuous stall current40 A
Maximum current Irms100 A for LXM32MC10N4; 100 A
Maximum permanent current100 A
Second shaftWithout second shaft end
Shaft diameter38 mm
Shaft length80 mm
Key width10 mm
Feedback typeSingle turn SinCos Hiperface
Motor flange size190 mm
Number of motor stacks4
Torque constant2.5 N.m/A at 120 °C
Back emf constant168 V/krpm at 120 °C
Number of motor poles5.0
Rotor inertia276.7 kg.cm²
Stator resistance0.16 Ohm at 20 °C
Stator inductance2.37 mH at 20 °C
Stator electrical time constant29.6 ms at 20 °C
Maximum radial force Fr3800 N at 1000 rpm; 3700 N at 2000 rpm; 3600 N at 3000 rpm
Maximum axial force Fa0.2 x Fr
Type of coolingNatural convection
Length383 mm
Centring collar diameter180 mm
Centring collar depth4 mm
Number of mounting holes4
Mounting holes diameter14 mm
Circle diameter of the mounting holes215 mm
Net weight55.8 kg
Sizing referenceBMH1904P
Network number of phases3
Accuracy error [angular]1.4 °
Temperature copper hot135 °C
Temperature magnet hot130 °C
Temperature magnet rt20 °C
Output current 3s peak100.0 A
Inertia0.0 kg.cm² of brake; 276.7 kg.cm² of motor

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

BMH1904P21A2A: frequently asked questions

When can BMH1904P21A2A be shipped?

BMH1904P21A2A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BMH1904P21A2A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BMH1904P21A2A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMH1904P21A2A, subject to availability and destination.
