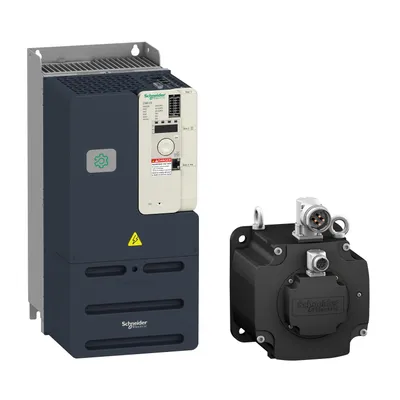

Schneider Electric BMH1902P21F2A – servo motor BMH - 48 Nm - 4000 rpm - untapped shaft - with brake - IP65/IP67

Name: Schneider Electric BMH1902P21F2A – servo motor BMH - 48 Nm - 4000 rpm - untapped shaft - with brake - IP65/IP67
Brand: Schneider Electric
SKU: BMH1902P21F2A

MPN: BMH1902P21F2A · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original BMH1902P21F2A (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lexium 32 & Motors
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3606485264165
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the BMH1902P21F2A now that it is discontinued?

Yes. Schneider Electric has discontinued the BMH1902P21F2A, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can BMH1902P21F2A be shipped?

BMH1902P21F2A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BMH1902P21F2A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BMH1902P21F2A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMH1902P21F2A, subject to availability and destination.

Schneider Electric BMH1902P21F2A — servo motor BMH - 48 Nm - 4000 rpm - untapped shaft - with brake - IP65/IP67 (Lexium 32 & Motors). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Device short name	BMH
Product or component type	Servo motor
Maximum mechanical speed	4000 rpm
Continuous stall torque	37.4 N.m for LXM32.D72N4 at 24 A, 400 V, three phase; 37.4 N.m for LXM32.D72N4 at 24 A, 480 V, three phase; 48 N.m for LXM32MD85N4 at 32 A, 400 V, three phase; 48 N.m for LXM32MD85N4 at 32 A, 480 V, three phase; 48 N.m for LXM32MC10N4 at 40 A, 400 V, three phase; 48 N.m for LXM32MC10N4 at 40 A, 480 V, three phase
Peak stall torque	101 N.m for LXM32.D72N4 at 24 A, 400 V, three phase; 101 N.m for LXM32.D72N4 at 24 A, 480 V, three phase; 115.5 N.m for LXM32MD85N4 at 32 A, 400 V, three phase; 115.5 N.m for LXM32MD85N4 at 32 A, 480 V, three phase; 130.7 N.m for LXM32MC10N4 at 40 A, 400 V, three phase; 130.7 N.m for LXM32MC10N4 at 40 A, 480 V, three phase
Nominal output power	5900 W for LXM32.D72N4 at 24 A, 400 V, three phase; 5900 W for LXM32.D72N4 at 24 A, 480 V, three phase; 6070 W for LXM32MD85N4 at 32 A, 400 V, three phase; 6070 W for LXM32MD85N4 at 32 A, 480 V, three phase; 6070 W for LXM32MC10N4 at 40 A, 400 V, three phase; 6070 W for LXM32MC10N4 at 40 A, 480 V, three phase
Nominal torque	22.3 N.m for LXM32.D72N4 at 24 A, 400 V, three phase; 22.3 N.m for LXM32.D72N4 at 24 A, 480 V, three phase; 29 N.m for LXM32MD85N4 at 32 A, 400 V, three phase; 29 N.m for LXM32MD85N4 at 32 A, 480 V, three phase; 29 N.m for LXM32MC10N4 at 40 A, 400 V, three phase; 29 N.m for LXM32MC10N4 at 40 A, 480 V, three phase
Nominal speed	2000 rpm for LXM32MC10N4 at 40 A, 400 V, three phase; 2000 rpm for LXM32MC10N4 at 40 A, 480 V, three phase; 2500 rpm for LXM32.D72N4 at 24 A, 400 V, three phase; 2500 rpm for LXM32.D72N4 at 24 A, 480 V, three phase; 2000 rpm for LXM32MD85N4 at 32 A, 400 V, three phase; 2000 rpm for LXM32MD85N4 at 32 A, 480 V, three phase
Product compatibility	LXM32.D72N4 at 400...480 V three phase
Shaft end	Smooth shaft
IP degree of protection	IP65 standard; IP67 with IP67 kit
Speed feedback resolution	131072 points/turn
Holding brake	With
Mounting support	International standard flange
Electrical connection	Rotatable right-angled connectors

Complementary

Range compatibility	Lexium 32
[Us] rated supply voltage	480 V
Network number of phases	Three phase
Continuous stall current	30.8 A
Continuous power	6.1 W
Maximum current Irms	113.95 A for LXM32.D72N4
Maximum permanent current	114 A
Second shaft	Without second shaft end
Shaft diameter	38 mm
Shaft length	80 mm
Feedback type	Single turn SinCos Hiperface
Holding torque	80 N.m holding brake
Motor flange size	190 mm
Number of motor stacks	2
Torque constant	1.56 N.m/A at 120 °C
Back emf constant	108.3 V/krpm at 120 °C
Number of motor poles	5.0
Rotor inertia	144.8 kg.cm²
Stator resistance	0.15 Ohm at 20 °C
Stator inductance	1.93 mH at 20 °C
Stator electrical time constant	25.7 ms at 20 °C
Maximum radial force Fr	4200 N at 1000 rpm
Maximum axial force Fa	0.2 x Fr
Brake pull-in power	40 W
Type of cooling	Natural convection
Length	310 mm
Centring collar diameter	180 mm
Centring collar depth	4 mm
Number of mounting holes	4
Mounting holes diameter	14 mm
Circle diameter of the mounting holes	215 mm
Net weight	32.5 kg
Sizing reference	BMH1902P
Network number of phases	3
Accuracy error [angular]	1.4 °
Temperature copper hot	135 °C
Temperature magnet hot	100 °C
Temperature magnet rt	20 °C
Output current 3s peak	113.95 A
Inertia	14.7 kg.cm² of brake; 130.1 kg.cm² of motor
