Schneider Electric BMH1403P22F2A

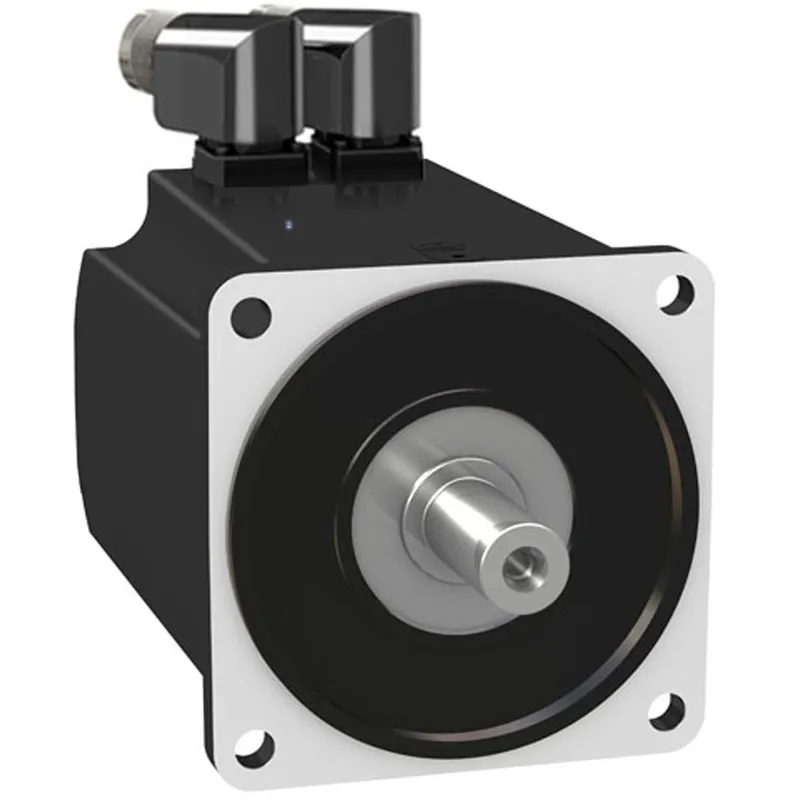

Servo motor BMH - 24 Nm - 4000 rpm - untapped shaft - with brake - IP65/IP67

MPN
BMH1403P22F2A
EAN
3606485208121
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMH1403P22F2A?

"This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors." "This is a servo motor that features a maximum mechanical speed of 4000RPM, an untapped shaft end, with a holding brake." "It is equipped with a multi-turn encoder type SinCos Hiperface." "It has two rotatable right-angle connectors dedicated to power and encoder cables." "It has a rated supply voltage of 480V, a continuous stall current of 18A, a continuous power of 4.8W, and a continuous stall torque of 24Nm." "Shaft end is IP65 rated, and IP67 with an IP67kit." "The motor flange size is 140mm, fixed by 4x 11mm holes. The circle diameter of the mounting holes is 165mm. It weighs 18.5kg." "This servo motor is designed for Lexium 32 drives." "It is certified by UL." "It is compatible with LXM32AD72N4, LXM32SD72N4, LXM32MD72N4, and LXM32CD72N4 servo drives." "its mounting support is an international standard flange." "The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price." "Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance." PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Device short nameBMH
Product or component typeServo motor
Maximum mechanical speed4000 rpm
Continuous stall torque24 N.m for LXM32.D72N4 at 24 A, 400 V, three phase; 24 N.m for LXM32.D72N4 at 24 A, 480 V, three phase
Peak stall torque71.8 N.m for LXM32.D72N4 at 24 A, 400 V, three phase; 71.8 N.m for LXM32.D72N4 at 24 A, 480 V, three phase
Nominal output power4700 W for LXM32.D72N4 at 24 A, 400 V, three phase; 4700 W for LXM32.D72N4 at 24 A, 480 V, three phase
Nominal torque13.92 N.m for LXM32.D72N4 at 24 A, 400 V, three phase; 13.92 N.m for LXM32.D72N4 at 24 A, 480 V, three phase
Nominal speed3000 rpm for LXM32.D72N4 at 24 A, 400 V, three phase; 3000 rpm for LXM32.D72N4 at 24 A, 480 V, three phase
Product compatibilityLXM32.D72N4 at 400...480 V three phase
Shaft endSmooth shaft
IP degree of protectionIP65 standard; IP67 with IP67 kit
Speed feedback resolution131072 points/turn x 4096 turns
Holding brakeWith
Mounting supportInternational standard flange
Electrical connectionRotatable right-angled connectors

Complementary

Range compatibilityLexium 32
[Us] rated supply voltage480 V
Network number of phasesThree phase
Continuous stall current18 A
Continuous power4.8 W
Maximum current Irms57.66 A for LXM32.D72N4
Maximum permanent current62.3 A
Second shaftWithout second shaft end
Shaft diameter24 mm
Shaft length50 mm
Feedback typeMultiturn SinCos Hiperface
Holding torque23 N.m holding brake
Motor flange size140 mm
Number of motor stacks3
Torque constant1.3 N.m/A at 120 °C
Back emf constant85.9 V/krpm at 120 °C
Number of motor poles5.0
Rotor inertia50.27 kg.cm²
Stator resistance0.22 Ohm at 20 °C
Stator inductance2.165 mH at 20 °C
Stator electrical time constant13.6 ms at 20 °C
Maximum radial force Fr2420 N at 1000 rpm; 1920 N at 2000 rpm; 1680 N at 3000 rpm
Maximum axial force Fa0.2 x Fr
Brake pull-in power19 W
Type of coolingNatural convection
Length267 mm
Centring collar diameter130 mm
Centring collar depth3.5 mm
Number of mounting holes4
Mounting holes diameter11 mm
Circle diameter of the mounting holes165 mm
Net weight18.5 kg
Sizing referenceBMH1403P
Network number of phases3
Accuracy error [angular]1.4 °
Temperature copper hot135 °C
Temperature magnet hot100 °C
Temperature magnet rt20 °C
Output current 3s peak57.66 A
Inertia2.73 kg.cm² of brake; 47.543 kg.cm² of motor

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

BMH1403P22F2A: frequently asked questions

When can BMH1403P22F2A be shipped?

BMH1403P22F2A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BMH1403P22F2A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BMH1403P22F2A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMH1403P22F2A, subject to availability and destination.
