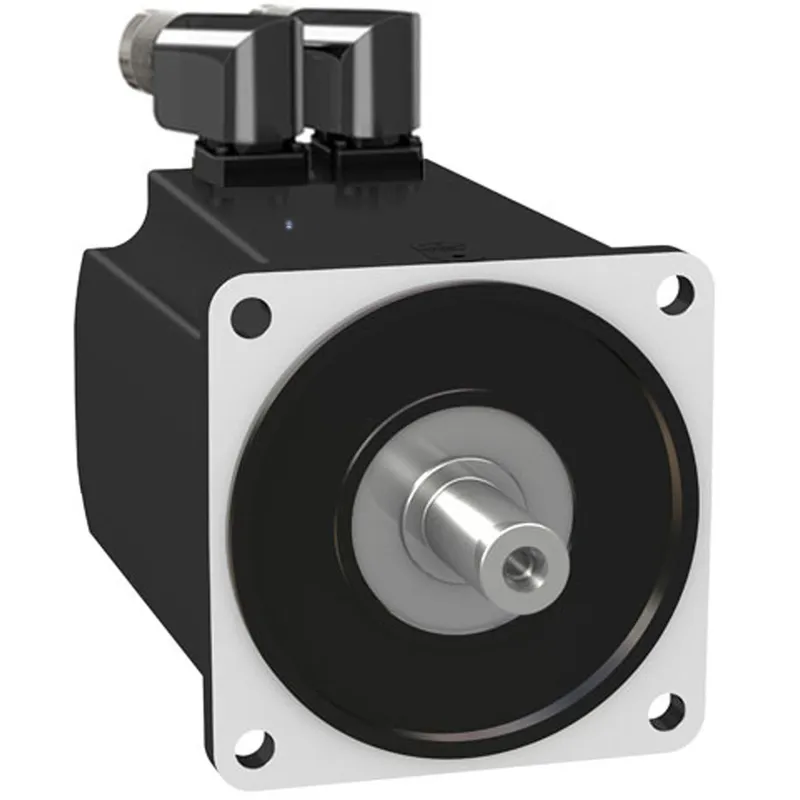

Schneider Electric BMH1403P17A2A – servo motor BMH - 24 Nm - 4000 rpm - keyed shaft - without brake - IP54

Name: Schneider Electric BMH1403P17A2A – servo motor BMH - 24 Nm - 4000 rpm - keyed shaft - without brake - IP54
Brand: Schneider Electric
SKU: BMH1403P17A2A

MPN: BMH1403P17A2A · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original BMH1403P17A2A (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lexium 32 & Motors
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3606485208398
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the BMH1403P17A2A now that it is discontinued?

Yes. Schneider Electric has discontinued the BMH1403P17A2A, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can BMH1403P17A2A be shipped?

BMH1403P17A2A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BMH1403P17A2A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BMH1403P17A2A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMH1403P17A2A, subject to availability and destination.

"This product is part of the Lexium 32 range, an offer of servo drives from 0.15kW to 11kW and associated servo motors." "This servo motor has a maximum mechanical speed of 4000RPM, a continuous stall torque of 24Nm, a keyed shaft end, and no holding brake." "It is equipped with a Multi-turn SinCos Hiperface® feedback with 32768points/turn x 4096turns speed feedback resolution." "It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 18A and a continuous power of 4.8W." "The shaft dimensions are 24mm (diameter) x 50mm (length)." "It is furnished 2x rotatable right-angled connectors for power and encoder connections. It is an IP54 standard rated product (shaft and housing)." "It measures 232mm long without holding break, 267mm long with holding break, 179.5mm high, and its flange size is 140mm. It weighs 16.0kg." "BMH servo motors associated with the Lexium 32 servo drive are intended for applications such as Packaging, Textile, gantry cranes, Hoists." "Lexium BMH servo motors conform to international standards IEC/EN 61800-5-1, IEC/EN 61800-3, are UL and CSA certified, and CE marked." "This motor is designed to be compatible with Lexium 32 servo drive, encoder and power cables, optional IP67 conformity kit, gearbox option and braking resistor." "It installs on 4x holes (11mm diameter), the circle diameter of the mounting holes is 165mm." "Lexium 32 is a servo drive range providing drive and motor combination that has exactly the right power, performance and functionality." "The Lexium 32 range includes four servo drive models with power ratings from 0.15kW to 11kW, and two servo motor ranges, BMH and BSH series." Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Device short name	BMH
Product or component type	Servo motor
Maximum mechanical speed	4000 rpm
Continuous stall torque	24 N.m for LXM32.D72N4 at 24 A, 400 V, three phase; 24 N.m for LXM32.D72N4 at 24 A, 480 V, three phase
Peak stall torque	71.8 N.m for LXM32.D72N4 at 24 A, 400 V, three phase; 71.8 N.m for LXM32.D72N4 at 24 A, 480 V, three phase
Nominal output power	4700 W for LXM32.D72N4 at 24 A, 400 V, three phase; 4700 W for LXM32.D72N4 at 24 A, 480 V, three phase
Nominal torque	13.92 N.m for LXM32.D72N4 at 24 A, 400 V, three phase; 13.92 N.m for LXM32.D72N4 at 24 A, 480 V, three phase
Nominal speed	3000 rpm for LXM32.D72N4 at 24 A, 400 V, three phase; 3000 rpm for LXM32.D72N4 at 24 A, 480 V, three phase
Product compatibility	LXM32.D72N4 at 400...480 V three phase
Shaft end	Keyed
IP degree of protection	IP54 standard
Speed feedback resolution	32768 points/turn x 4096 turns
Holding brake	Without
Mounting support	International standard flange
Electrical connection	Rotatable right-angled connectors

Complementary

Range compatibility	Lexium 32
[Us] rated supply voltage	480 V
Network number of phases	Three phase
Continuous stall current	18 A
Continuous power	4.8 W
Maximum current Irms	57.66 A for LXM32.D72N4
Maximum permanent current	62.3 A
Second shaft	Without second shaft end
Shaft diameter	24 mm
Shaft length	50 mm
Key width	40 mm
Feedback type	Multiturn SinCos Hiperface
Motor flange size	140 mm
Number of motor stacks	3
Torque constant	1.3 N.m/A at 120 °C
Back emf constant	85.9 V/krpm at 120 °C
Number of motor poles	5.0
Rotor inertia	47.5 kg.cm²
Stator resistance	0.22 Ohm at 20 °C
Stator inductance	2.165 mH at 20 °C
Stator electrical time constant	13.6 ms at 20 °C
Maximum radial force Fr	2420 N at 1000 rpm; 1920 N at 2000 rpm; 1680 N at 3000 rpm
Maximum axial force Fa	0.2 x Fr
Type of cooling	Natural convection
Length	232 mm
Centring collar diameter	130 mm
Centring collar depth	3.5 mm
Number of mounting holes	4
Mounting holes diameter	11 mm
Circle diameter of the mounting holes	165 mm
Net weight	16 kg
Sizing reference	BMH1403P
Network number of phases	3
Accuracy error [angular]	4.8 °
Temperature copper hot	135 °C
Temperature magnet hot	100 °C
Temperature magnet rt	20 °C
Output current 3s peak	57.66 A
Inertia	0.0 kg.cm² of brake; 47.543 kg.cm² of motor
