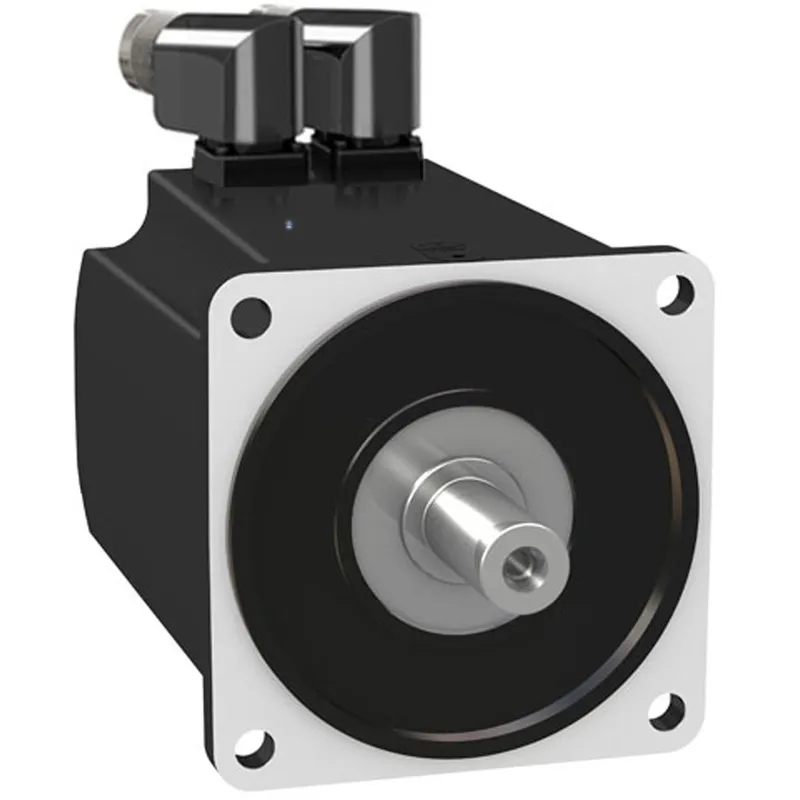

Servo motor BMH - 24 Nm - 4000 rpm - untapped shaft - without brake - IP54
Servo motor BMH - 24 Nm - 4000 rpm - keyed shaft - without brake - IP54
Discontinued by Schneider Electric — we can still source the original BMH1403P12A2A (new, used or refurbished, subject to availability). Request a quote below.
This product is part of the Lexium 32 range, an offer of servo drives paired with motors for motion control. This synchronous motor has a maximum mechanical speed of 4000RPM, a parallel key, an IP54-rated shaft, an IP65-rated housing, and no holding brake. It is equipped with an absolute multi-turn encoder, 128 sinusoidal periods per turn. This servo motor is suitable for high-efficiency applications. Its output power is 480V, its continuous stall current is 18A, and its continuous power is 4.8W. It is furnished with two rotatable right-angled connectors, 28mm in diameter for the motor connector and 26mm for the encoder connector. Its flange is 140x140mm, and it is a 3-stack length, and it weighs 16kg. This servo motor is suitable for motion and speed applications required in printing, packaging, handling, clamping and material processing. This motor is certified by EN 61800-5-1 2007, EN 60034-1 201O, AC 2010 standards, and conforms to UL. It is compatible with Lexium 32 servo drives type LXM32nD72N4 and pre-assembled cables with connectors, type VW3M5nnnn. It is sold individually. It supports the international standard 140mm flange mount with a natural convection cooling system. Lexium 32 is a range that pairs drives and motors to deliver the right power, performance, and functions in motion control solutions. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
| Device short name | BMH |
| Product or component type | Servo motor |
| Maximum mechanical speed | 4000 rpm |
| Continuous stall torque | 24 N.m for LXM32.D72N4 at 24 A, 400 V, three phase; 24 N.m for LXM32.D72N4 at 24 A, 480 V, three phase |
| Peak stall torque | 71.8 N.m for LXM32.D72N4 at 24 A, 400 V, three phase; 71.8 N.m for LXM32.D72N4 at 24 A, 480 V, three phase |
| Nominal output power | 4700 W for LXM32.D72N4 at 24 A, 400 V, three phase; 4700 W for LXM32.D72N4 at 24 A, 480 V, three phase |
| Nominal torque | 13.92 N.m for LXM32.D72N4 at 24 A, 400 V, three phase; 13.92 N.m for LXM32.D72N4 at 24 A, 480 V, three phase |
| Nominal speed | 3000 rpm for LXM32.D72N4 at 24 A, 400 V, three phase; 3000 rpm for LXM32.D72N4 at 24 A, 480 V, three phase |
| Product compatibility | LXM32.D72N4 at 400...480 V three phase |
| Shaft end | Keyed |
| IP degree of protection | IP54 standard |
| Speed feedback resolution | 131072 points/turn x 4096 turns |
| Holding brake | Without |
| Mounting support | International standard flange |
| Electrical connection | Rotatable right-angled connectors |
| Range compatibility | Lexium 32 |
| [Us] rated supply voltage | 480 V |
| Network number of phases | Three phase |
| Continuous stall current | 18 A |
| Continuous power | 4.8 W |
| Maximum current Irms | 57.66 A for LXM32.D72N4 |
| Maximum permanent current | 62.3 A |
| Second shaft | Without second shaft end |
| Shaft diameter | 24 mm |
| Shaft length | 50 mm |
| Key width | 40 mm |
| Feedback type | Multiturn SinCos Hiperface |
| Motor flange size | 140 mm |
| Number of motor stacks | 3 |
| Torque constant | 1.3 N.m/A at 120 °C |
| Back emf constant | 85.9 V/krpm at 120 °C |
| Number of motor poles | 5.0 |
| Rotor inertia | 47.5 kg.cm² |
| Stator resistance | 0.22 Ohm at 20 °C |
| Stator inductance | 2.165 mH at 20 °C |
| Stator electrical time constant | 13.6 ms at 20 °C |
| Maximum radial force Fr | 2420 N at 1000 rpm; 1920 N at 2000 rpm; 1680 N at 3000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Type of cooling | Natural convection |
| Length | 232 mm |
| Centring collar diameter | 130 mm |
| Centring collar depth | 3.5 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 11 mm |
| Circle diameter of the mounting holes | 165 mm |
| Net weight | 16 kg |
| Sizing reference | BMH1403P |
| Network number of phases | 3 |
| Accuracy error [angular] | 1.4 ° |
| Temperature copper hot | 135 °C |
| Temperature magnet hot | 100 °C |
| Temperature magnet rt | 20 °C |
| Output current 3s peak | 57.66 A |
| Inertia | 0.0 kg.cm² of brake; 47.543 kg.cm² of motor |
