Schneider Electric BMH1403P07A1A

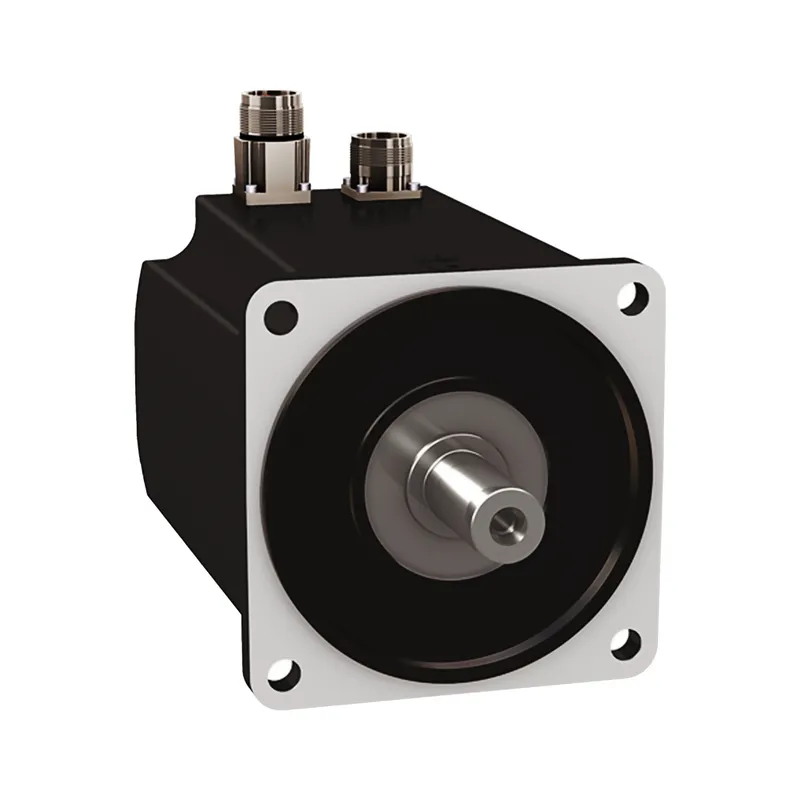

Servo motor BMH - 24 Nm - 4000 rpm - untapped shaft - without brake - IP54

MPN
BMH1403P07A1A
EAN
3606485208305
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original BMH1403P07A1A (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric BMH1403P07A1A?

Schneider Electric BMH1403P07A1A — servo motor BMH - 24 Nm - 4000 rpm - untapped shaft - without brake - IP54 (Lexium 32 & Motors). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Device short nameBMH
Product or component typeServo motor
Maximum mechanical speed4000 rpm
Continuous stall torque24 N.m for LXM32.D72N4 at 24 A, 400 V, three phase; 24 N.m for LXM32.D72N4 at 24 A, 480 V, three phase
Peak stall torque71.8 N.m for LXM32.D72N4 at 24 A, 400 V, three phase; 71.8 N.m for LXM32.D72N4 at 24 A, 480 V, three phase
Nominal output power4700 W for LXM32.D72N4 at 24 A, 400 V, three phase; 4700 W for LXM32.D72N4 at 24 A, 480 V, three phase
Nominal torque13.92 N.m for LXM32.D72N4 at 24 A, 400 V, three phase; 13.92 N.m for LXM32.D72N4 at 24 A, 480 V, three phase
Nominal speed3000 rpm for LXM32.D72N4 at 24 A, 400 V, three phase; 3000 rpm for LXM32.D72N4 at 24 A, 480 V, three phase
Product compatibilityLXM32.D72N4 at 400...480 V three phase
Shaft endSmooth shaft
IP degree of protectionIP54 standard
Speed feedback resolution32768 points/turn x 4096 turns
Holding brakeWithout
Mounting supportInternational standard flange
Electrical connectionStraight connectors

Complementary

Range compatibilityLexium 32
[Us] rated supply voltage480 V
Network number of phasesThree phase
Continuous stall current18 A
Continuous power4.8 W
Maximum current Irms62.3 A for LXM32.D72N4
Maximum permanent current62.3 A
Second shaftWithout second shaft end
Shaft diameter24 mm
Shaft length50 mm
Feedback typeMultiturn SinCos Hiperface
Motor flange size140 mm
Number of motor stacks3
Torque constant1.34 N.m/A at 120 °C
Back emf constant85.9 V/krpm at 120 °C
Number of motor poles10
Rotor inertia47.5 kg.cm²
Stator resistance0.22 Ohm at 20 °C
Stator inductance3 mH at 20 °C
Stator electrical time constant13.6 ms at 20 °C
Maximum radial force Fr2420 N at 1000 rpm; 1920 N at 2000 rpm; 1680 N at 3000 rpm
Maximum axial force Fa0.2 x Fr
Type of coolingNatural convection
Length232 mm
Centring collar diameter130 mm
Centring collar depth3.5 mm
Number of mounting holes4
Mounting holes diameter11 mm
Circle diameter of the mounting holes165 mm
Net weight16 kg
Sizing referenceBMH1403P
Network number of phases3
Accuracy error [angular]4.8 °
Temperature copper hot135 °C
Temperature magnet hot100 °C
Temperature magnet rt20 °C

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

BMH1403P07A1A: frequently asked questions

Can I still buy the BMH1403P07A1A now that it is discontinued?

Yes. Schneider Electric has discontinued the BMH1403P07A1A, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can BMH1403P07A1A be shipped?

BMH1403P07A1A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BMH1403P07A1A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BMH1403P07A1A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMH1403P07A1A, subject to availability and destination.
