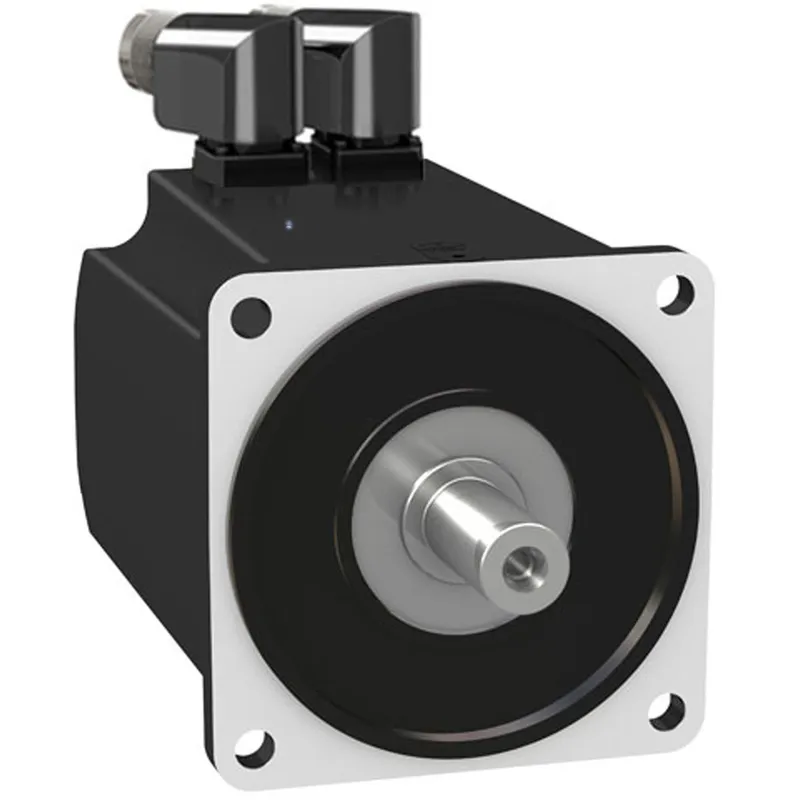

Schneider Electric BMH1401P37F2A – servo motor BMH - 10.3 Nm - 4000 rpm - keyed shaft - with brake - IP65/IP67

MPN: BMH1401P37F2A · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original BMH1401P37F2A (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Lexium 32 & Motors
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3606485198705
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the BMH1401P37F2A now that it is discontinued?

Yes. Schneider Electric has discontinued the BMH1401P37F2A, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can BMH1401P37F2A be shipped?

BMH1401P37F2A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up BMH1401P37F2A in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for BMH1401P37F2A and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMH1401P37F2A, subject to availability and destination.

This product is part of the Lexium 32 range, an offer of servo drives paired with motors for motion control. This synchronous motor has a maximum mechanical speed of 4000RPM, a parallel key, an IP65-rated shaft, an IP65-rated housing, and a holding brake. It is equipped with an absolute multi-turn encoder, 16 sinusoidal periods per turn. This servo motor is suitable for high-efficiency applications. Its output power is 480V, its continuous stall current is 8.58A, and its continuous power is 2.85W. It is furnished with two rotatable right-angled connectors, 28mm in diameter for the motor connector and 26mm for the encoder connector. Its flange is 140x140mm, and it is a 1-stack length, and it weighs 10.3kg. This servo motor is suitable for motion and speed applications required in printing, packaging, handling, clamping and material processing. This motor is certified by EN 61800-5-1 2007, EN 60034-1 201O, AC 2010 standards, and conforms to UL. It is compatible with Lexium 32 servo drives type LXM32nD30M2 and LXM32nD30N4, and pre-assembled cables with connectors, type VW3M5nnnn. It is sold individually. It supports the international standard 140mm flange mount with a natural convection cooling system. Lexium 32 is a range that pairs drives and motors to deliver the right power, performance, and functions in motion control solutions. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
