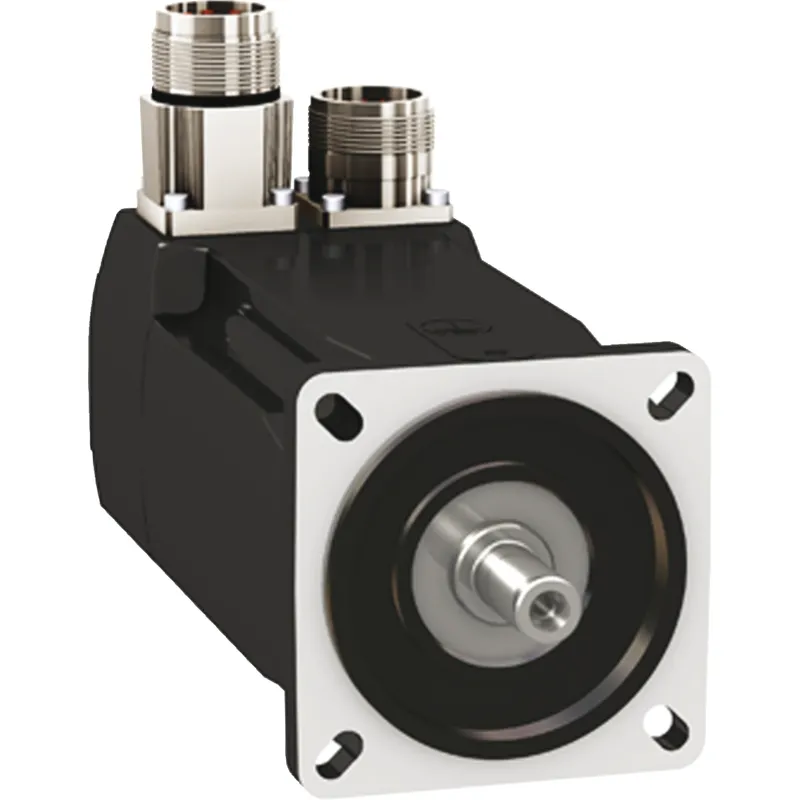

BMH0703P32F1AServo motor BMH - 3.4 Nm - 8000 rpm - keyed shaft - with brake - IP65/IP67
Schneider Electric BMH0703P36F1A
Servo motor BMH - 3.4 Nm - 8000 rpm - keyed shaft - with brake - IP65/IP67
- MPN
- BMH0703P36F1A
- EAN
- 3606485199429
- Category
- Lexium 32 & Motors
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original BMH0703P36F1A (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric BMH0703P36F1A?
Schneider Electric BMH0703P36F1A — servo motor BMH - 3.4 Nm - 8000 rpm - keyed shaft - with brake - IP65/IP67 (Lexium 32 & Motors). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Device short name | BMH |
| Product or component type | Servo motor |
| Maximum mechanical speed | 8000 rpm |
| Continuous stall torque | 3.4 N.m for LXM32.D18N4 at 6 A, 400 V, three phase; 3.4 N.m for LXM32.D18N4 at 6 A, 480 V, three phase |
| Peak stall torque | 10.2 N.m for LXM32.D18N4 at 6 A, 400 V, three phase; 10.2 N.m for LXM32.D18N4 at 6 A, 480 V, three phase |
| Nominal output power | 1300 W for LXM32.D18N4 at 6 A, 400 V, three phase; 1300 W for LXM32.D18N4 at 6 A, 480 V, three phase |
| Nominal torque | 2.4 N.m for LXM32.D18N4 at 6 A, 400 V, three phase; 2.4 N.m for LXM32.D18N4 at 6 A, 480 V, three phase |
| Nominal speed | 5000 rpm for LXM32.D18N4 at 6 A, 400 V, three phase; 5000 rpm for LXM32.D18N4 at 6 A, 480 V, three phase |
| Product compatibility | LXM32.D18N4 at 400...480 V three phase |
| Shaft end | Keyed |
| IP degree of protection | IP65 standard; IP67 with IP67 kit |
| Speed feedback resolution | 32768 points/turn |
| Holding brake | With |
| Mounting support | International standard flange |
| Electrical connection | Straight connectors |
Complementary
| Range compatibility | Lexium 32 |
| [Us] rated supply voltage | 480 V |
| Network number of phases | Three phase |
| Continuous stall current | 3.91 A |
| Continuous power | 1.68 W |
| Maximum current Irms | 12.6 A for LXM32.D18N4 |
| Maximum permanent current | 12.57 A |
| Second shaft | Without second shaft end |
| Shaft diameter | 14 mm |
| Shaft length | 30 mm |
| Key width | 20 mm |
| Feedback type | Single turn SinCos Hiperface |
| Holding torque | 3 N.m holding brake |
| Motor flange size | 70 mm |
| Number of motor stacks | 3 |
| Torque constant | 0.87 N.m/A at 120 °C |
| Back emf constant | 55.8 V/krpm at 120 °C |
| Number of motor poles | 10 |
| Rotor inertia | 1.78 kg.cm² |
| Stator resistance | 2.65 Ohm at 20 °C |
| Stator inductance | 8.6 mH at 20 °C |
| Stator electrical time constant | 3.2 ms at 20 °C |
| Maximum radial force Fr | 730 N at 1000 rpm; 580 N at 2000 rpm; 510 N at 3000 rpm; 460 N at 4000 rpm; 430 N at 5000 rpm; 400 N at 6000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Brake pull-in power | 7 W |
| Type of cooling | Natural convection |
| Length | 225 mm |
| Centring collar diameter | 60 mm |
| Centring collar depth | 2.5 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 5.5 mm |
| Circle diameter of the mounting holes | 82 mm |
| Net weight | 4 kg |
| Sizing reference | BMH0703P |
| Network number of phases | 3 |
| Accuracy error [angular] | 4.8 ° |
| Temperature copper hot | 135 °C |
| Temperature magnet hot | 100 °C |
| Temperature magnet rt | 20 °C |
