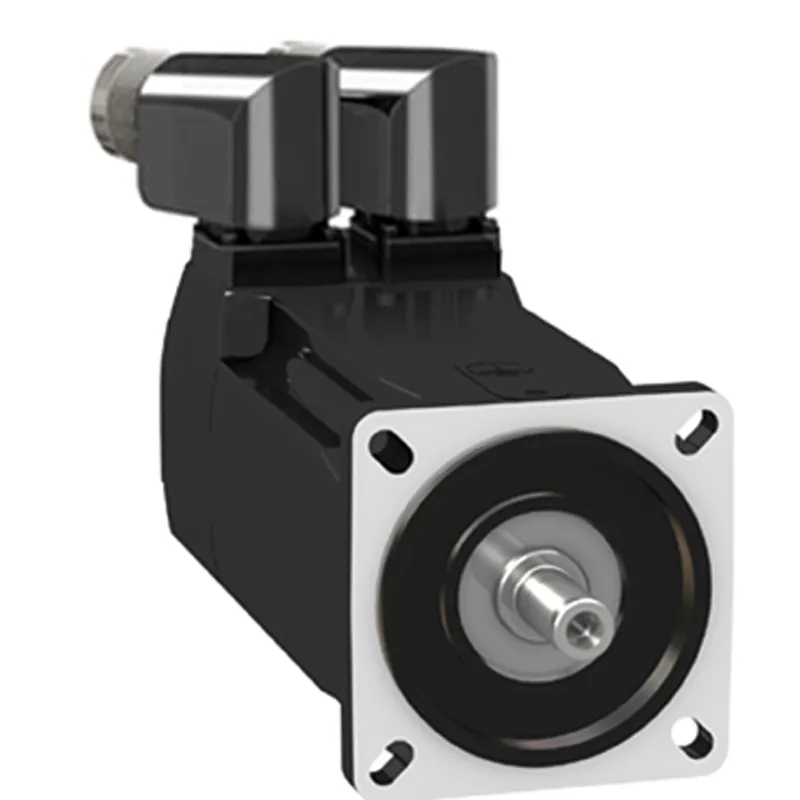

BMH0703P11F2AServo motor BMH - 3.4 Nm - 8000 rpm - keyed shaft - with brake - IP54
Schneider Electric BMH0703P12F2A
Servo motor BMH - 3.4 Nm - 8000 rpm - keyed shaft - with brake - IP54
- MPN
- BMH0703P12F2A
- EAN
- 3606485199320
- Category
- Lexium 32 & Motors
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original BMH0703P12F2A (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric BMH0703P12F2A?
This product is part of the Lexium 32 range, an offer of servo motors from 0.15kW to 11kW. The 10-pole servo motor features maximum mechanical speed of 8000RPM and keyed shaft end with holding brake. It is an equipped with a multi-turn SinCos Hiperface® feedback with 1,31,072 points/turn x 4096 turns speed feedback resolution. It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 3.91A and a continuous power of 1.68W. The shaft dimensions are 14mm (diameter) x 30mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP54 rated product. The length of this product is 225mm and the centering collar dimensions are 2.5mm (depth) x 60mm (diameter) with 82mm mounting hole. It weighs 4kg. This range is compatible with Lexium 32 servo drives. This product is compatible with LXM32.D18N4 at 400V to 480V three phase. It supports 70mm international standard flange mount with a natural convection cooling system. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Device short name | BMH |
| Product or component type | Servo motor |
| Maximum mechanical speed | 8000 rpm |
| Continuous stall torque | 3.4 N.m for LXM32.D18N4 at 6 A, 400 V, three phase; 3.4 N.m for LXM32.D18N4 at 6 A, 480 V, three phase |
| Peak stall torque | 10.2 N.m for LXM32.D18N4 at 6 A, 400 V, three phase; 10.2 N.m for LXM32.D18N4 at 6 A, 480 V, three phase |
| Nominal output power | 1300 W for LXM32.D18N4 at 6 A, 400 V, three phase; 1300 W for LXM32.D18N4 at 6 A, 480 V, three phase |
| Nominal torque | 2.4 N.m for LXM32.D18N4 at 6 A, 400 V, three phase; 2.4 N.m for LXM32.D18N4 at 6 A, 480 V, three phase |
| Nominal speed | 5000 rpm for LXM32.D18N4 at 6 A, 400 V, three phase; 5000 rpm for LXM32.D18N4 at 6 A, 480 V, three phase |
| Product compatibility | LXM32.D18N4 at 400...480 V three phase |
| Shaft end | Keyed |
| IP degree of protection | IP54 standard |
| Speed feedback resolution | 131072 points/turn x 4096 turns |
| Holding brake | With |
| Mounting support | International standard flange |
| Electrical connection | Rotatable right-angled connectors |
Complementary
| Range compatibility | Lexium 32 |
| [Us] rated supply voltage | 480 V |
| Network number of phases | Three phase |
| Continuous stall current | 3.91 A |
| Continuous power | 1.68 W |
| Maximum current Irms | 12.57 A for LXM32.D18N4 |
| Maximum permanent current | 12.57 A |
| Second shaft | Without second shaft end |
| Shaft diameter | 14 mm |
| Shaft length | 30 mm |
| Key width | 20 mm |
| Feedback type | Multiturn SinCos Hiperface |
| Holding torque | 3 N.m holding brake |
| Motor flange size | 70 mm |
| Number of motor stacks | 3 |
| Torque constant | 0.87 N.m/A at 120 °C |
| Back emf constant | 55.8 V/krpm at 120 °C |
| Number of motor poles | 5.0 |
| Rotor inertia | 1.78 kg.cm² |
| Stator resistance | 2.65 Ohm at 20 °C |
| Stator inductance | 4.175 mH at 20 °C |
| Stator electrical time constant | 3.2 ms at 20 °C |
| Maximum radial force Fr | 730 N at 1000 rpm; 580 N at 2000 rpm; 510 N at 3000 rpm; 460 N at 4000 rpm; 430 N at 5000 rpm; 400 N at 6000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Brake pull-in power | 7 W |
| Type of cooling | Natural convection |
| Length | 225 mm |
| Centring collar diameter | 60 mm |
| Centring collar depth | 2.5 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 5.5 mm |
| Circle diameter of the mounting holes | 82 mm |
| Net weight | 4 kg |
| Sizing reference | BMH0703P |
| Network number of phases | 3 |
| Accuracy error [angular] | 1.4 ° |
| Temperature copper hot | 135 °C |
| Temperature magnet hot | 100 °C |
| Temperature magnet rt | 20 °C |
| Output current 3s peak | 12.57 A |
| Inertia | 0.11 kg.cm² of brake; 1.674 kg.cm² of motor |
